Rear Bumper: Disassembly: Disassembly

REMOVE NO. 2 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)
1. Disengage the 4 clamps.

  Fig 1: Identifying No. 2 Luggage Room Wire Clamps (w/ Intuitive Parking Assist System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the No. 2 luggage room wire.
REMOVE ULTRASONIC SENSOR CLIP (w/ Intuitive Parking Assist System) . Refer to REMOVAL - Step 2 .
REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) . Refer to REMOVAL - Step 3 .
REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) . Refer to REMOVAL - Step 4 .
REMOVE REAR BUMPER SIDE RETAINER LH
1. Remove the 3 screws.

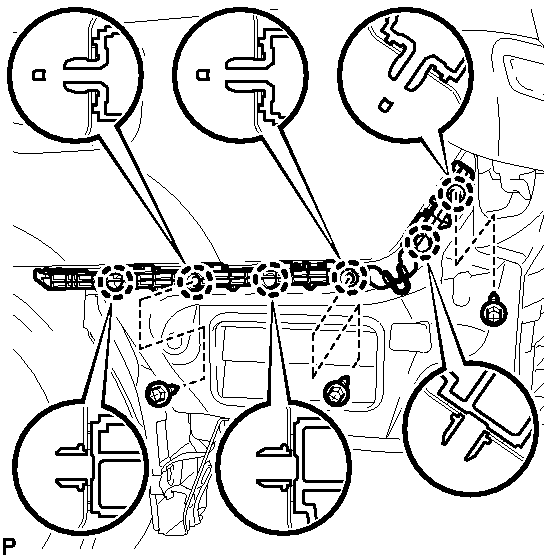

  Fig 2: Identifying Rear Bumper Side Retainer LH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 6 claws and remove the rear bumper side retainer LH.
REMOVE REAR BUMPER SIDE RETAINER RH
HINT:

Use the same procedure as for the LH side.
REMOVE WHEEL HOUSE REINFORCEMENT LH
1. Disengage the clip.
2. Remove the screw.

  Fig 3: Identifying Wheel House Reinforcement LH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut and wheel house reinforcement LH.
REMOVE WHEEL HOUSE REINFORCEMENT RH
HINT:

Use the same procedure as for the LH side.
REMOVE REAR BUMPER ENERGY ABSORBER
1. Disengage the 2 guides and remove the rear bumper energy absorber.

  Fig 4: Locating Rear Bumper Energy Absorber Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
1. Remove the 6 nuts and rear bumper reinforcement sub-assembly.

  Fig 5: Identifying Rear Bumper Reinforcement Sub-Assembly Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
