Rear Bumper: Components: Illustration

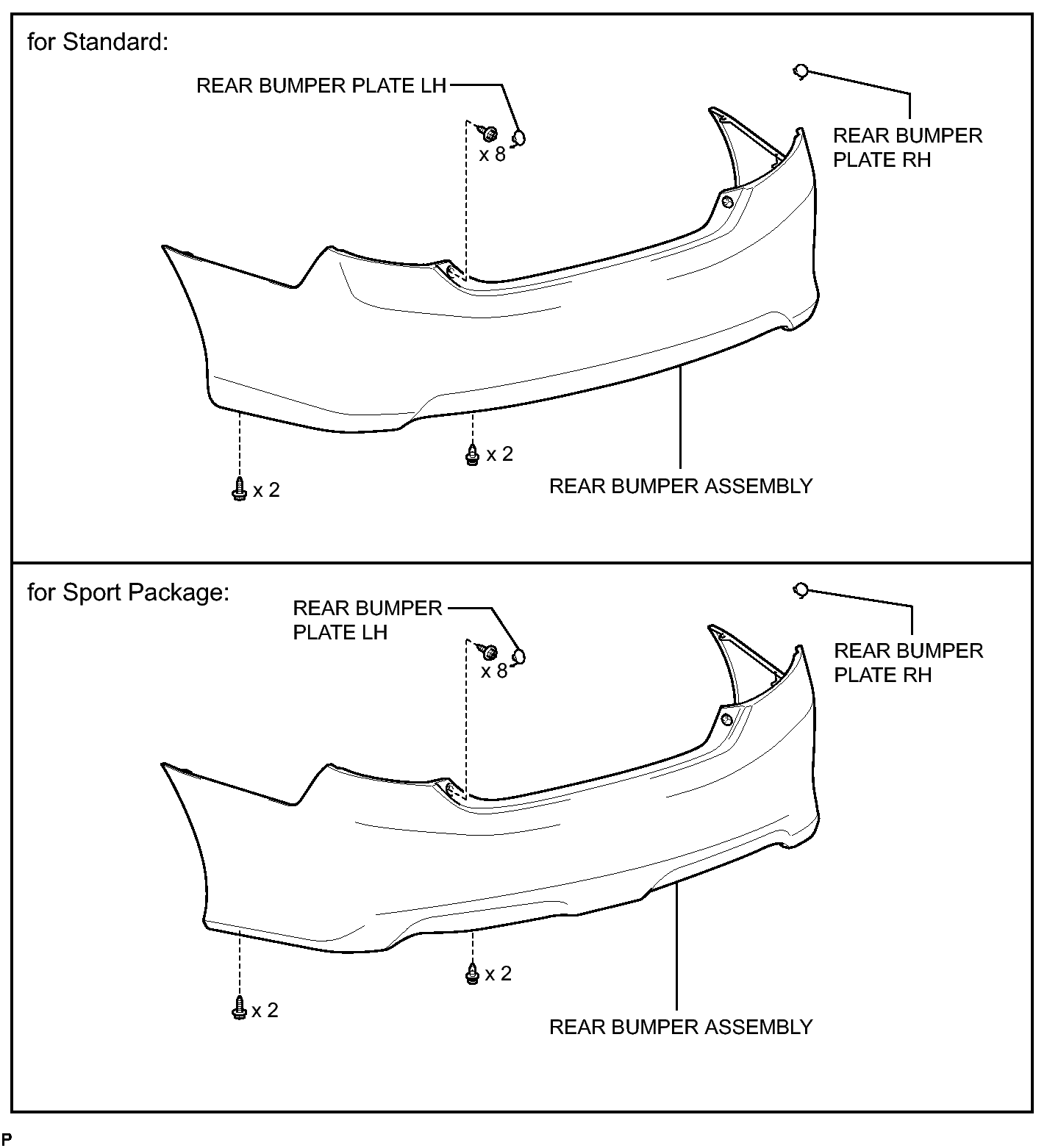

Fig 1: Identifying Rear Bumper Replacement Components (1 Of 3)
GTY321284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

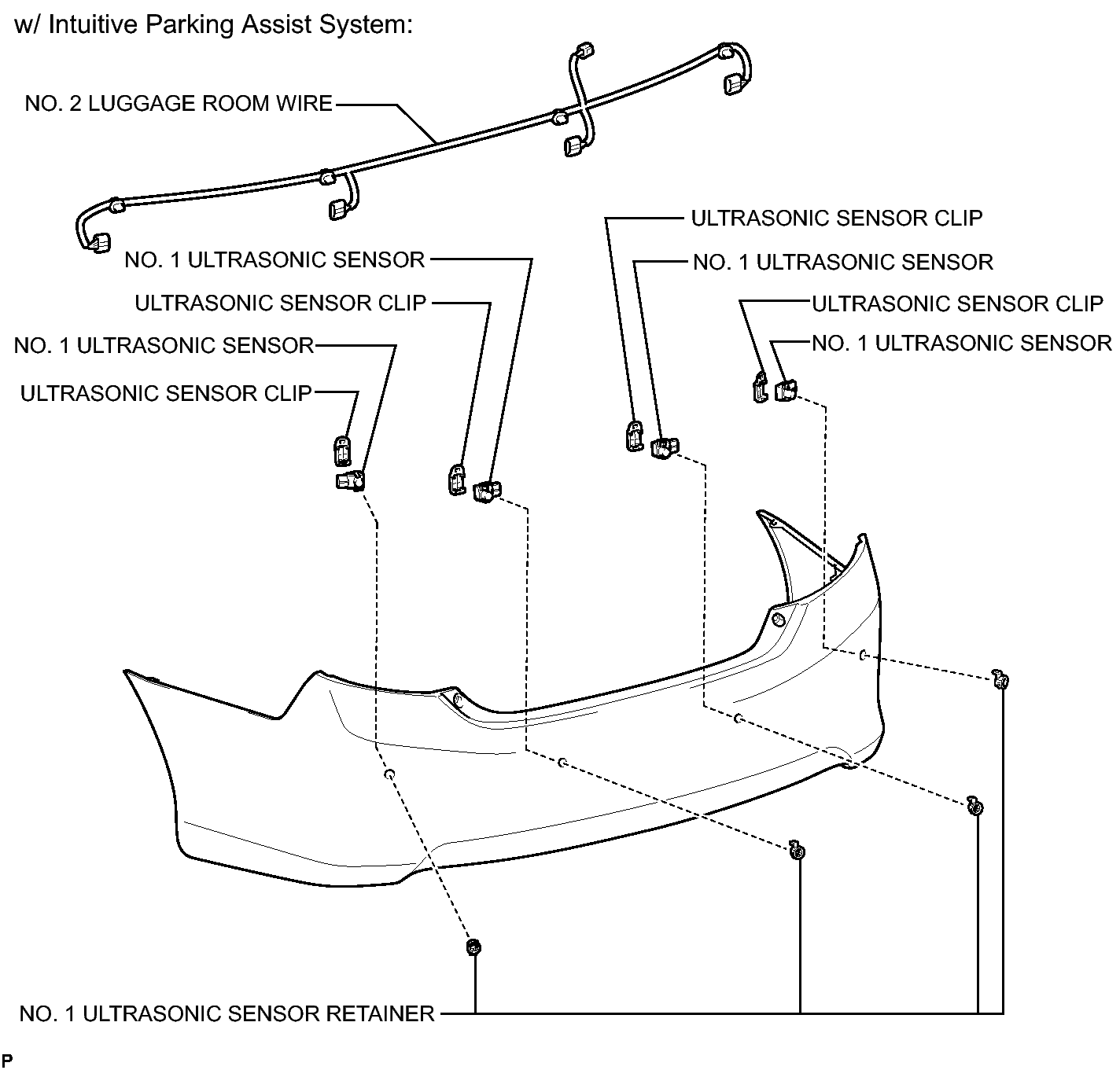

Fig 1: Identifying Rear Bumper Replacement Components (2 Of 3)
GTY319900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

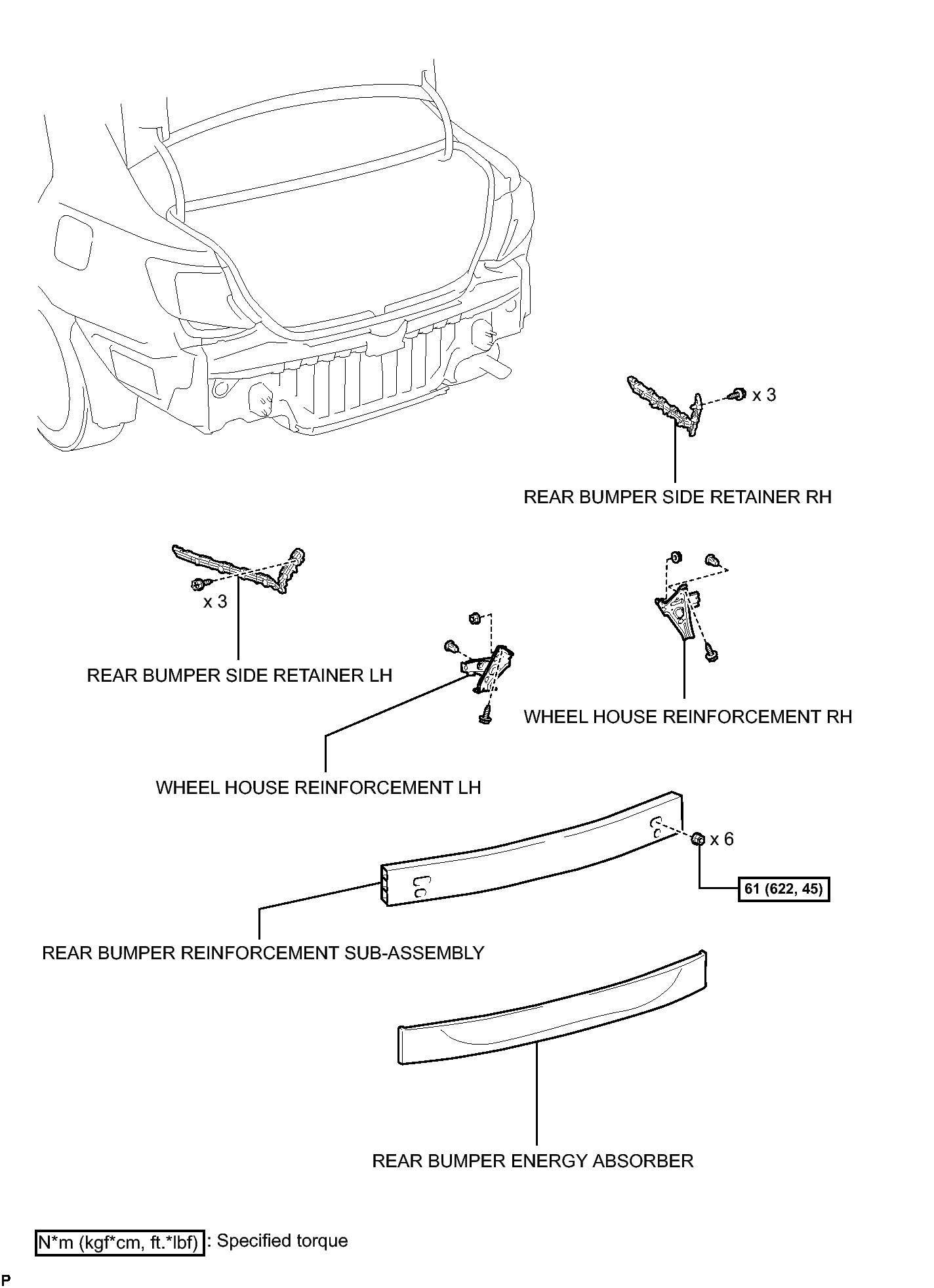

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (3 Of 3)
GTY318389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
