Front Door Window Frame Moulding: Components: Illustration

Fig 1: Identifying Front Door Window Frame Moulding Replacement Components With Torque Specifications (1 Of 2)
GTY319305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

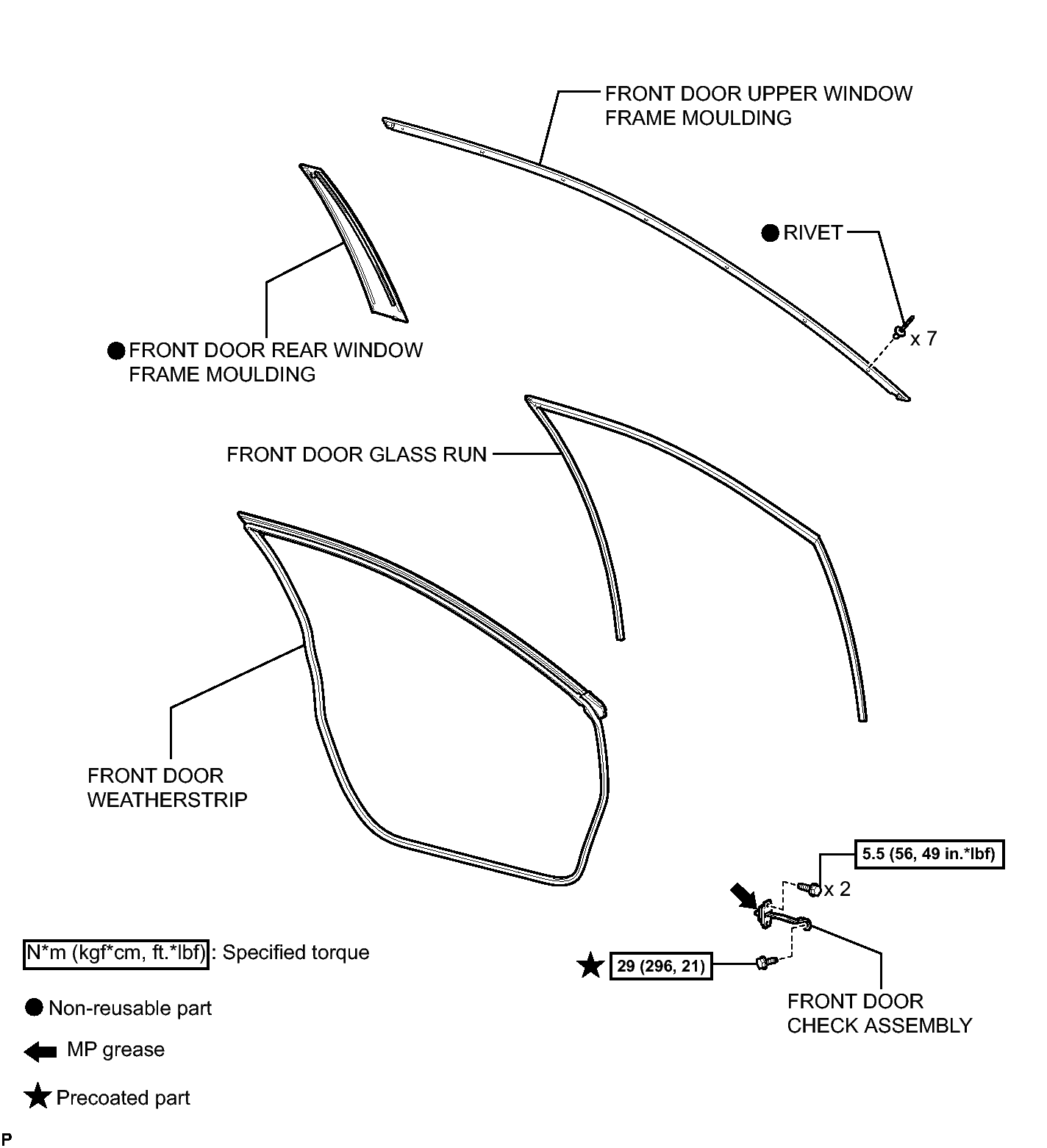

Fig 1: Identifying Front Door Window Frame Moulding Replacement Components With Torque Specifications (2 Of 2)
GTY319056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
