Front Bumper: Components: Illustration

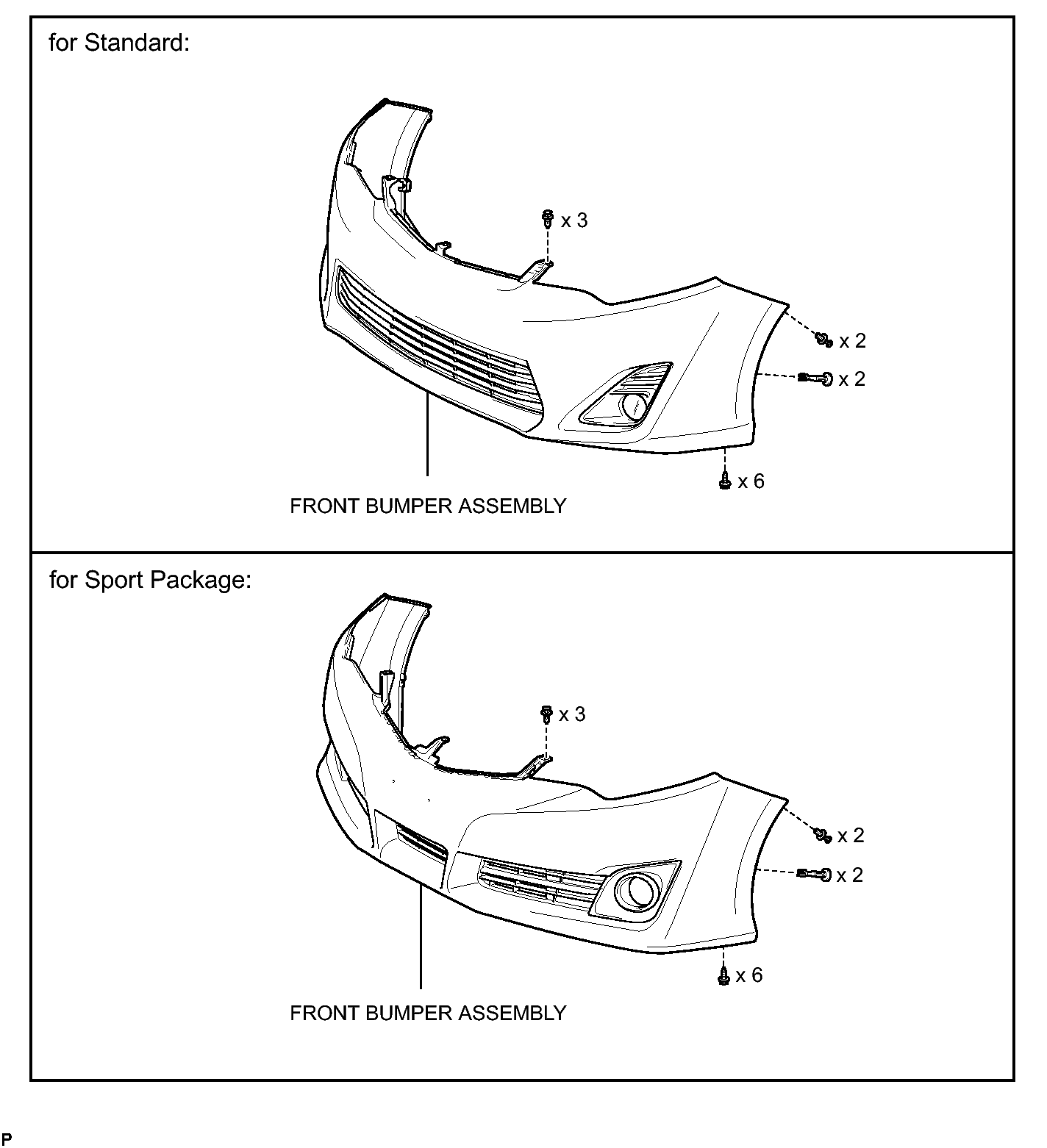

Fig 1: Identifying Front Bumper Replacement Components (1 Of 5)
GTY320132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

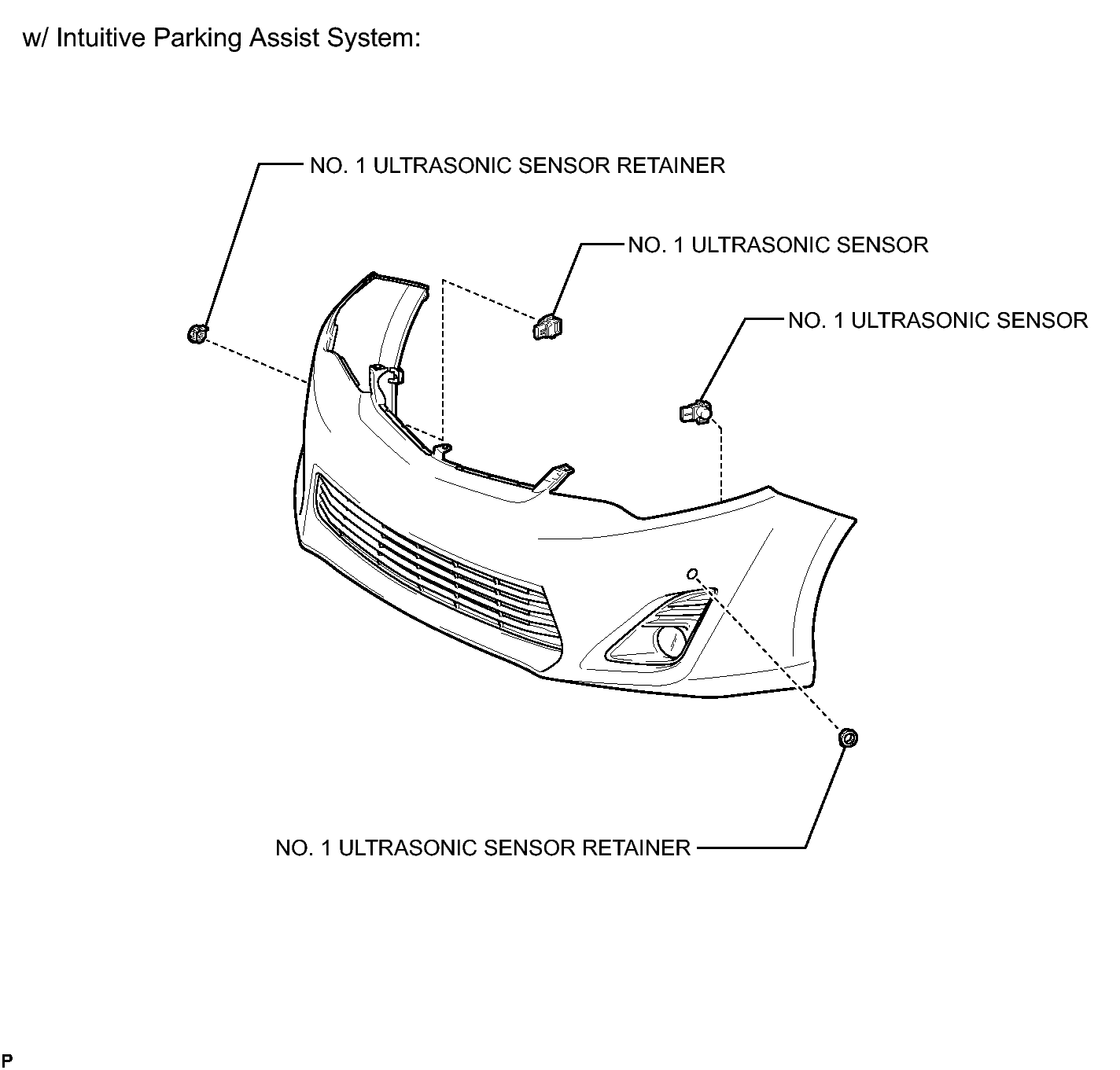

Fig 1: Identifying Front Bumper Replacement Components (2 Of 5)
GTY317099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

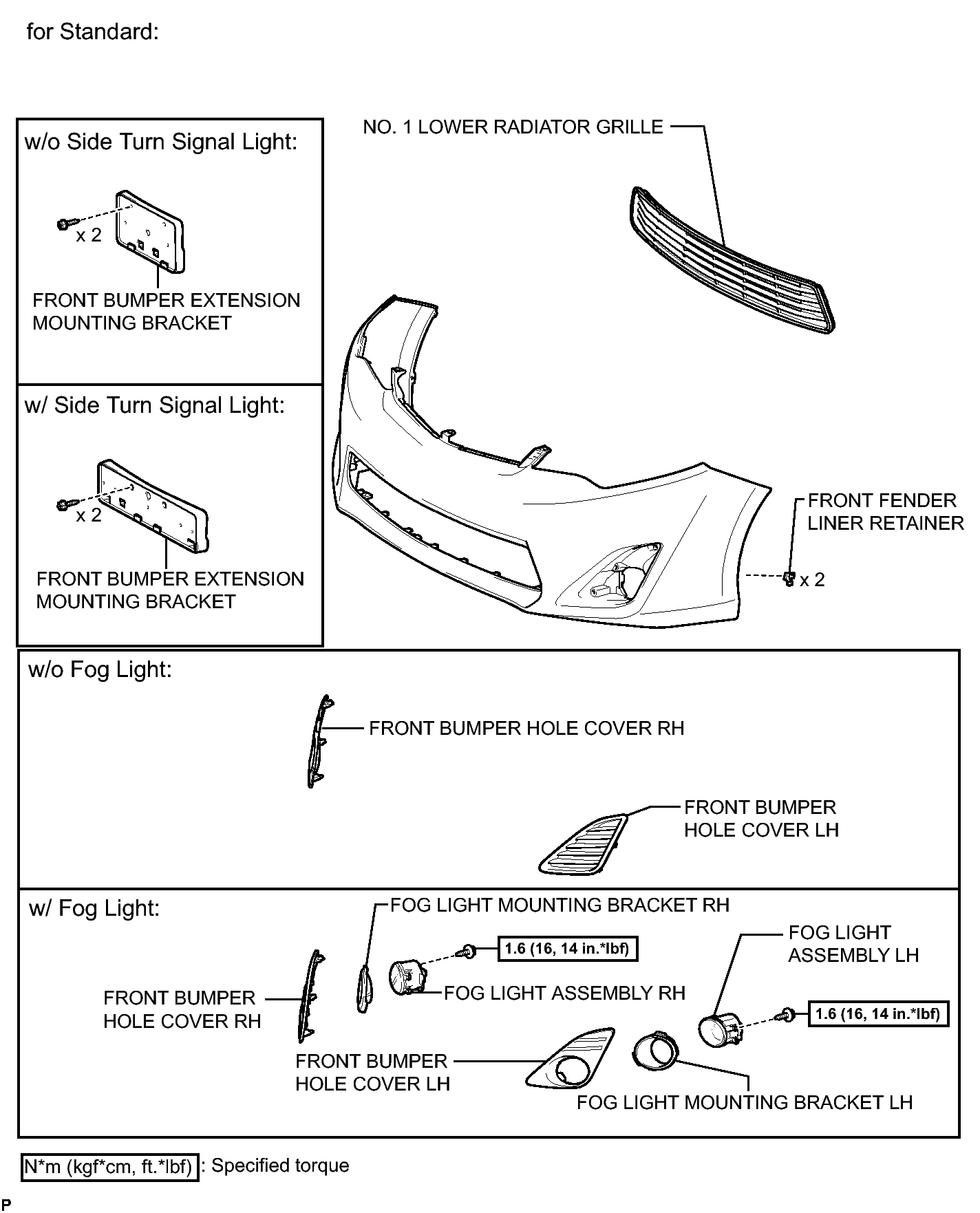

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (3 Of 5)
GTY321627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

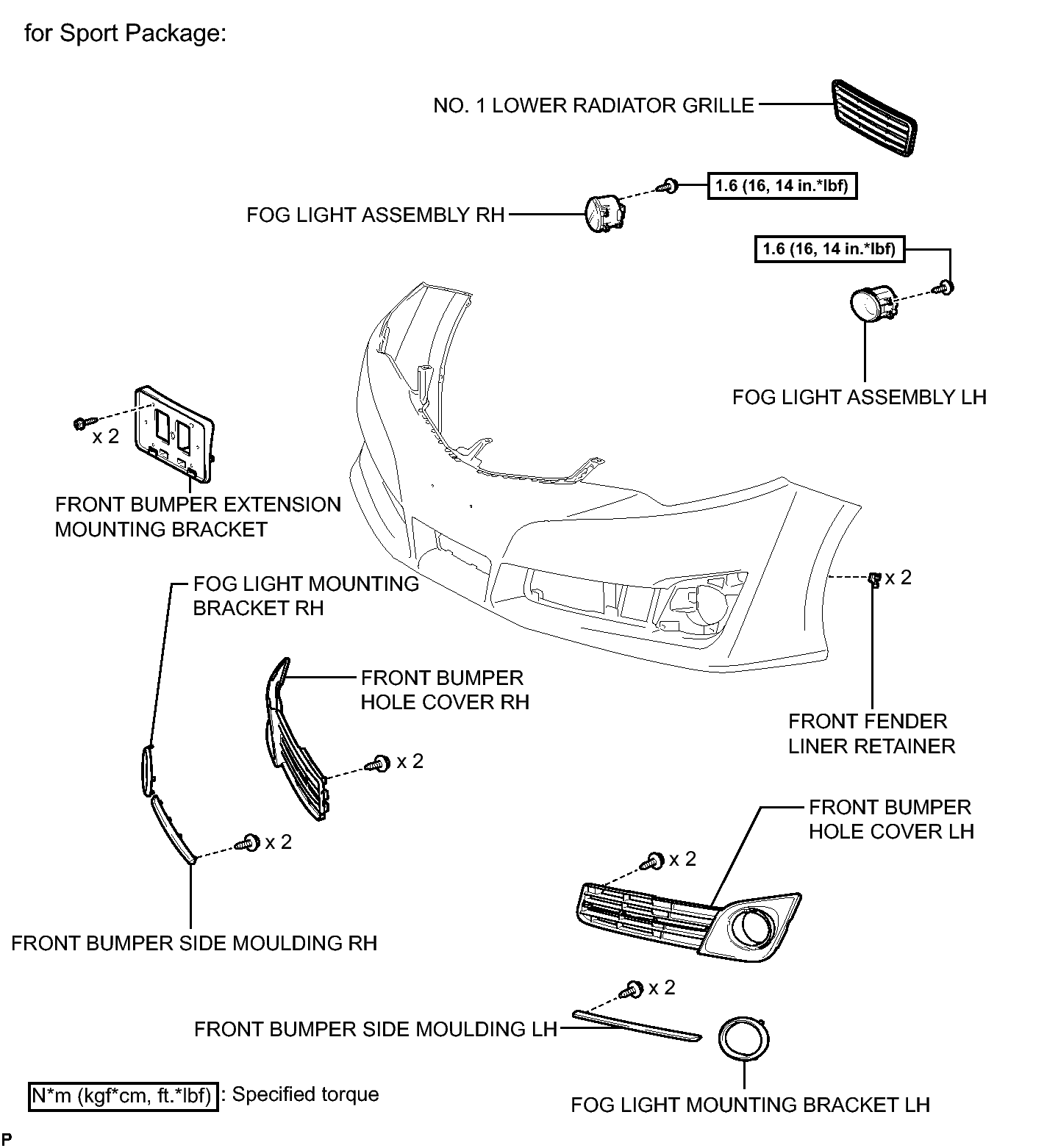

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (4 Of 5)
GTY317468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

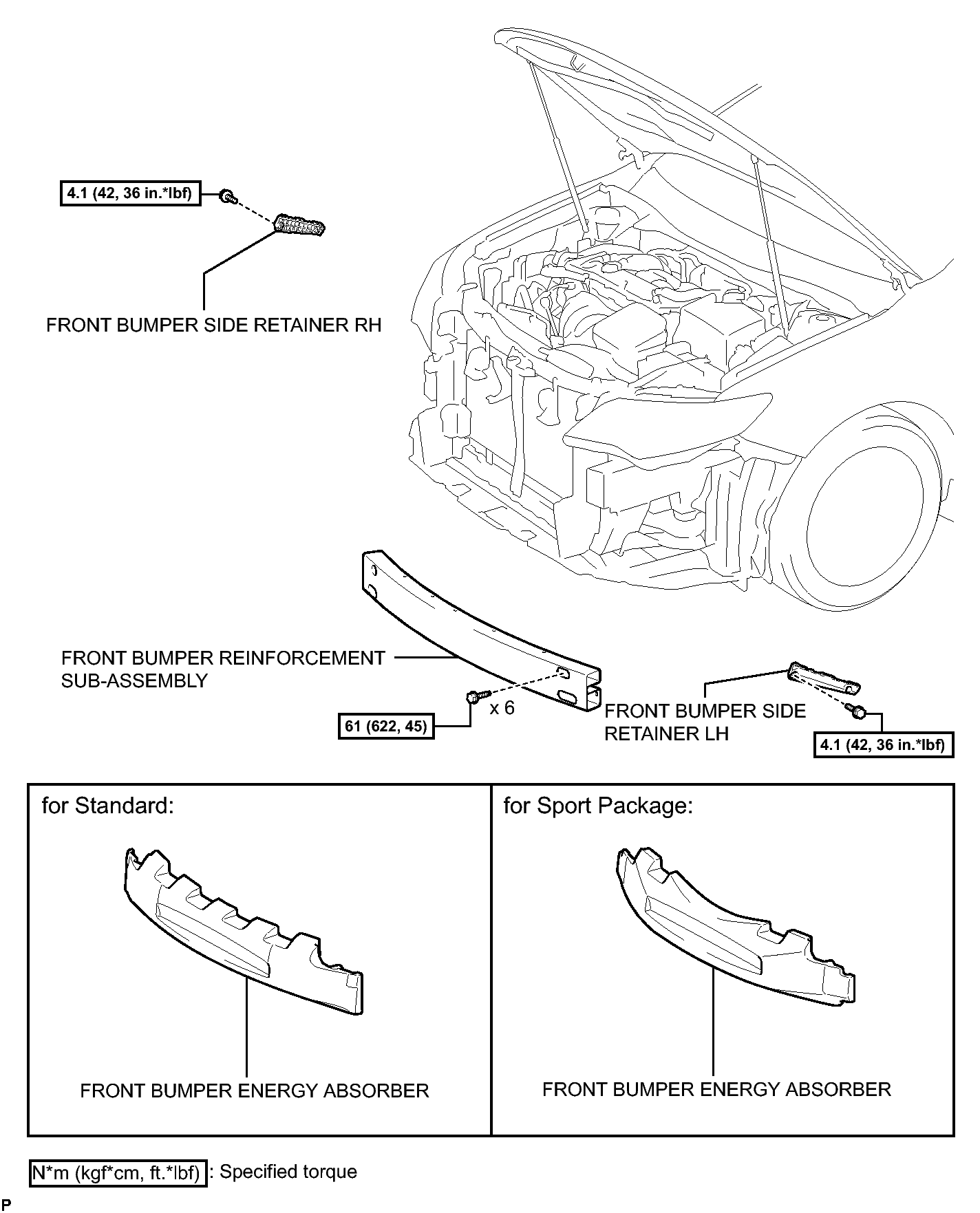

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (5 Of 5)
GTY322315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
