Rear Door: Components: Illustration

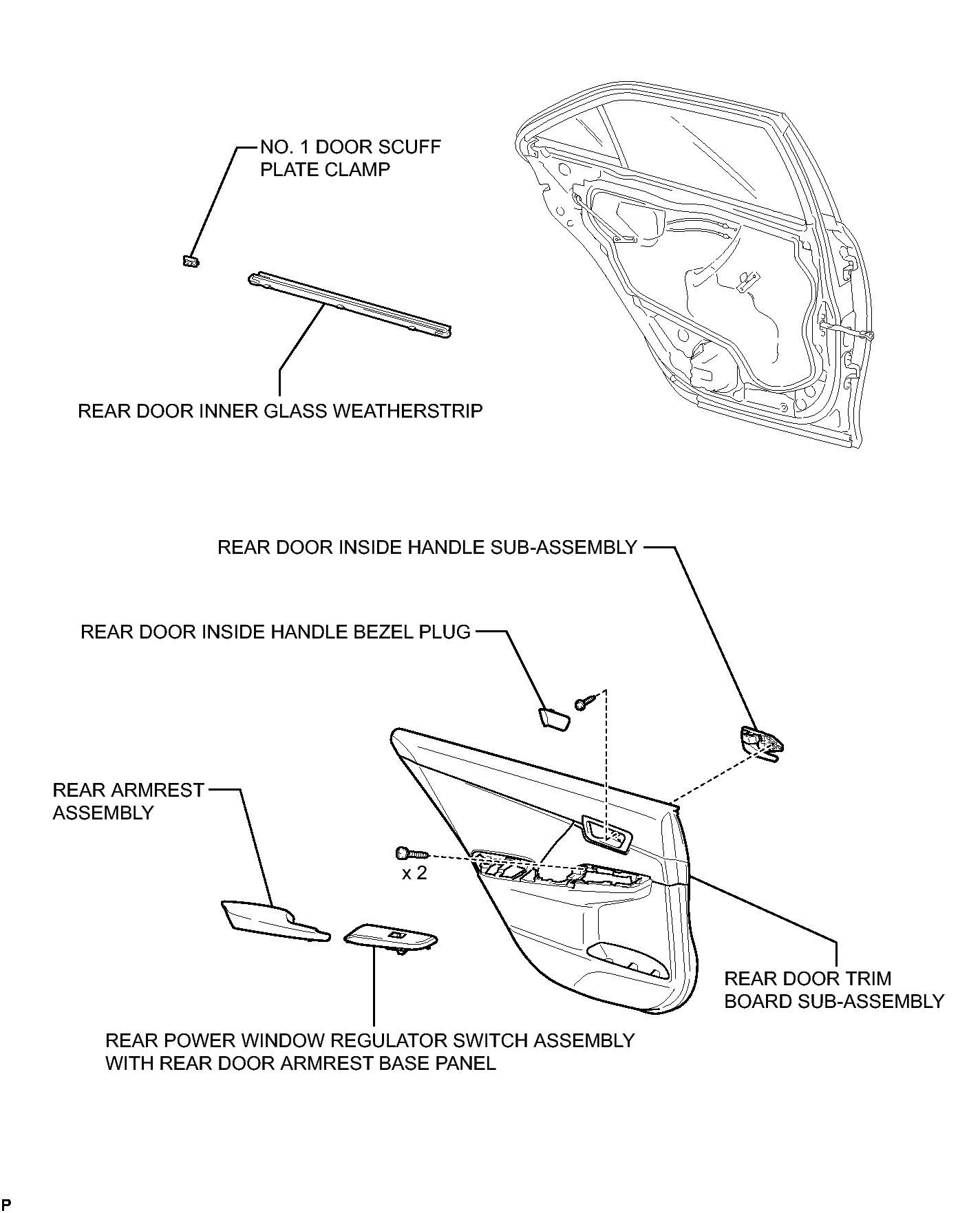

Fig 1: Identifying Rear Door Replacement Components (1 Of 4)
GTY321920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

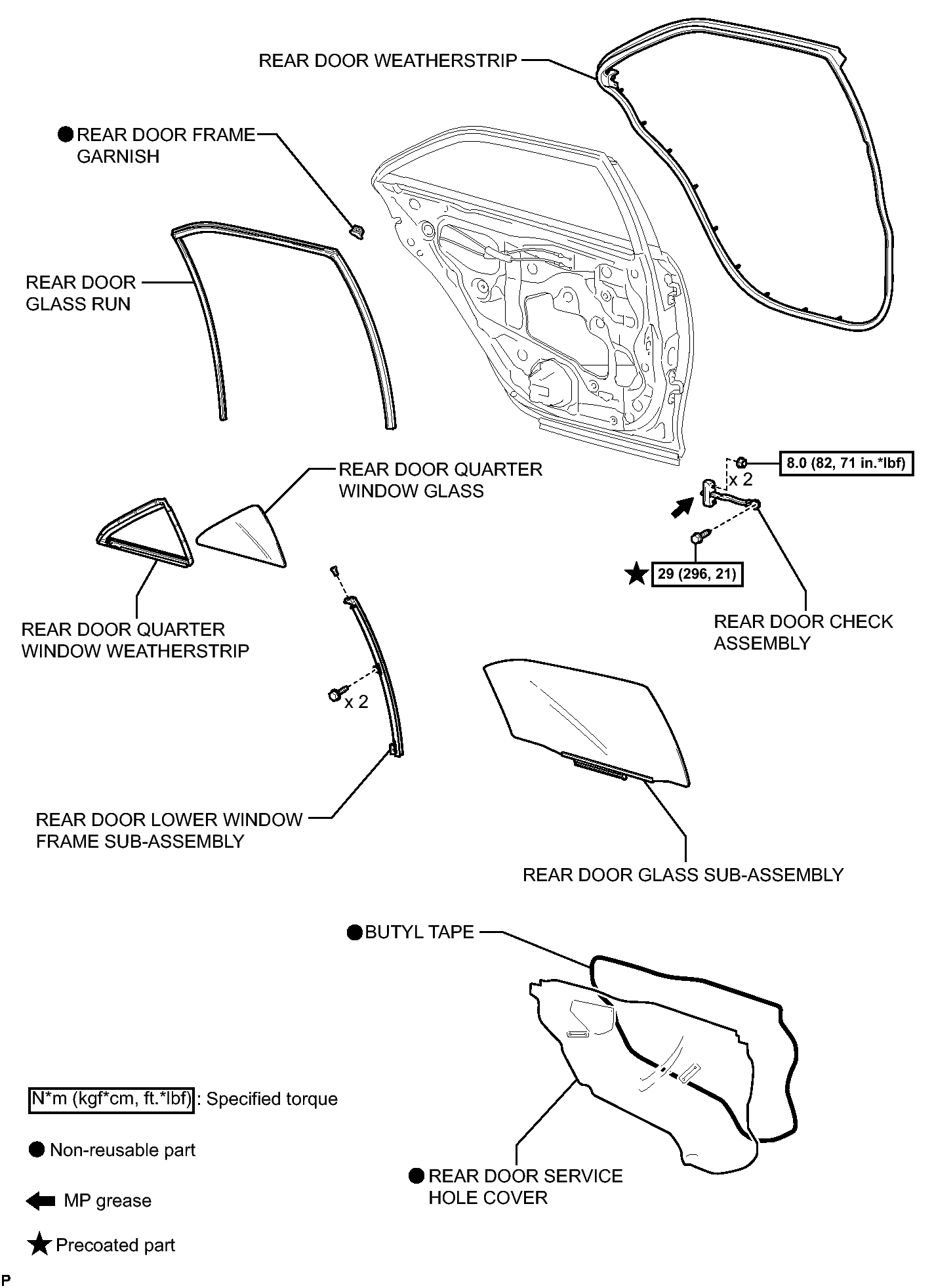

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 4)
GTY319395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

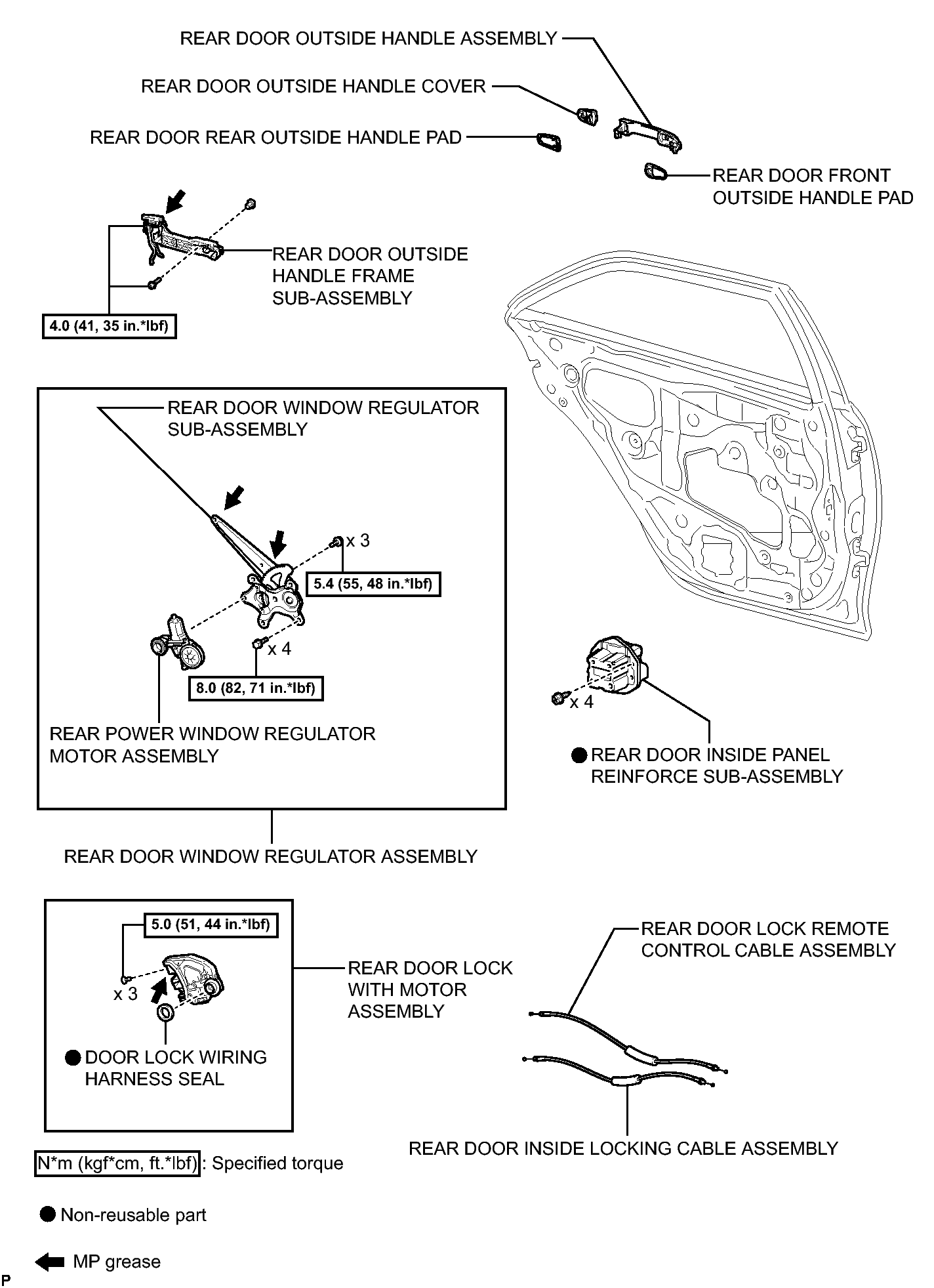

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 4)
GTY318270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

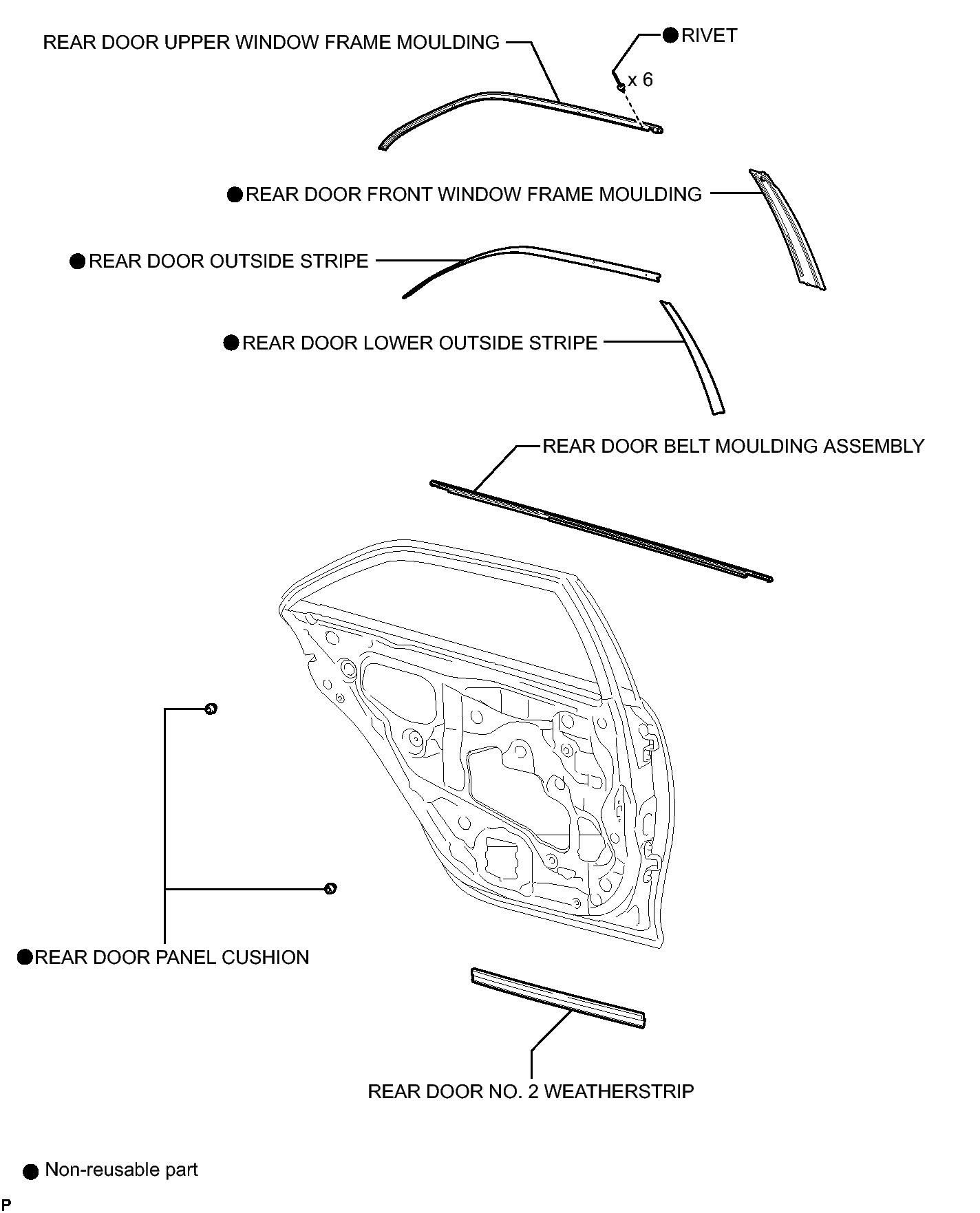

Fig 1: Identifying Rear Door Replacement Components (4 Of 4)
GTY322557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
