Hood Lock Control Cable Assembly: Removal: Removal

REMOVE RADIATOR GRILLE SUB-ASSEMBLY
Refer to REMOVAL .
REMOVE FRONT WHEEL LH
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
HINT:

Use the same procedure for the RH side and LH side. Refer to REMOVAL - Step 2 .
REMOVE FRONT FENDER LINER LH
HINT:

Use the same procedure for the RH side and LH side. Refer to REMOVAL - Step 3 .
REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL - Step 3 .
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH . Refer to REMOVAL - Step 4 .
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY . Refer to REMOVAL - Step 12 .
REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
1. Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.

  Fig 1: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK ASSEMBLY
1. w/ Engine Hood Courtesy Switch:
  1. Disconnect the connector.

    Fig 2: Identifying Hood Lock Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts.

  Fig 3: Identifying Hood Lock Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the hood lock control cable assembly and remove the hood lock assembly.

  Fig 4: Identifying Hood Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

Using a screwdriver, disengage 5 clamps and hood cable grommet as shown in the illustration.

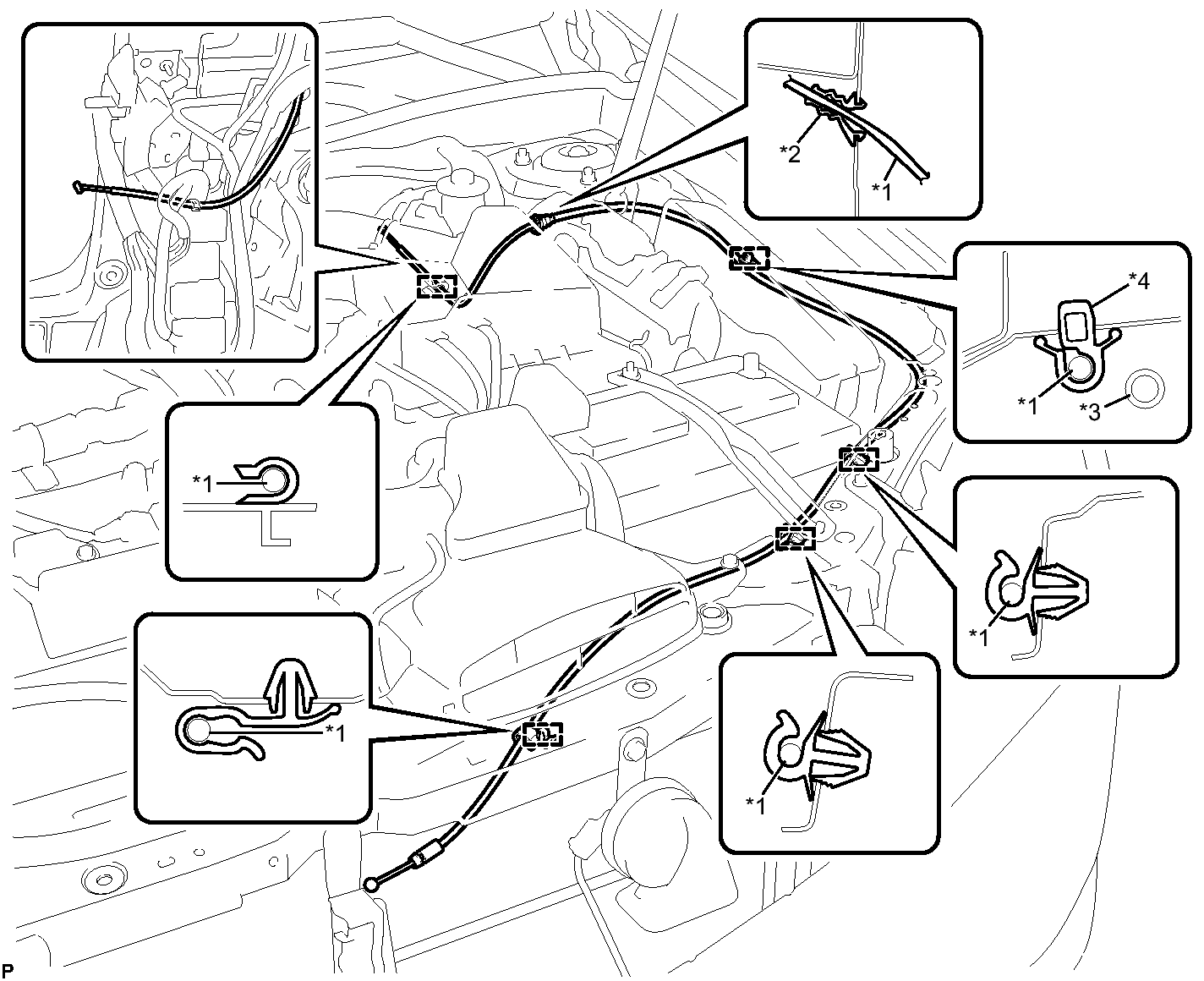

Fig 5: Locating Hood Lock Control Cable Assembly Fasteners

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Hood Lock Control Cable	*2	Hood Cable Grommet
*3	Washer Hose	*4	Hood Lock Control Cable Clamp

HINT:

Tape the screwdriver tip before use.

Pull the hood lock control cable assembly from the engine compartment and remove it.
