Front Door: Components: Illustration

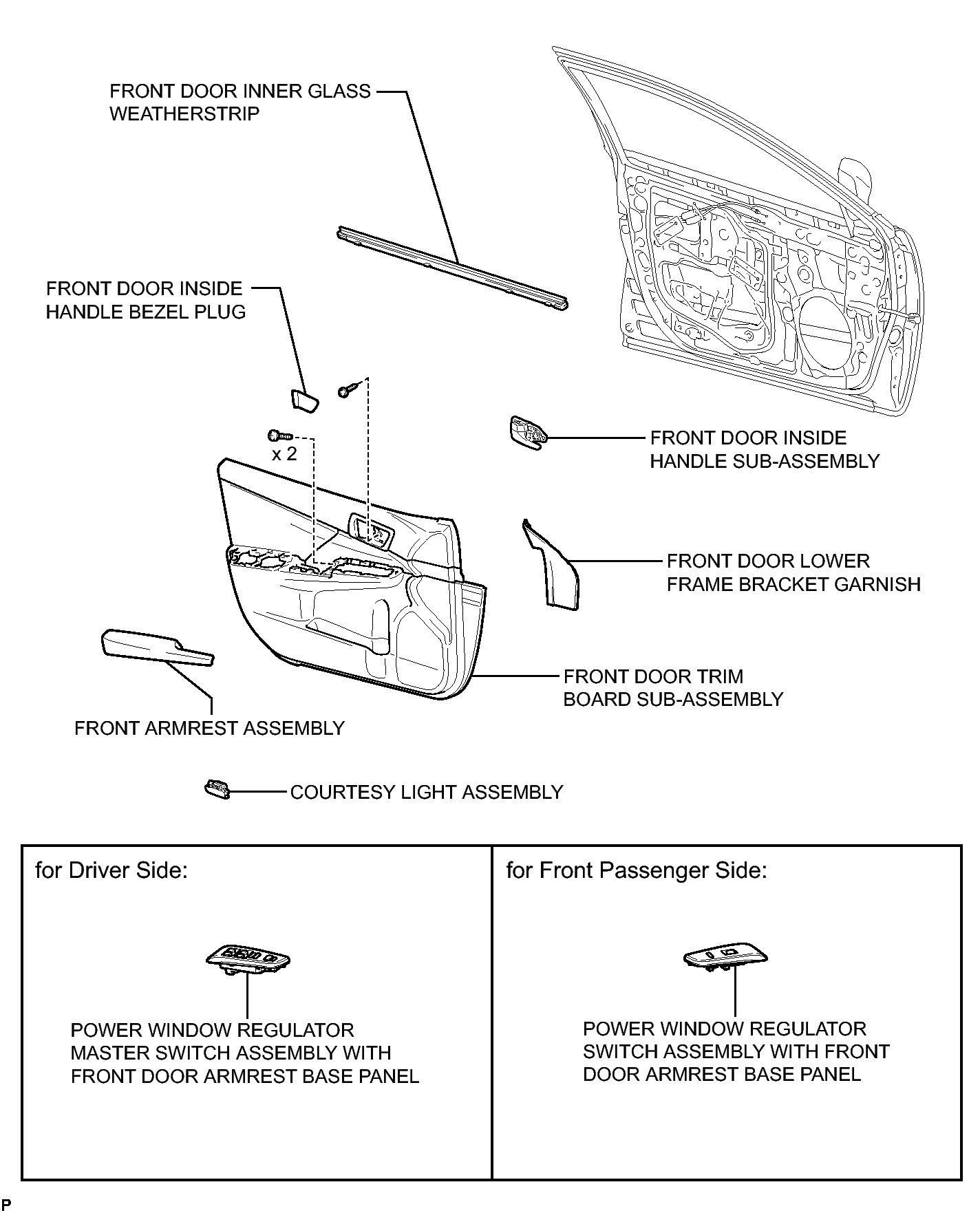

Fig 1: Identifying Front Door Replacement Components (1 Of 4)
GTY322507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

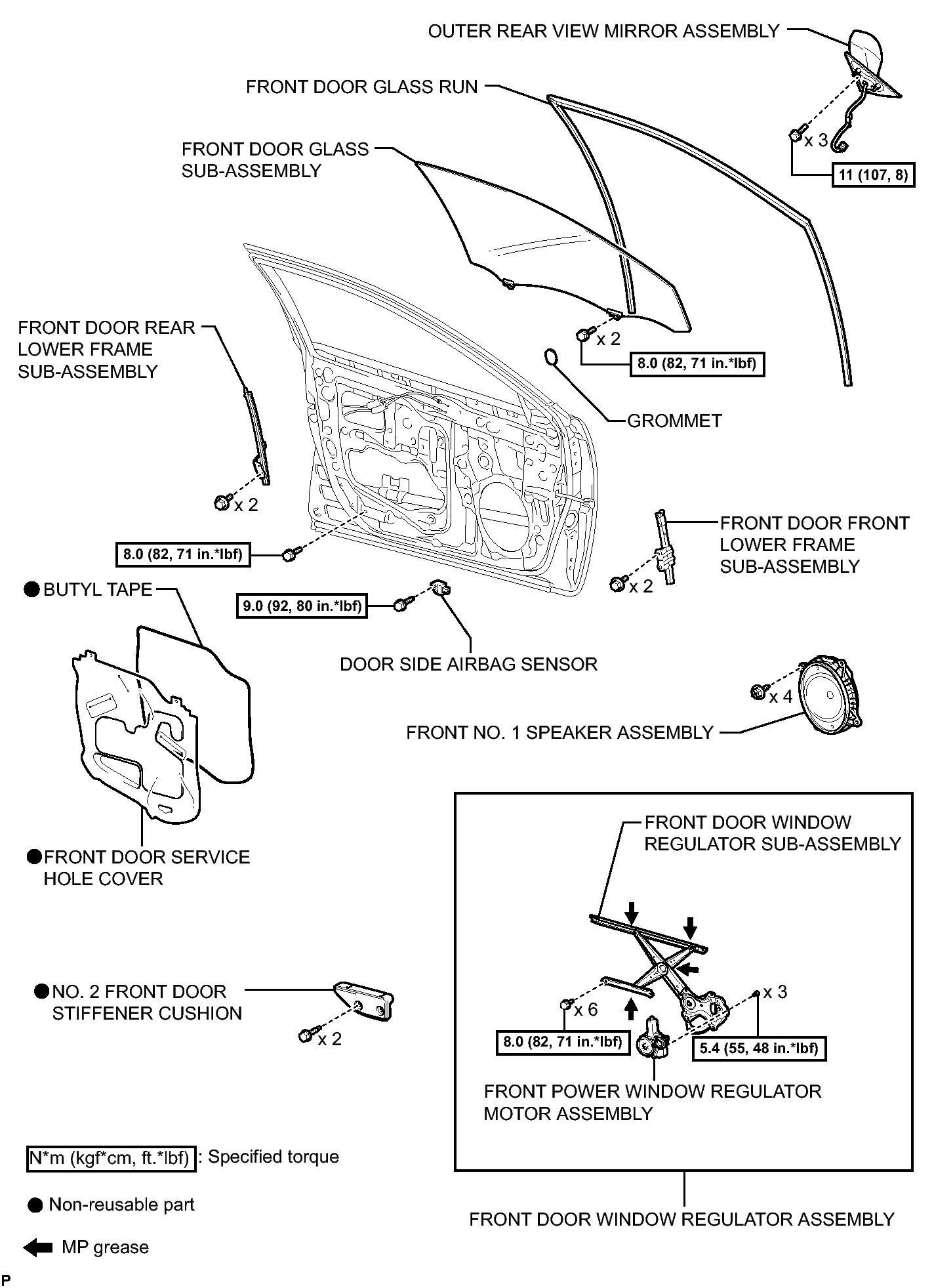

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (2 Of 4)
GTY319225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

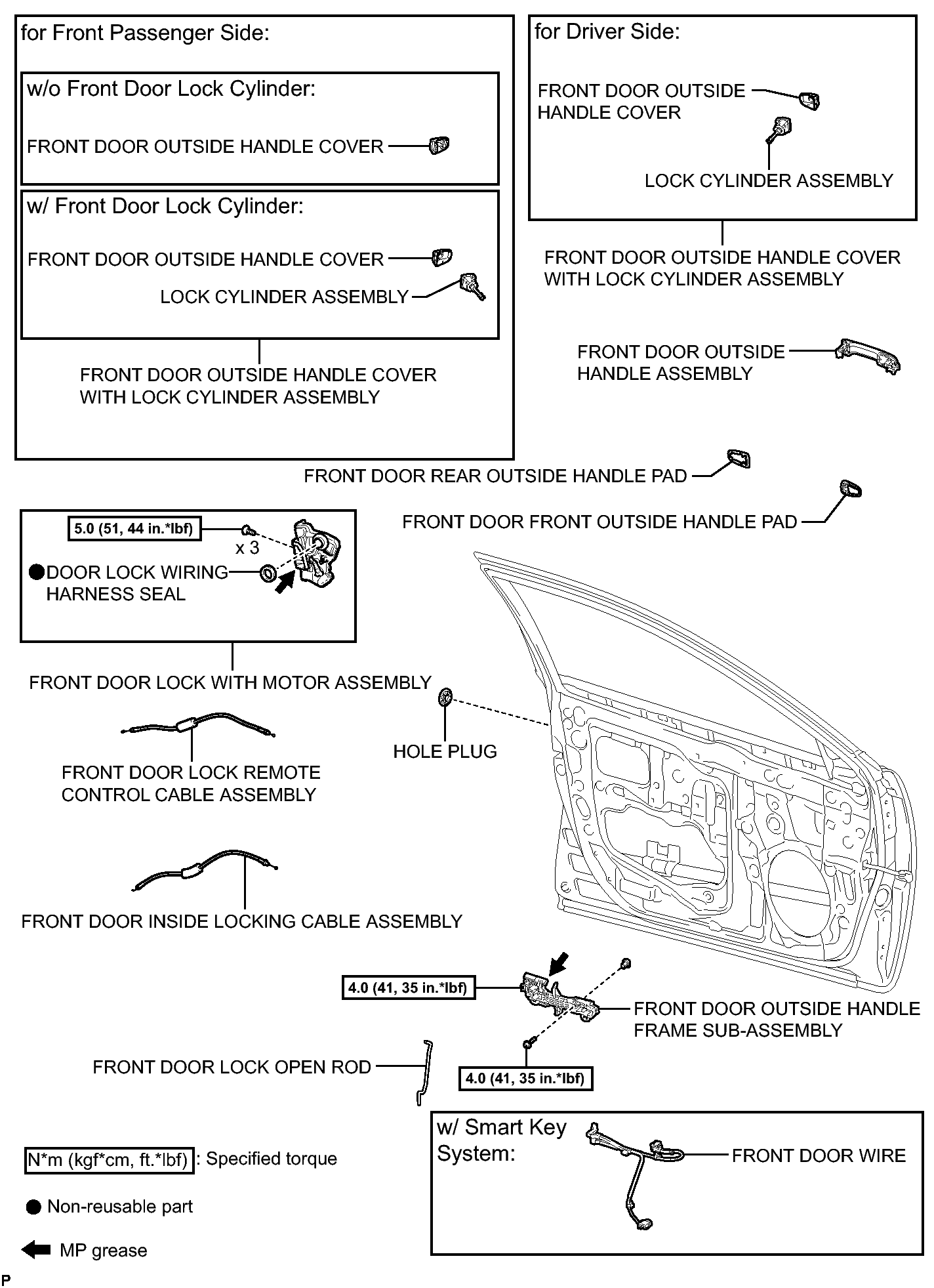

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 4)
GTY315123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

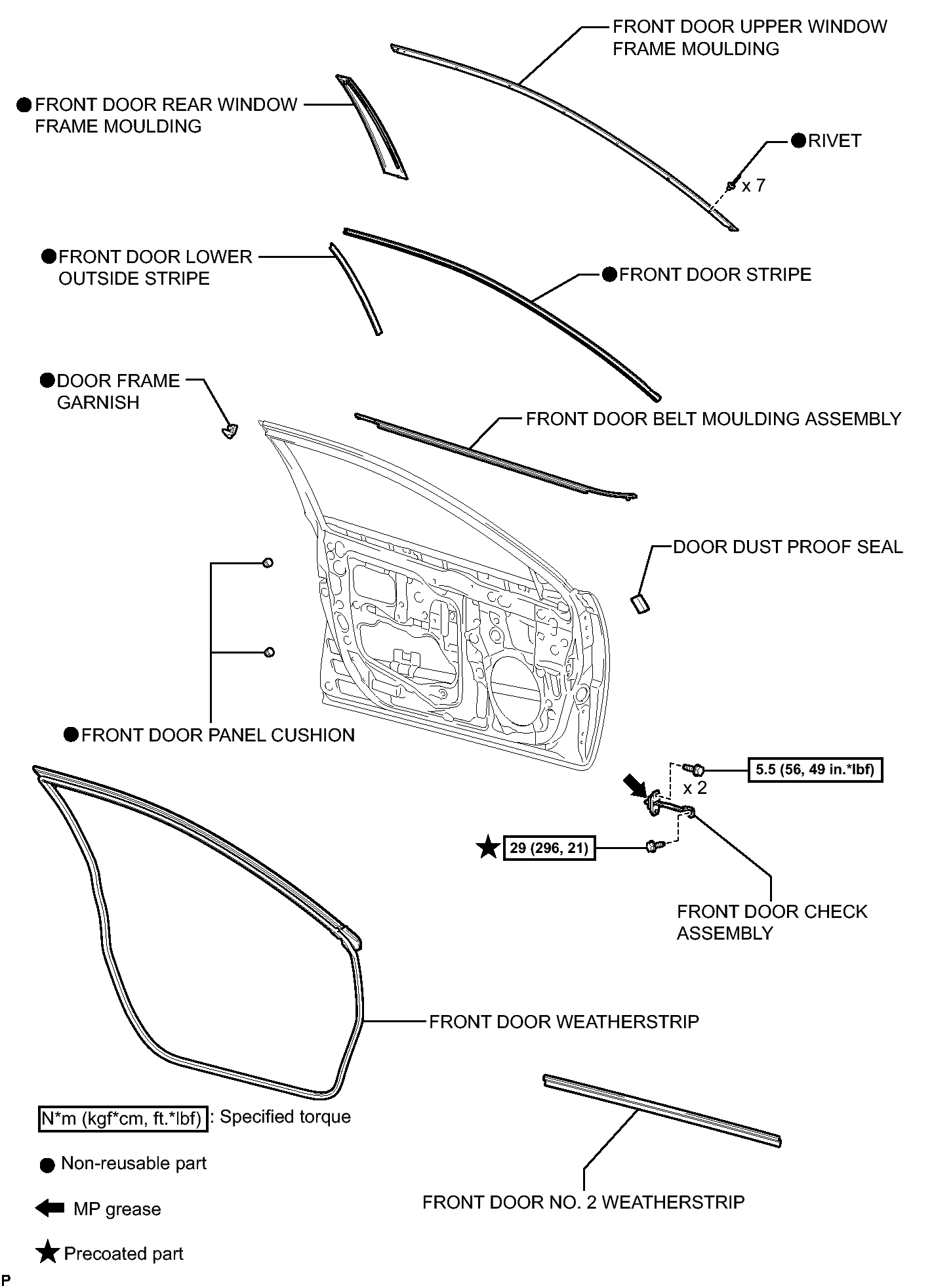

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (4 Of 4)
GTY322827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
