Parts Location: Illustration

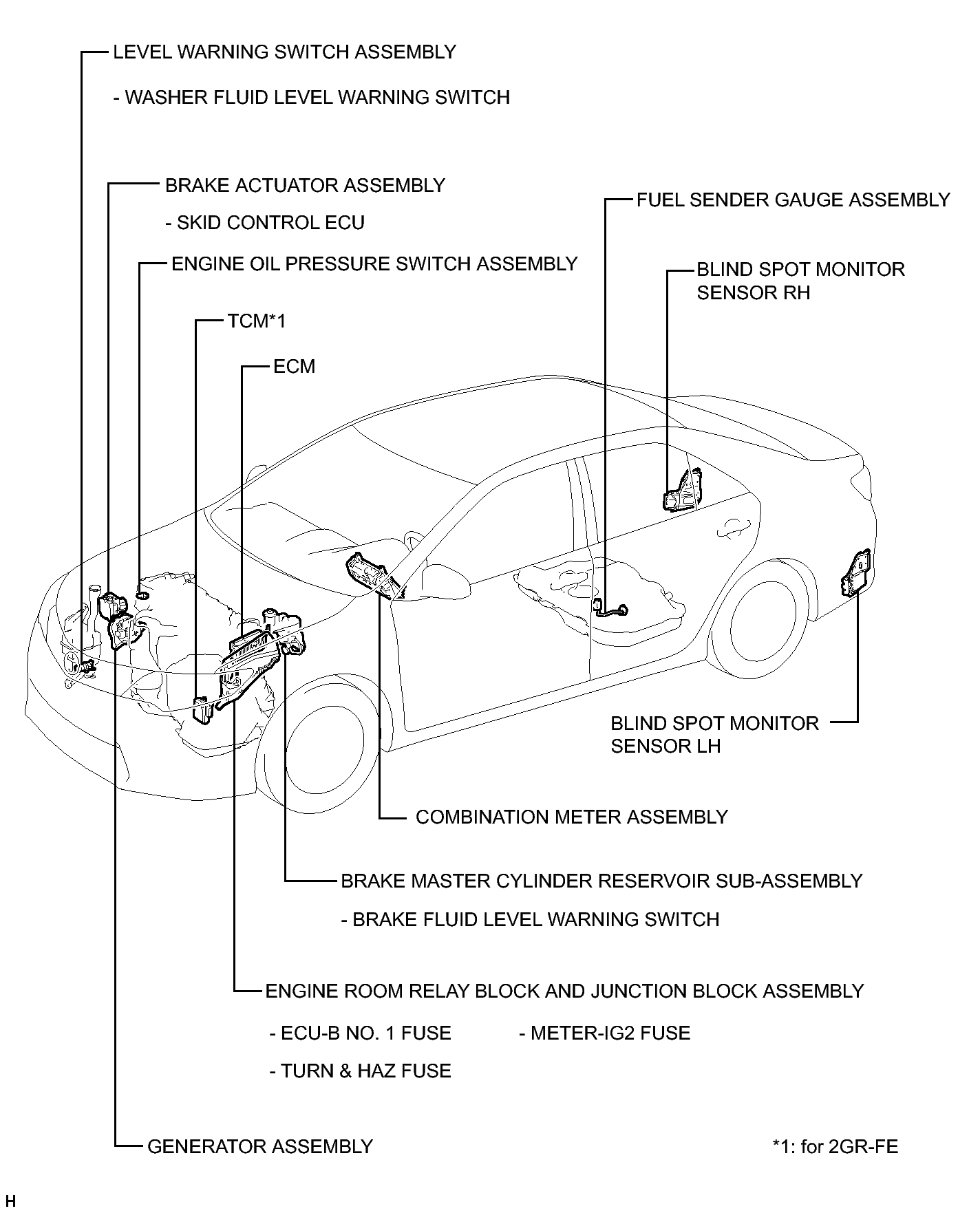

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 4)
GTY315342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

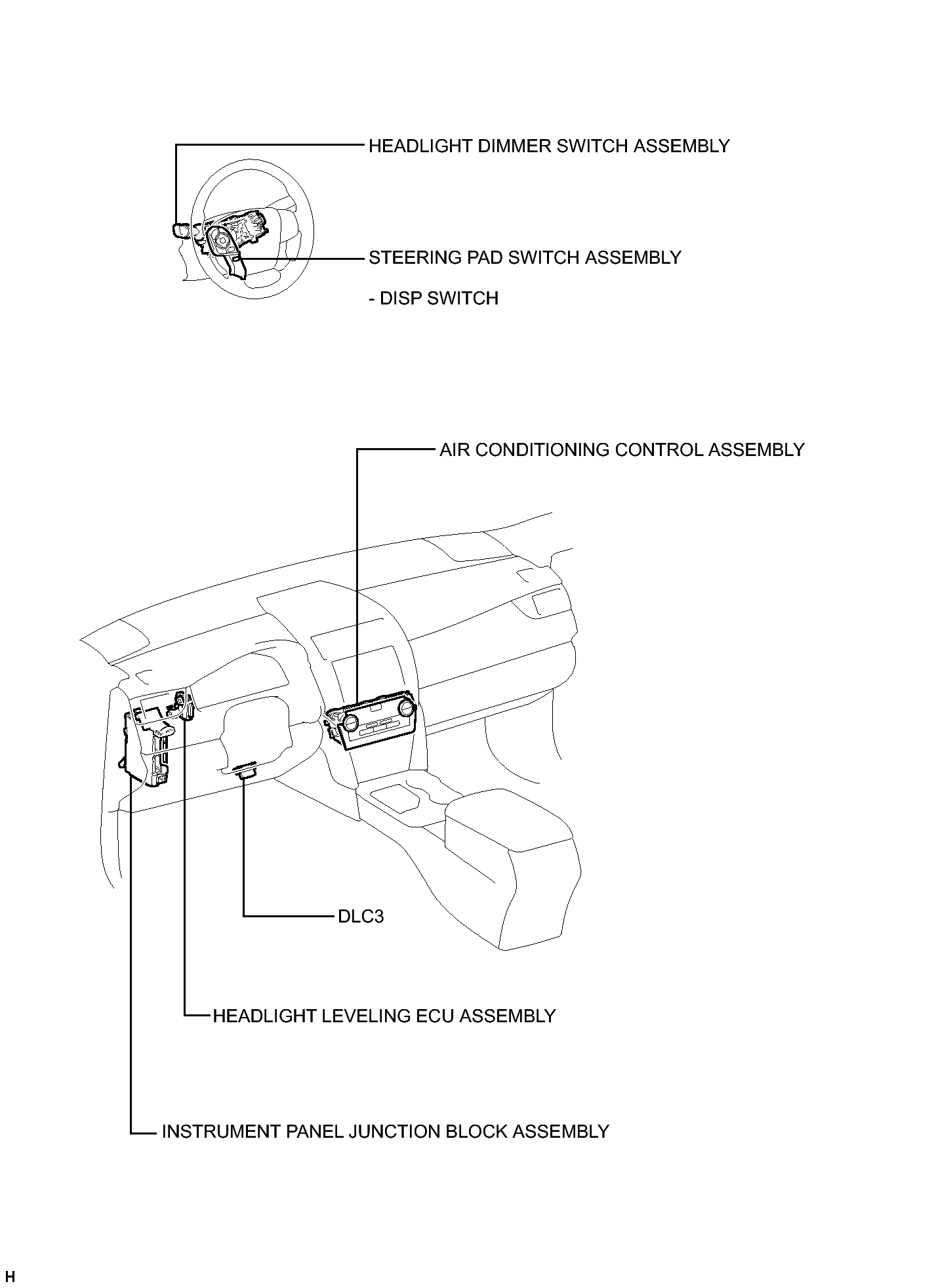

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 4)
GTY322737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (3 Of 4)
GTY316679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

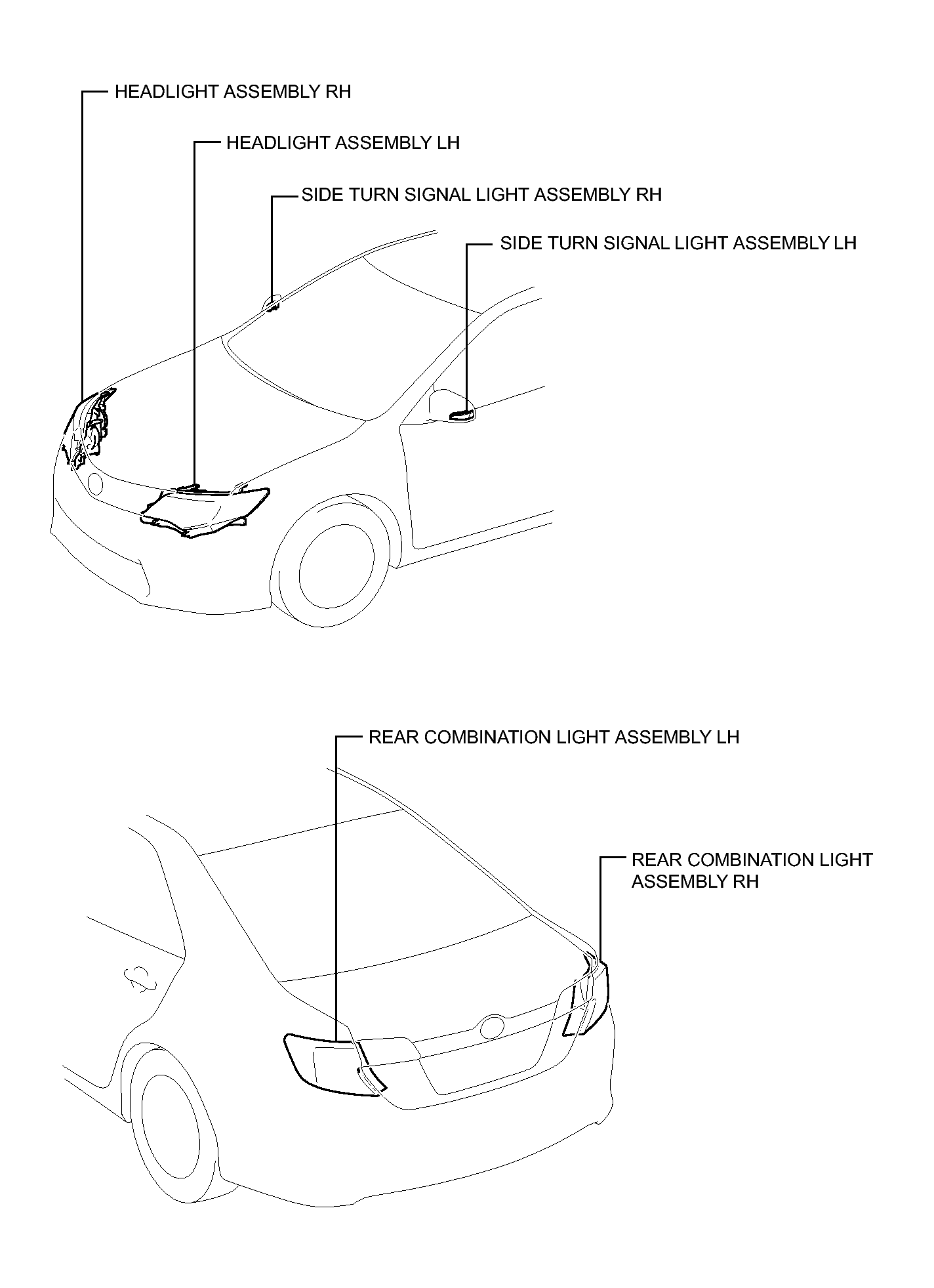

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 4)
GTY319893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
