Rear Sunshade does not Operate with Rear Sunshade Switch: Wiring Diagram

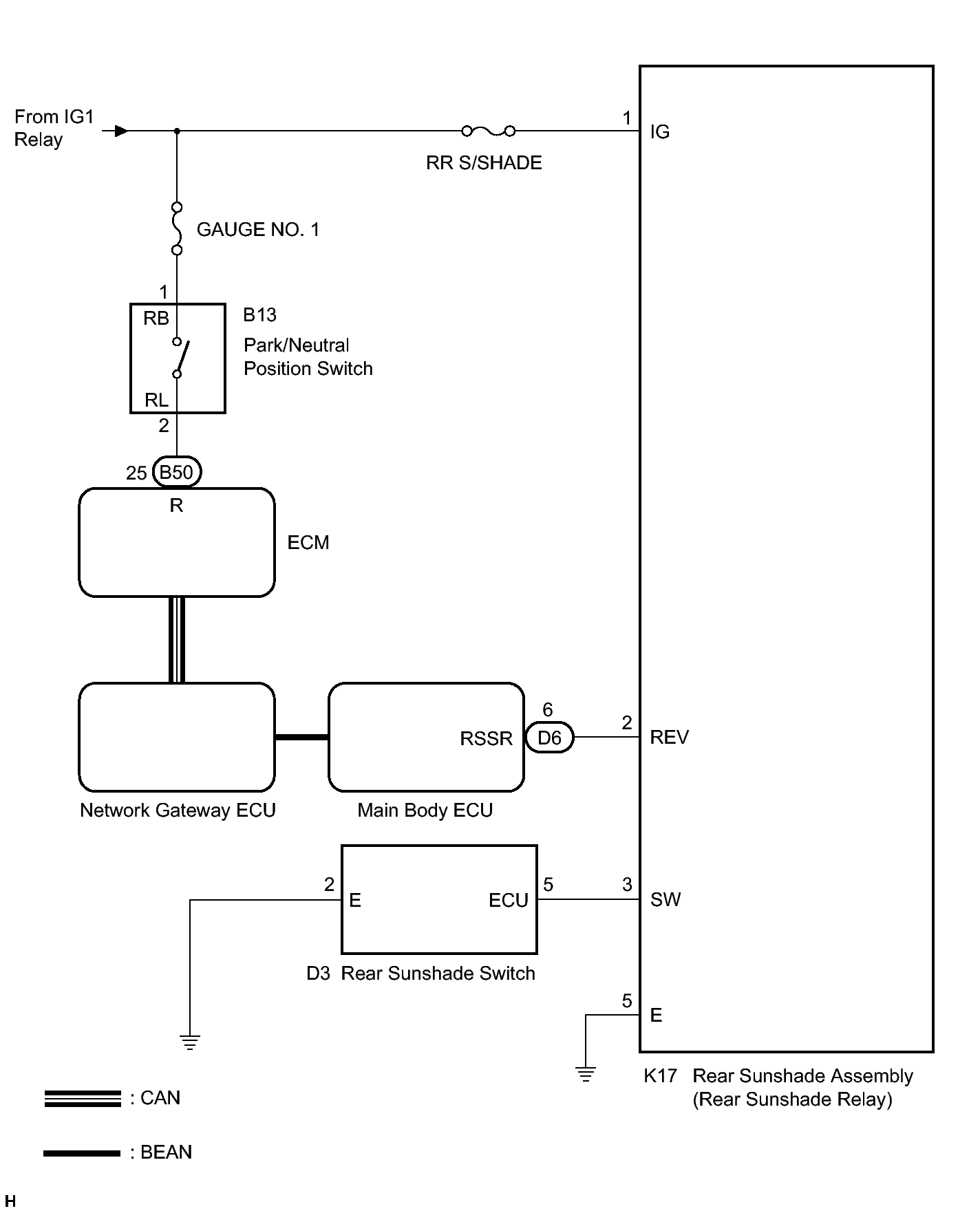

Fig 1: Rear Sunshade Assembly Circuit - Wiring Diagram

GTY199830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
