Rear Sunshade Shift-linked Function does not Operate when Shift Lever is Moved to R Position: Wiring Diagram

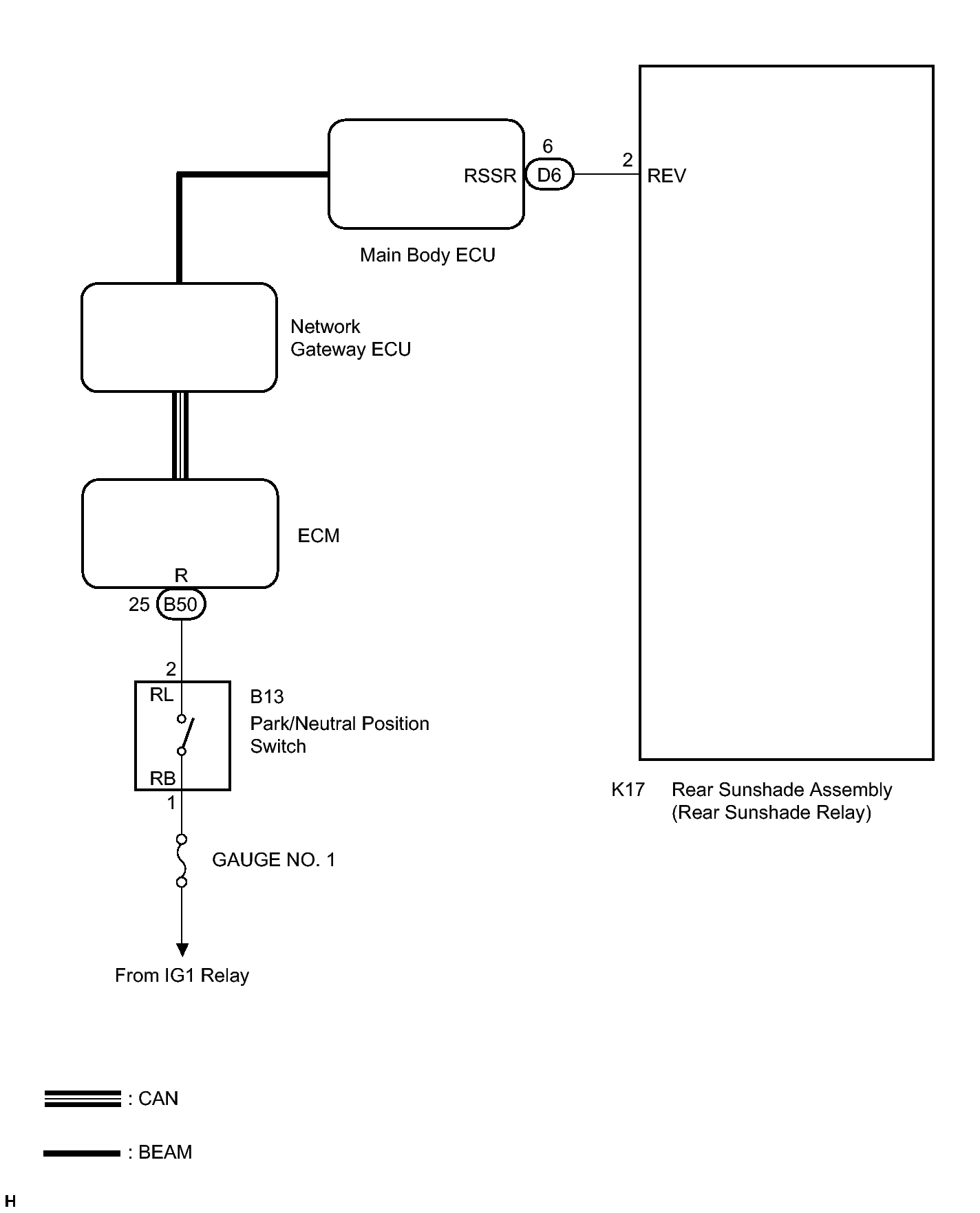

Fig 1: Rear Sunshade Assembly Circuit - Wiring Diagram
GTY175065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
