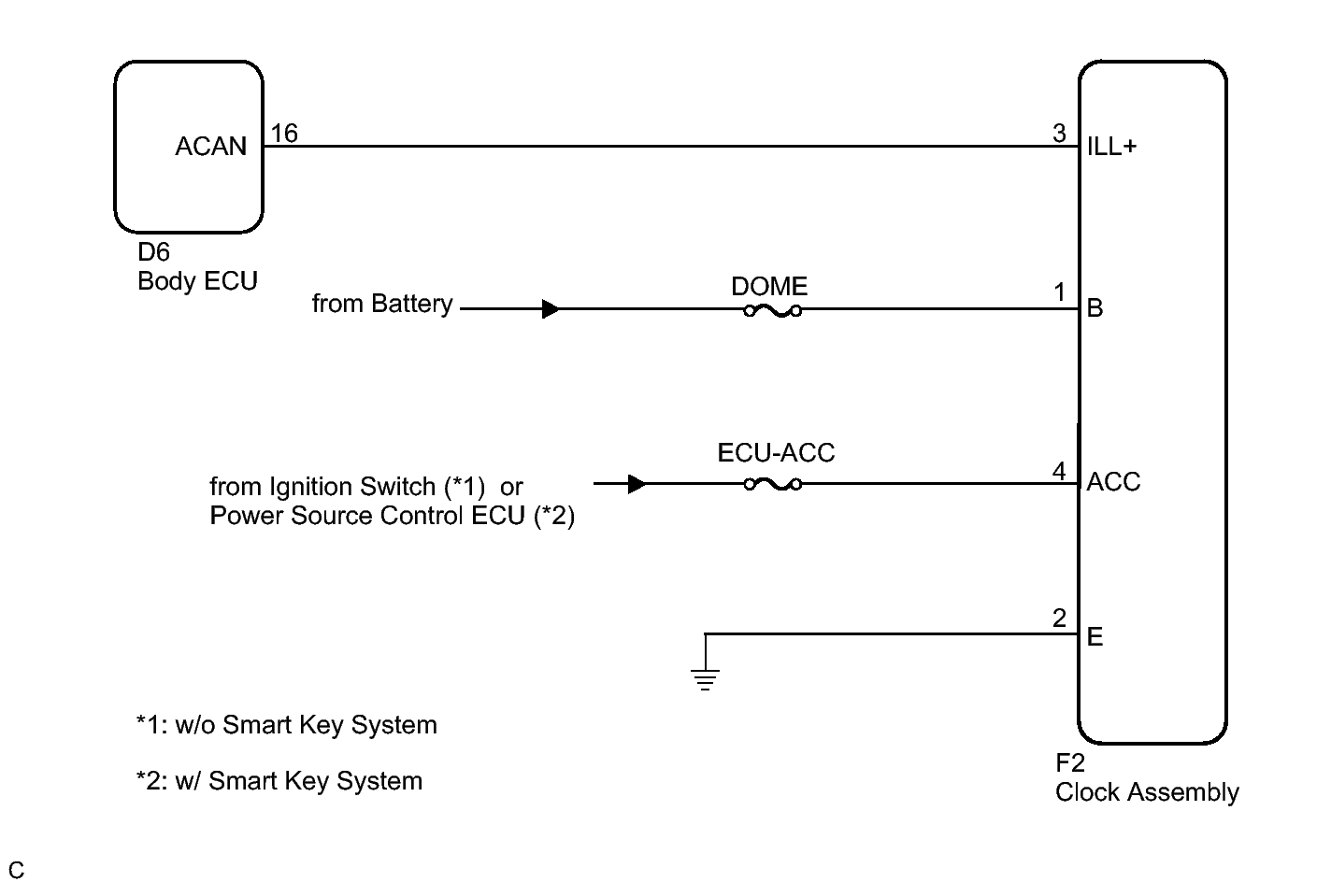

Home >> Toyota >> 2012 >> Avalon Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System (Diagnostics & Symptom Tests) >> Meter / Gauge System >> Circuit Test >> Clock Display Circuit >> Wiring Diagram
