Accessory Meter: Components: Illustration

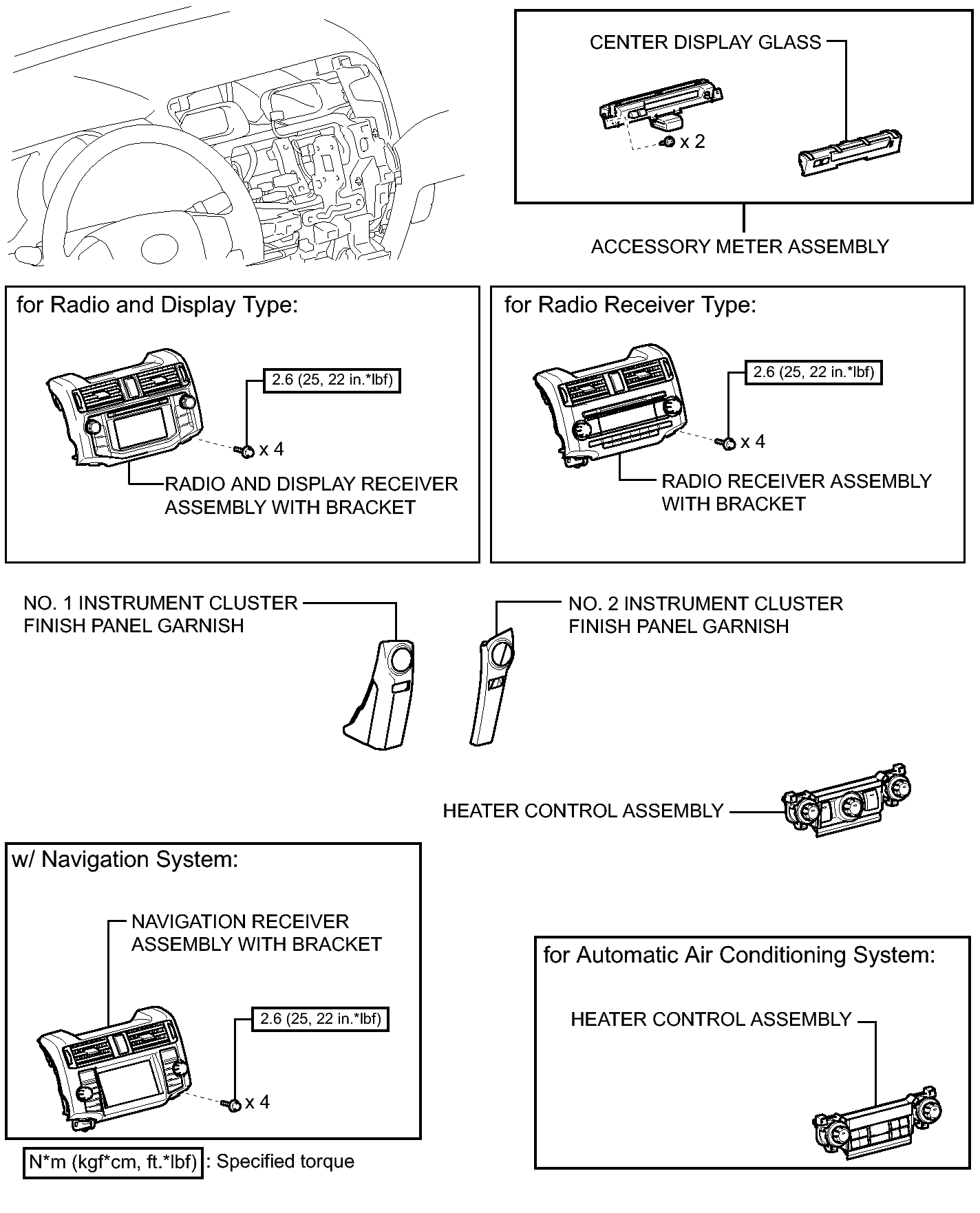

Fig 1: Identifying Accessory Meter Replacement Components With Torque Specifications

GTY342585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
