Parts Location: Illustration

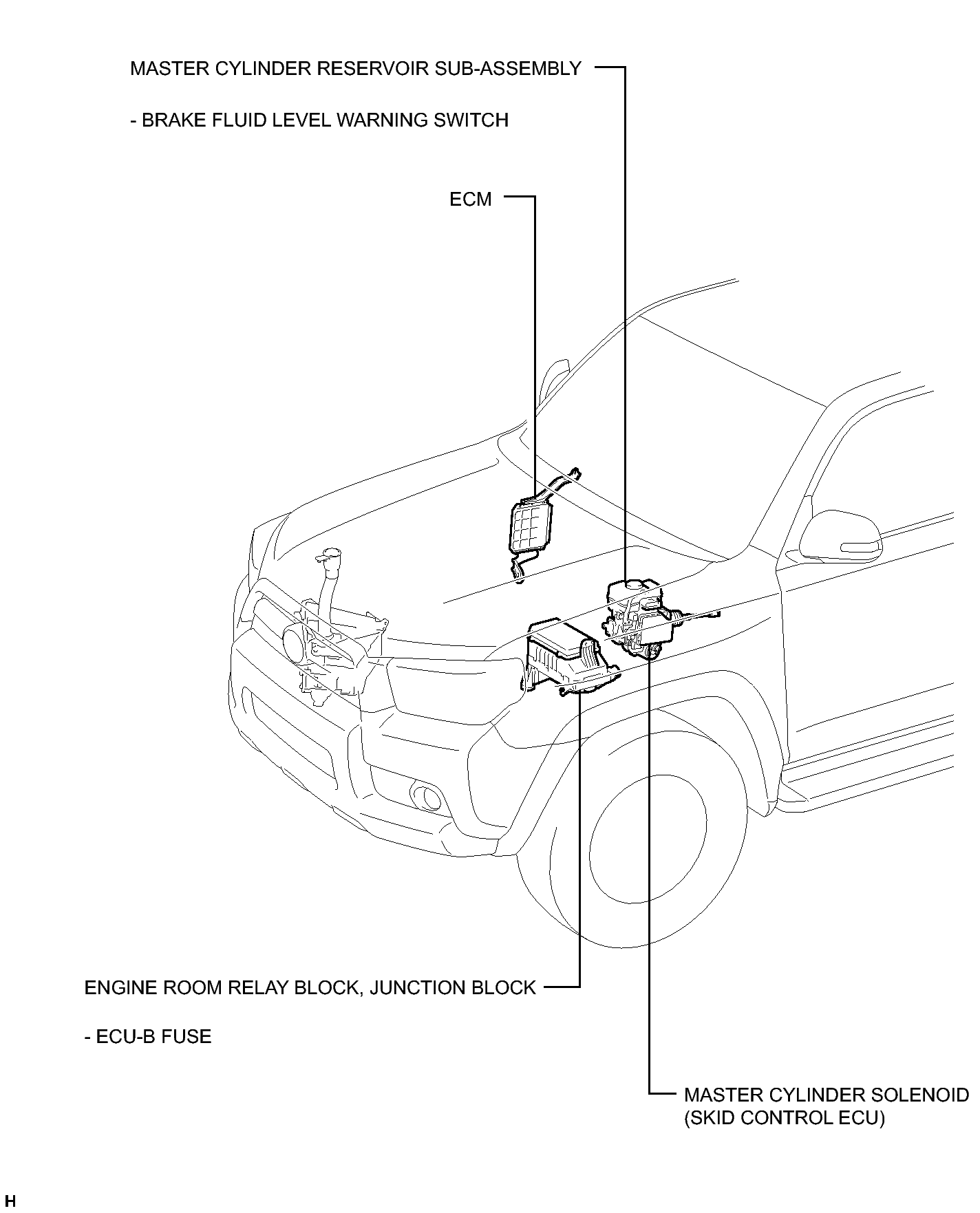

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 6)
GTY221229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

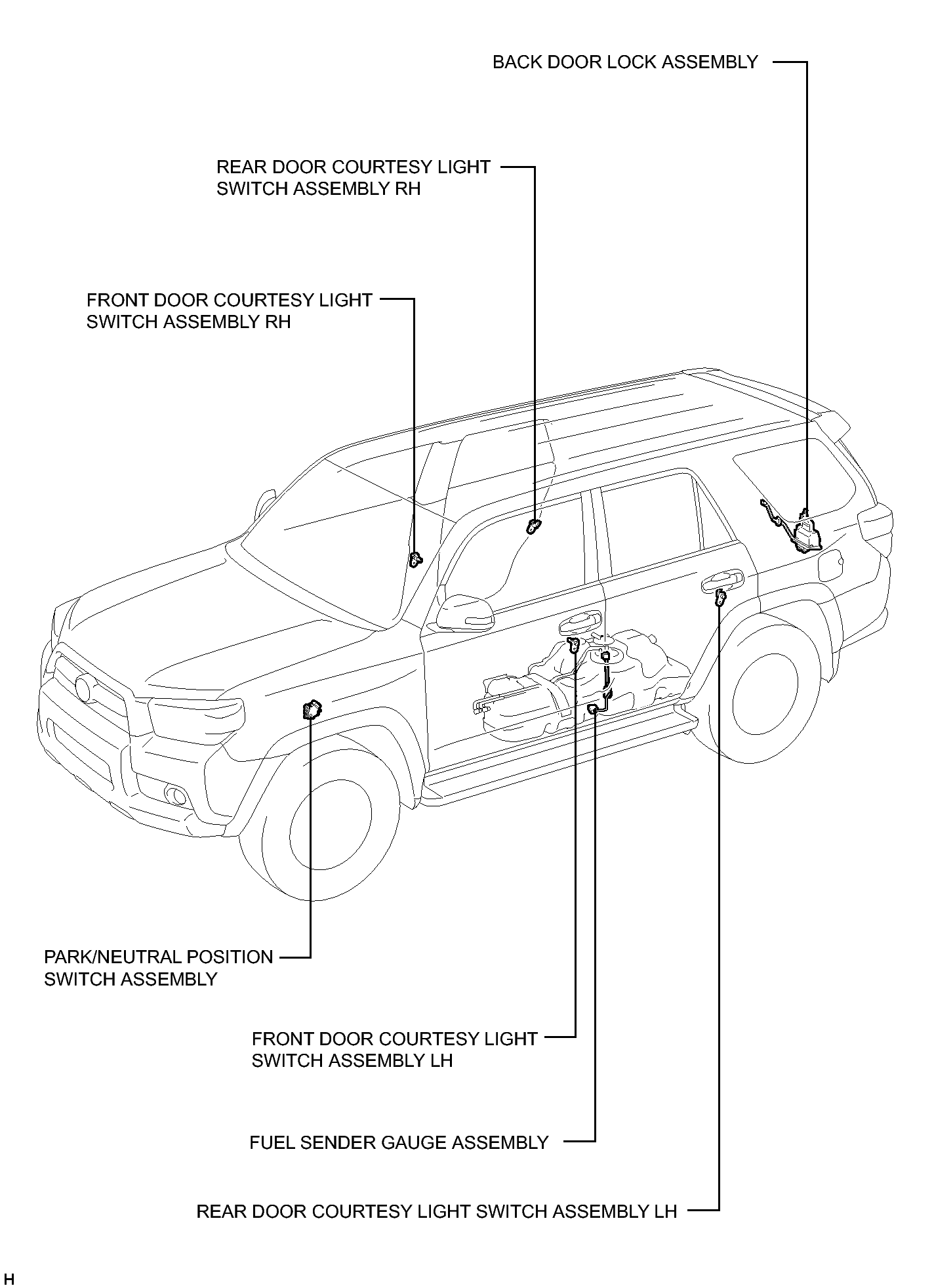

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 6)
GTY216171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

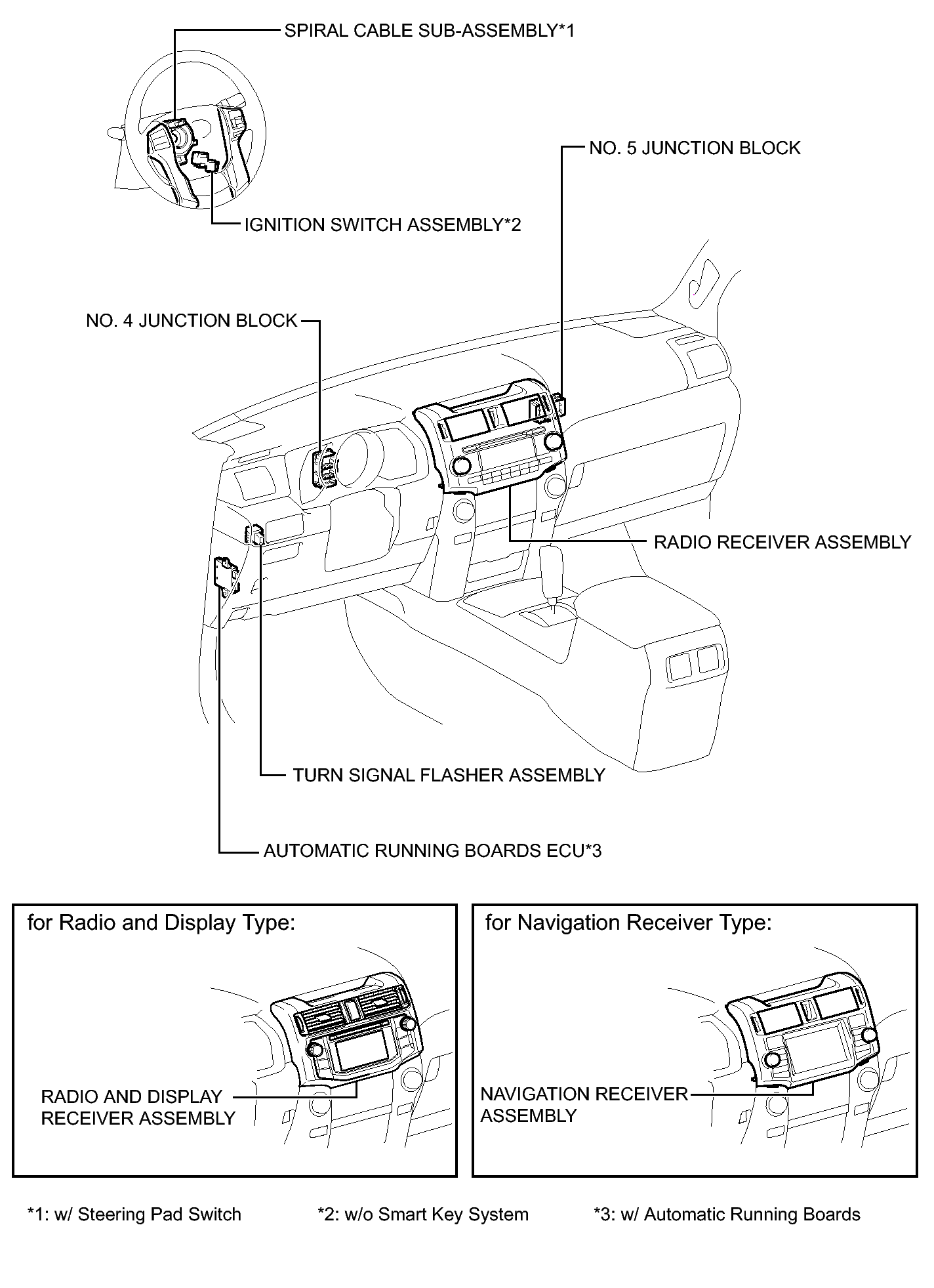

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 6)
GTY331522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

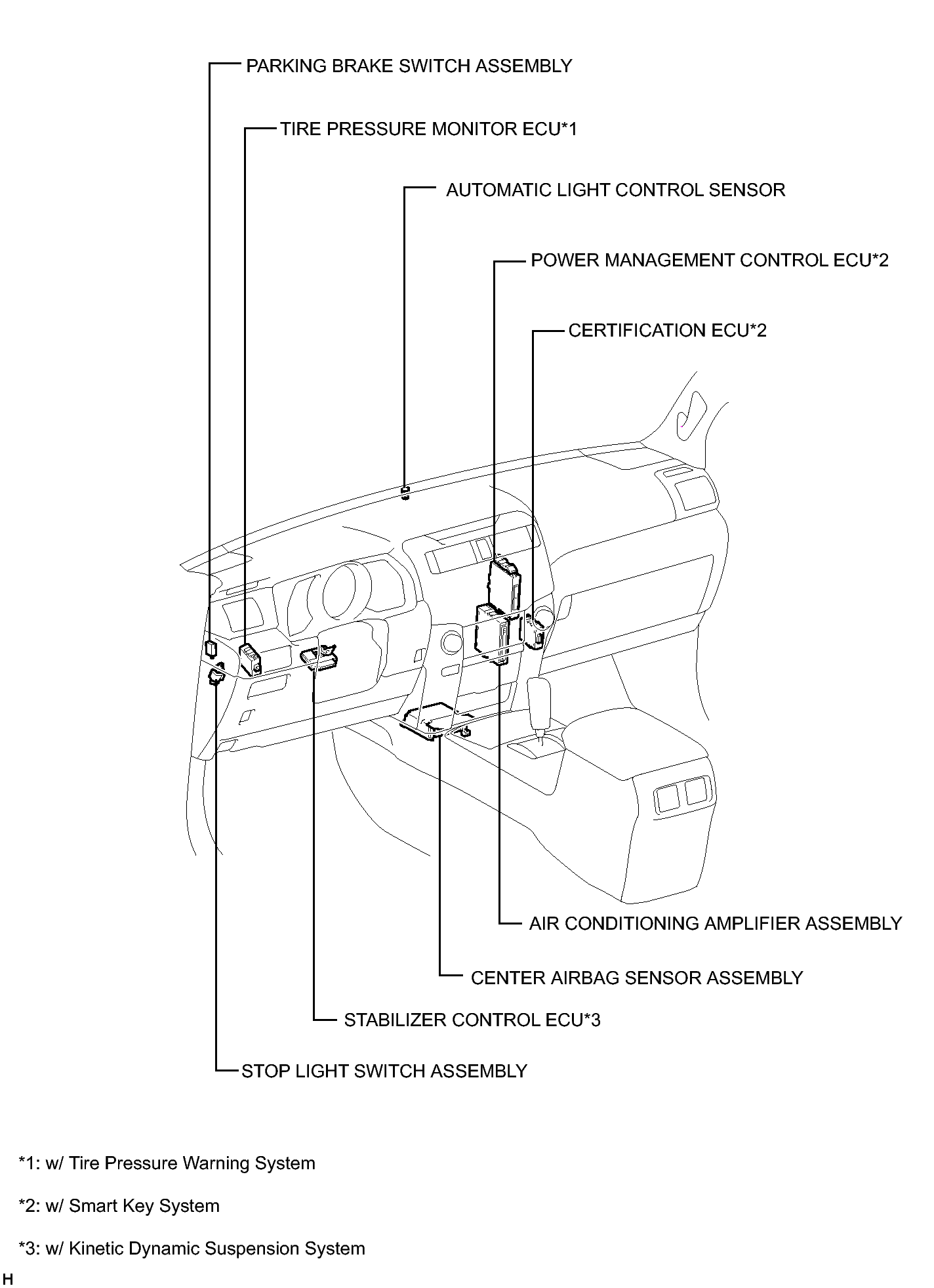

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 6)
GTY221009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

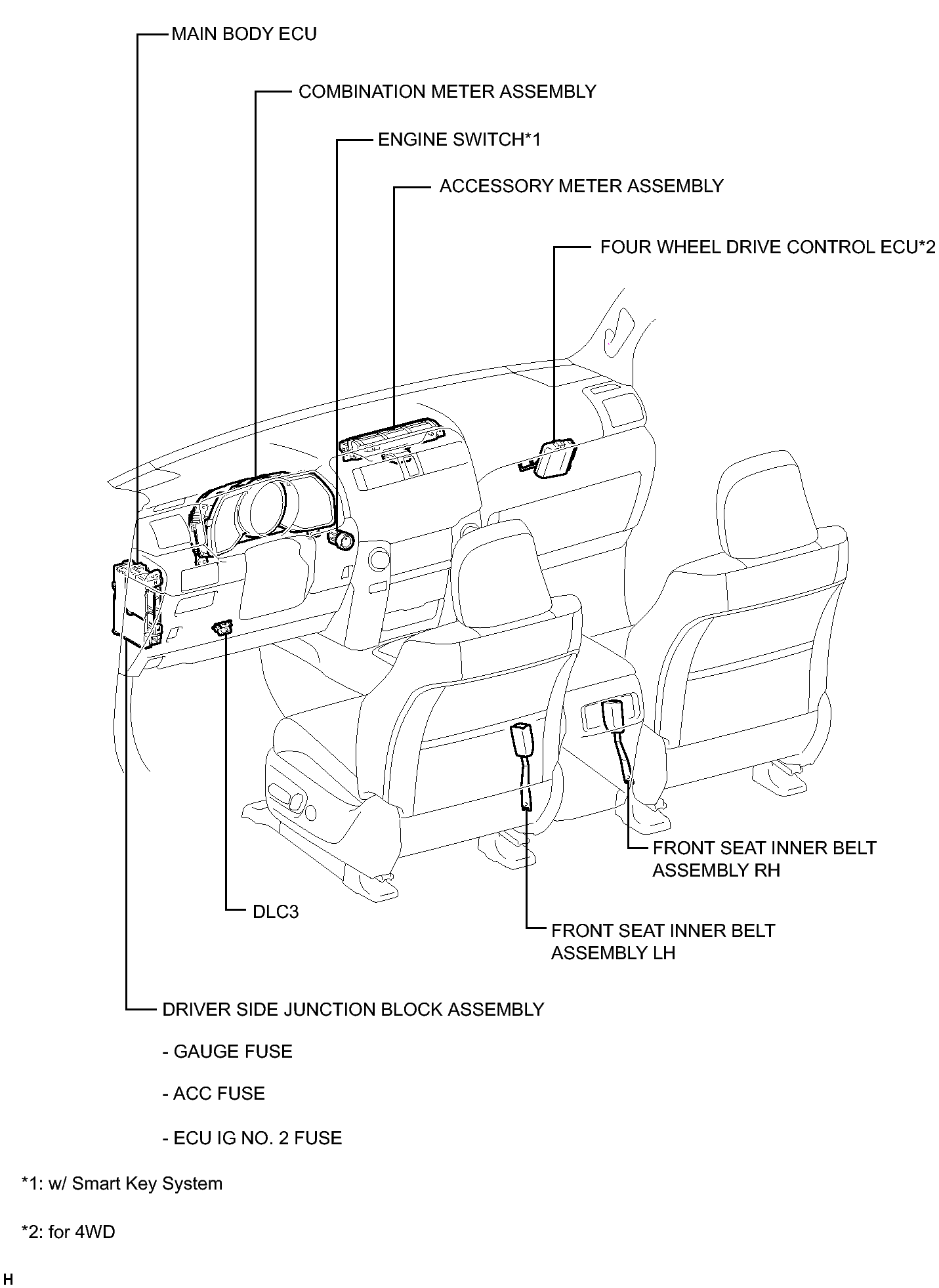

Fig 1: Identifying Meter / Gauge System Components Location (5 Of 6)
GTY218915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

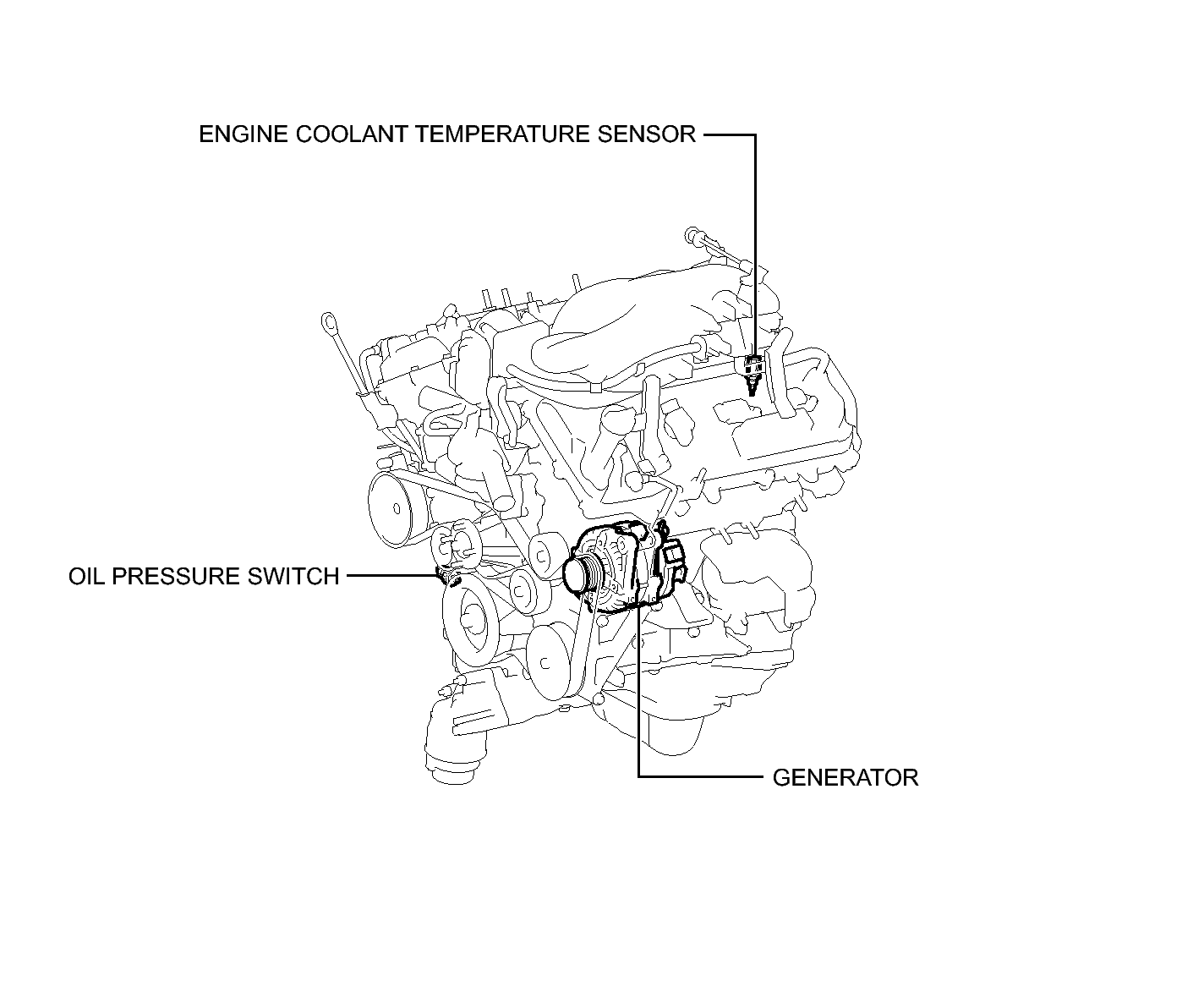

Fig 1: Identifying Meter / Gauge System Components Location (6 Of 6)
GTY338825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
