Monitor Description

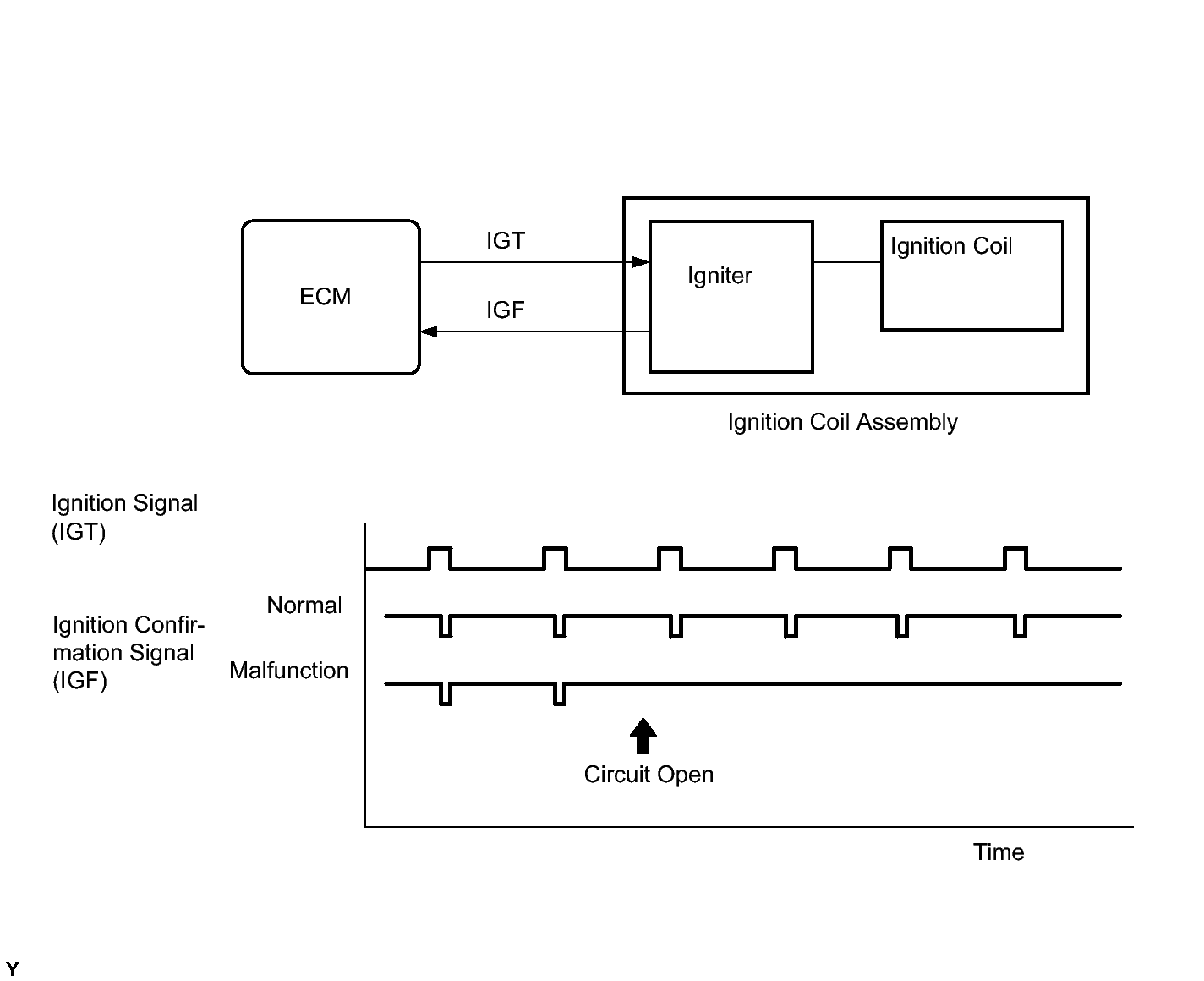

Fig 1: ECM Communication Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive any IGF signals despite transmitting the IGT signal, it interprets this as a fault in the igniter and sets a DTC.

If the malfunction is not repaired successfully, a DTC is set 1 second after the engine is next started.
