SRS Warning Light does not Come ON: Wiring Diagram

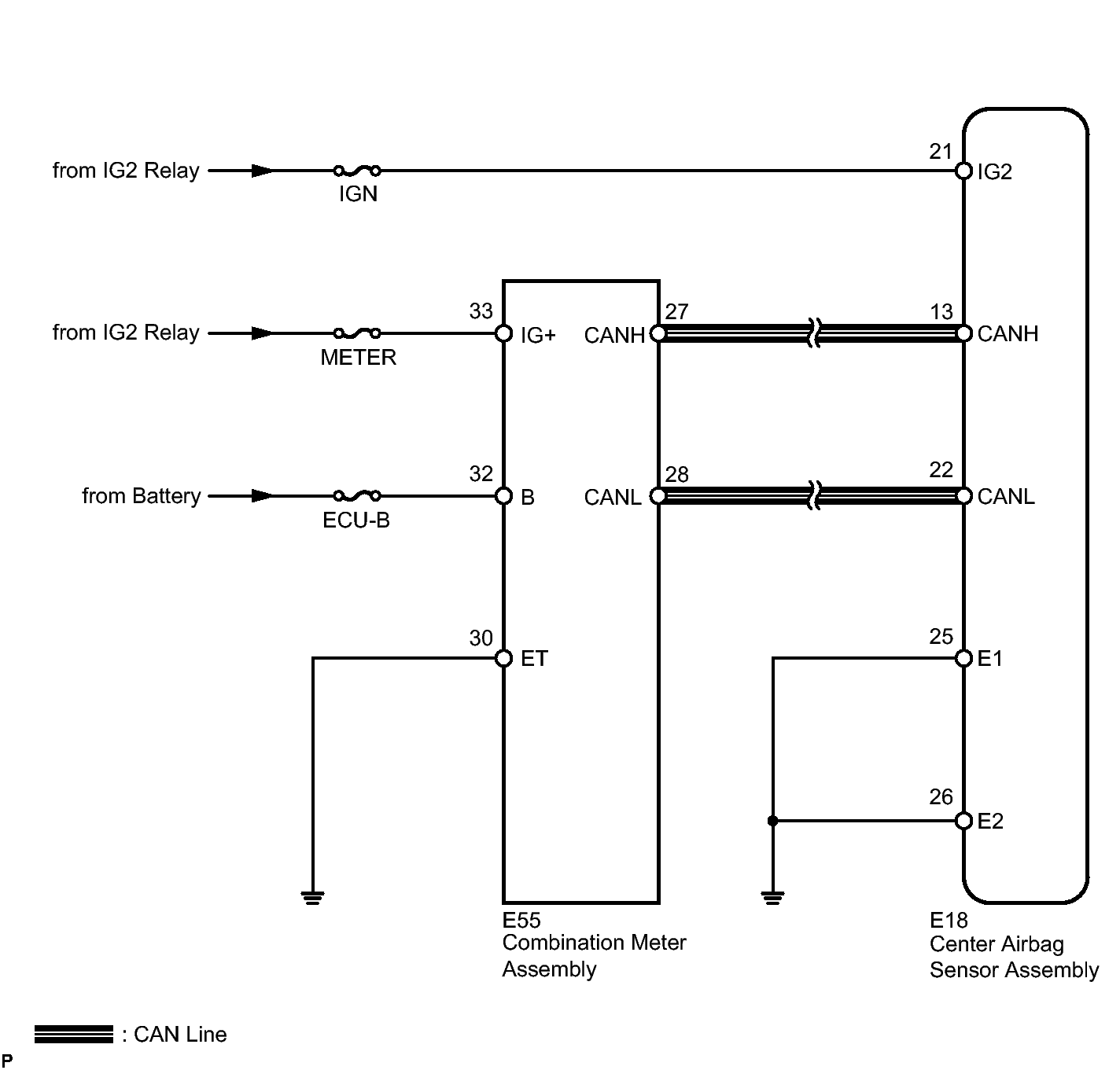

Fig 1: SRS Warning Light Circuit - Wiring Diagram

GTY292087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
