DTC B1451: Compressor Solenoid Circuit: Wiring Diagram

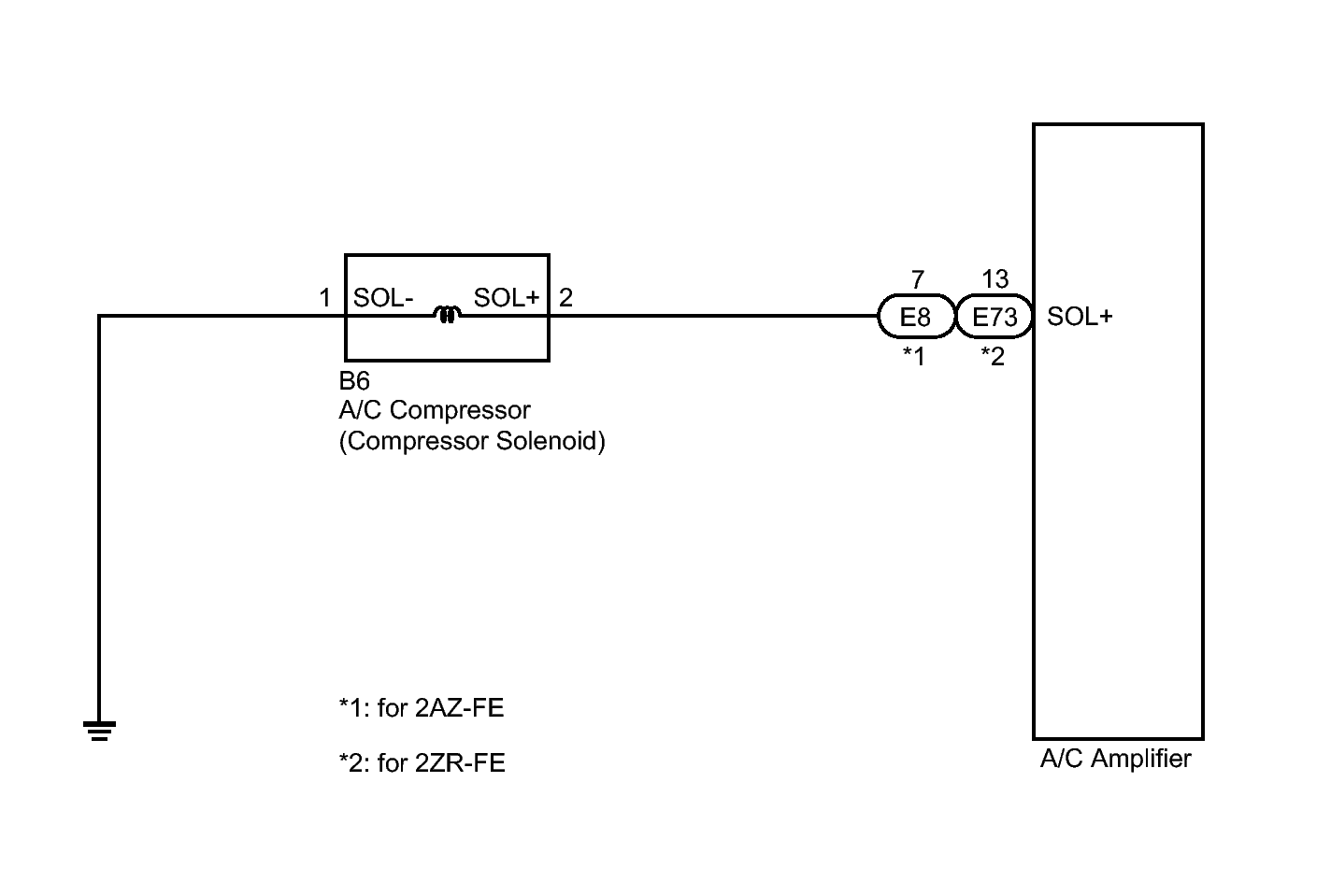

Fig 1: Compressor Solenoid Circuit - Wiring Diagram

GTY291108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
