Recirculation Damper Servo Motor Circuit: Wiring Diagram

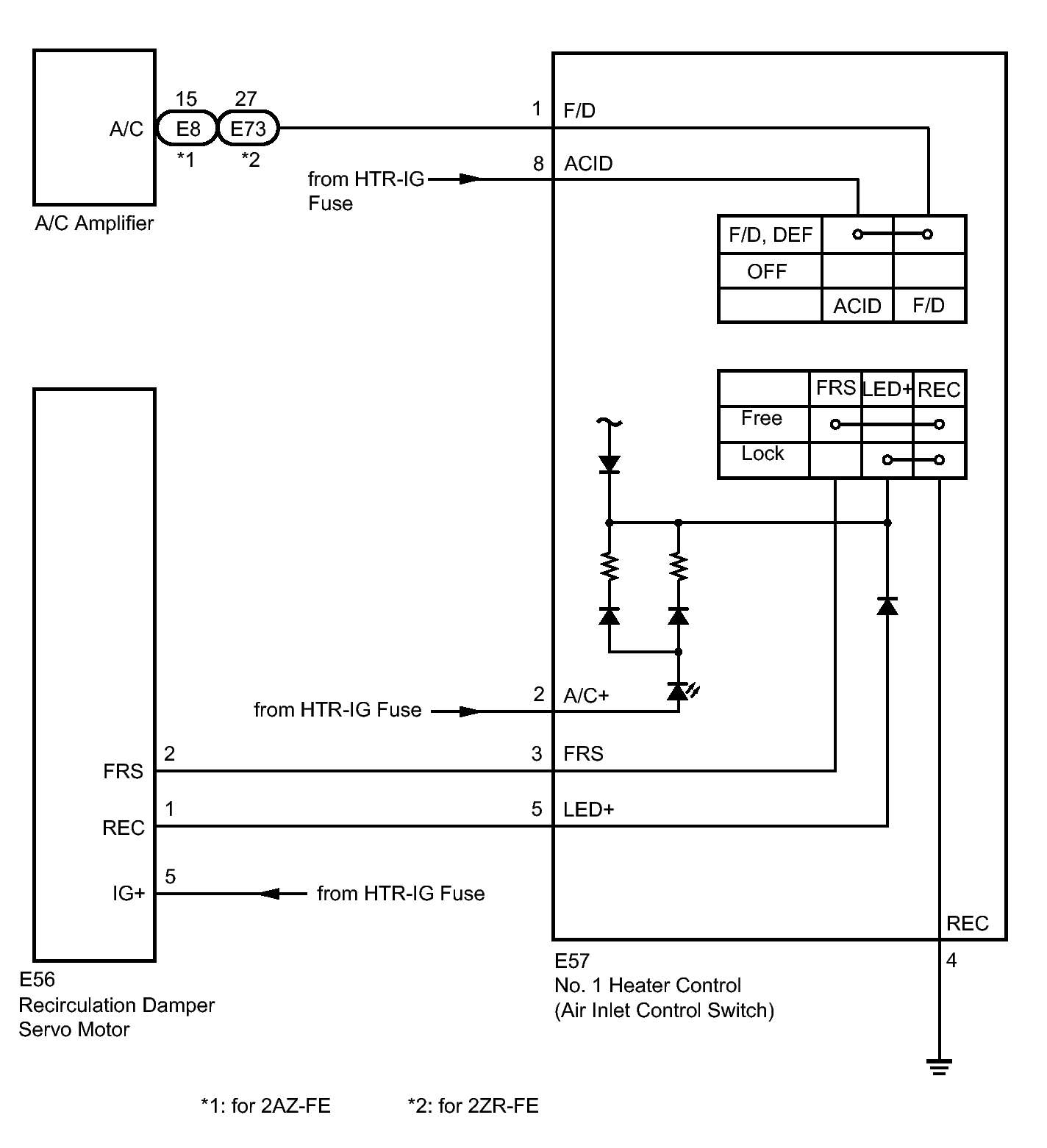

Fig 1: Recirculation Damper Servo Motor Circuit - Wiring Diagram

GTY290731
