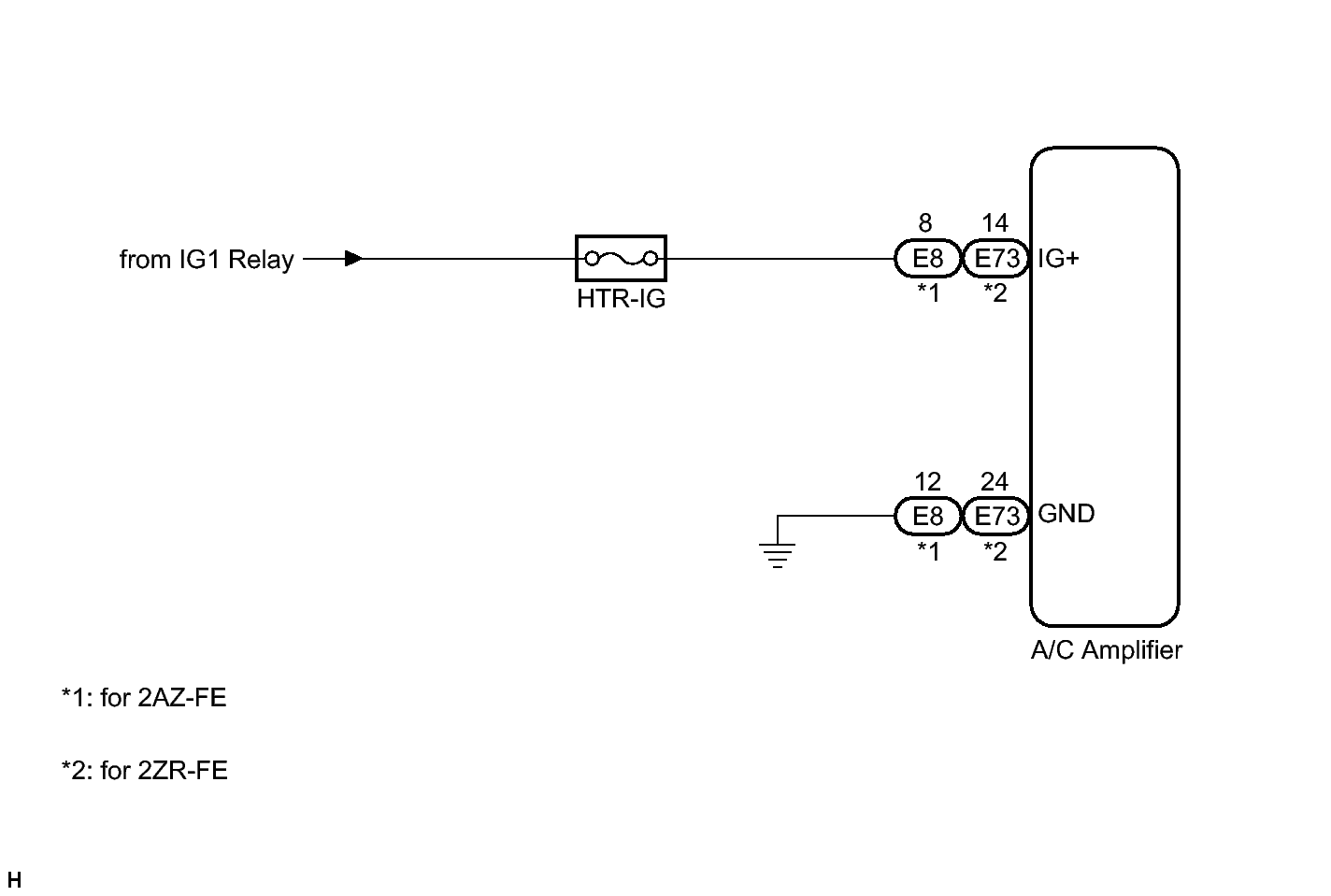

Home >> Toyota >> 2011 >> Matrix Base, Automatic >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System (Diagnostic Codes (B1412 - B1499) & Circuit Tests) >> Air Conditioning System >> Circuit Tests >> IG Power Source Circuit >> Wiring Diagram
