DTC P0504: Brake Switch "A" / "B" Correlation: Wiring Diagram

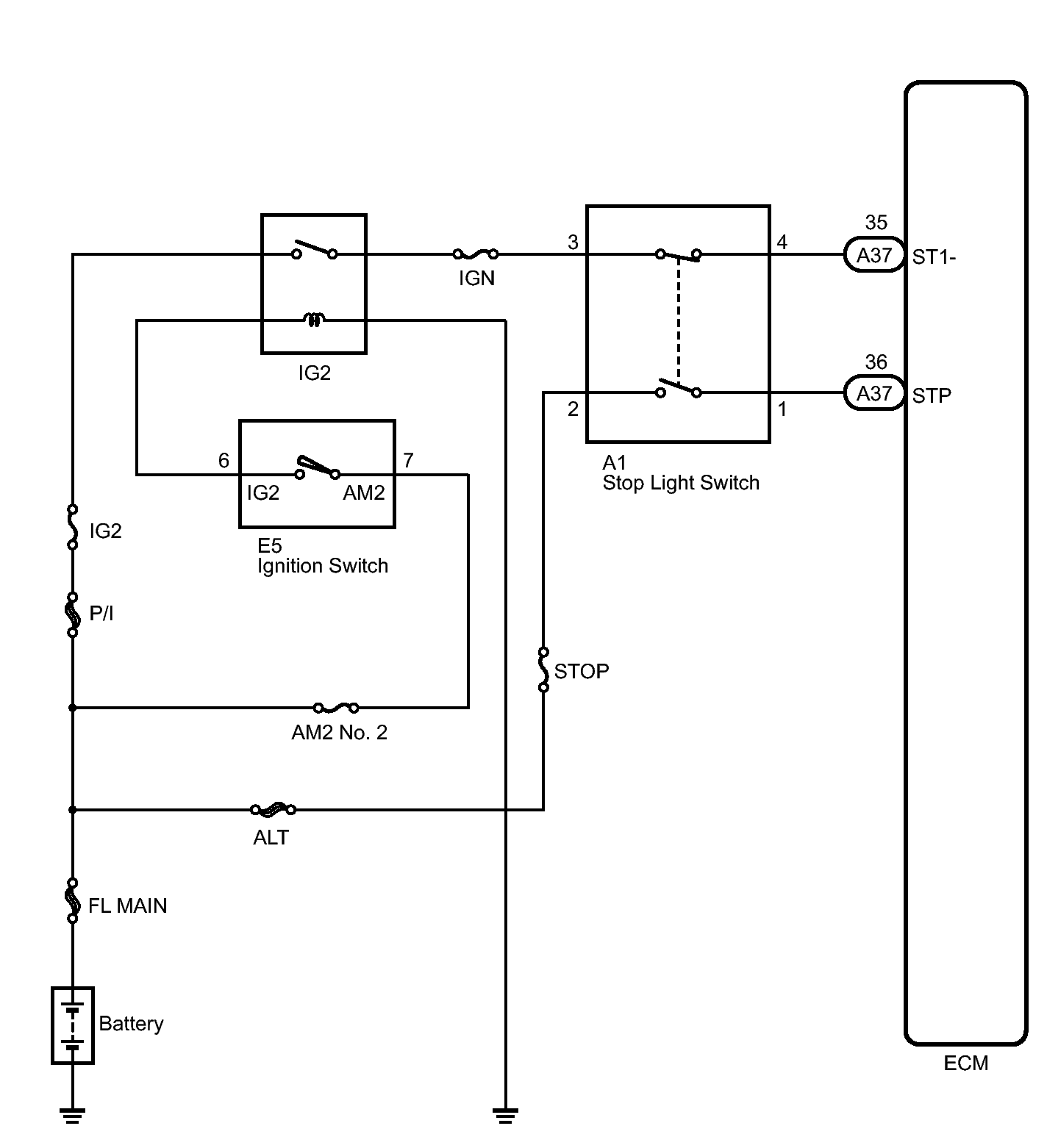

Fig 1: Brake Switch "A" / "B" Correlation Circuit - Wiring Diagram

GTY238325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
