Overall Electrical Wiring Diagram: Starting

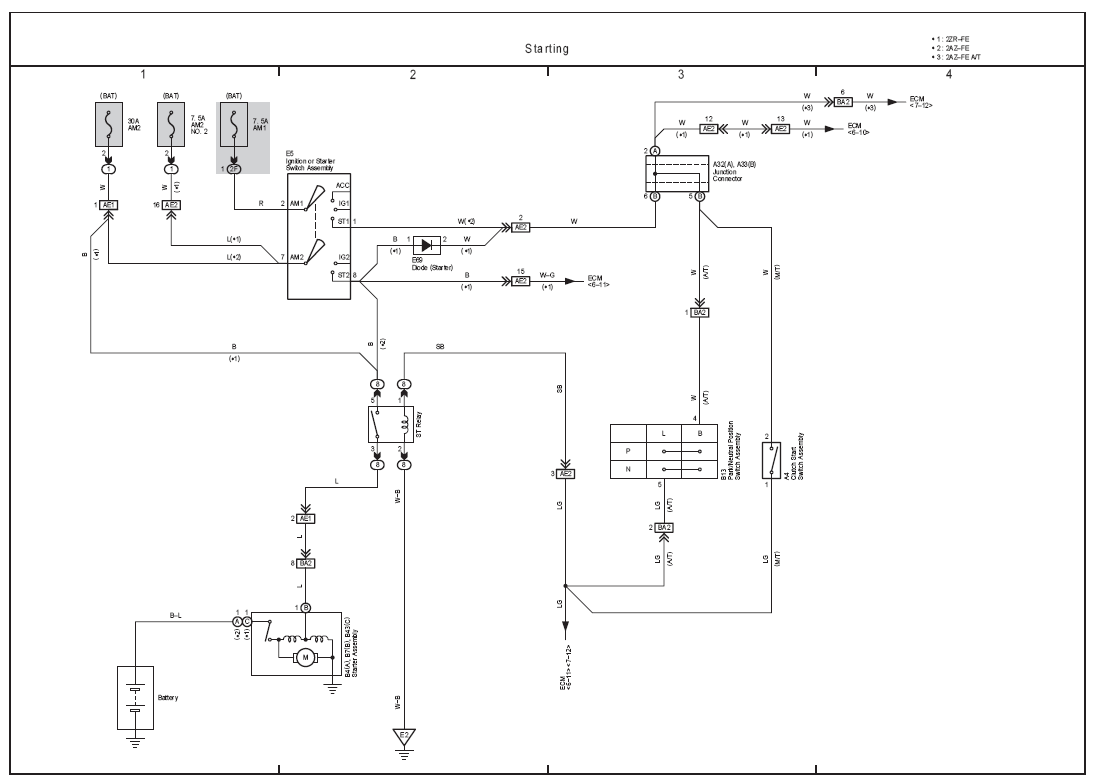

Fig 1: Starting Electrical Wiring Diagram

G07114389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
