Front Fog Light; Headlight

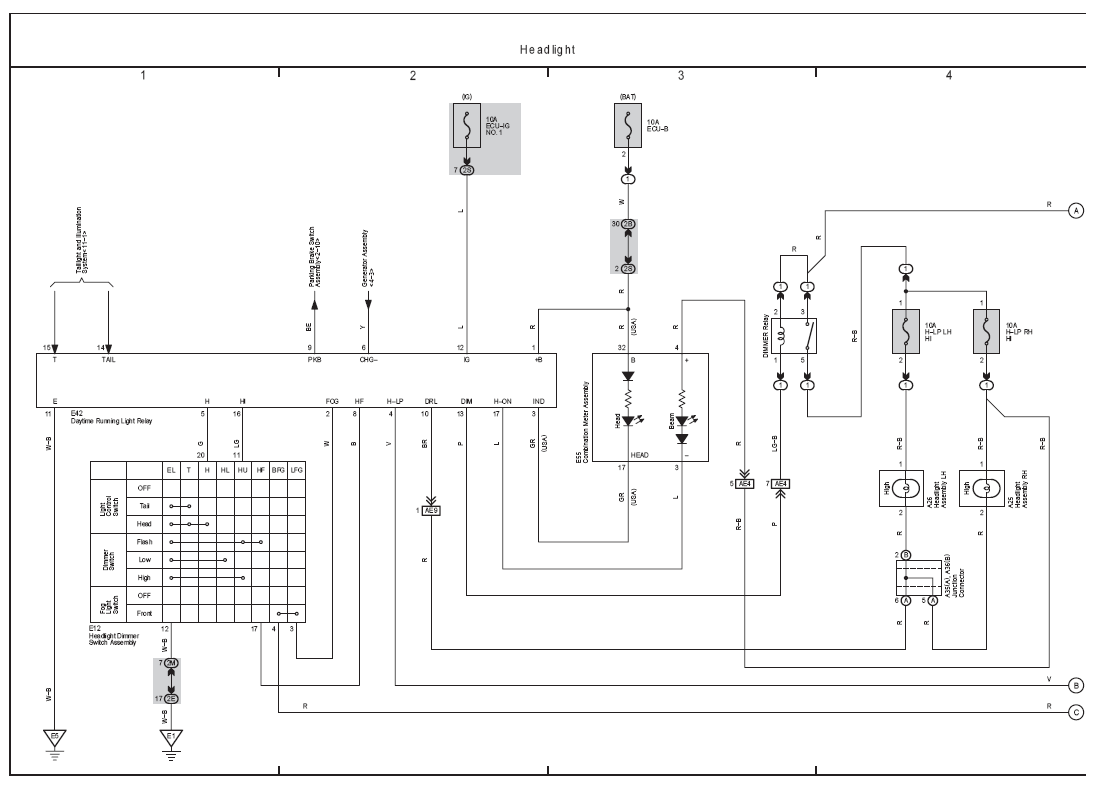

Fig 1: Headlight Electrical Wiring Diagram
G07114404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

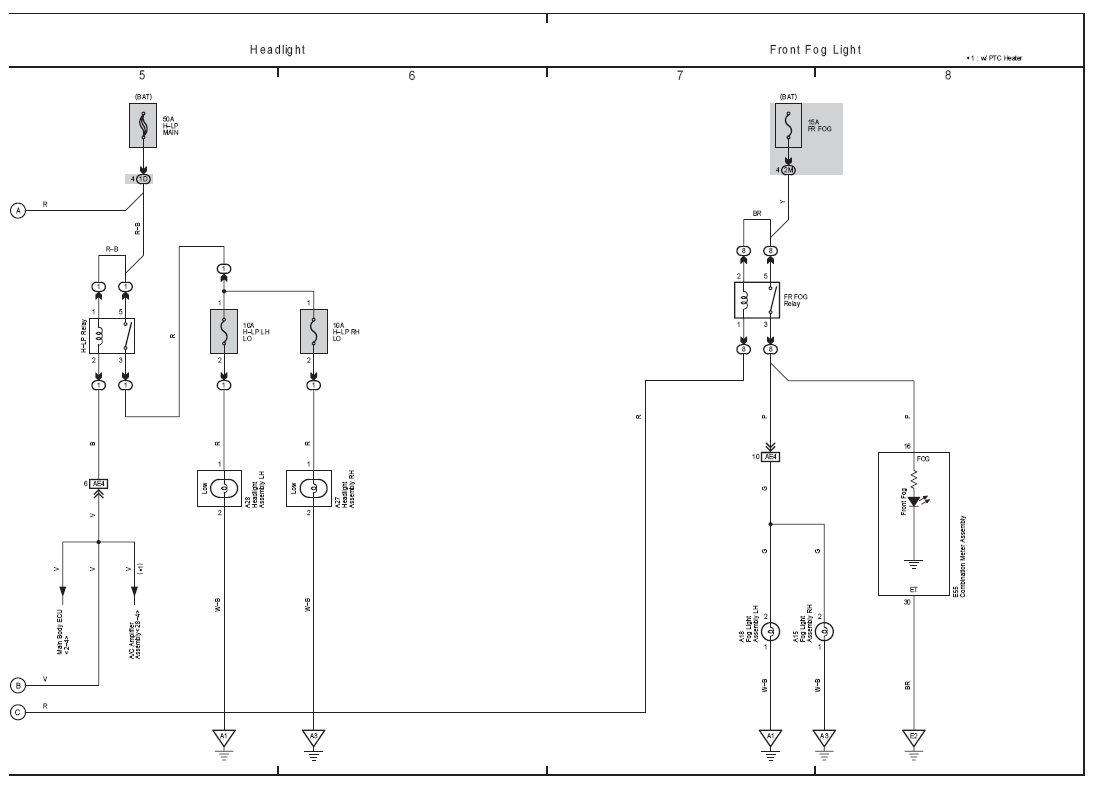

Fig 2: Headlight And Front Fog Light Electrical Wiring Diagram
G07114405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
