Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Data Link Connector 3; Engine Immobiliser System
Data Link Connector 3; Engine Immobiliser System

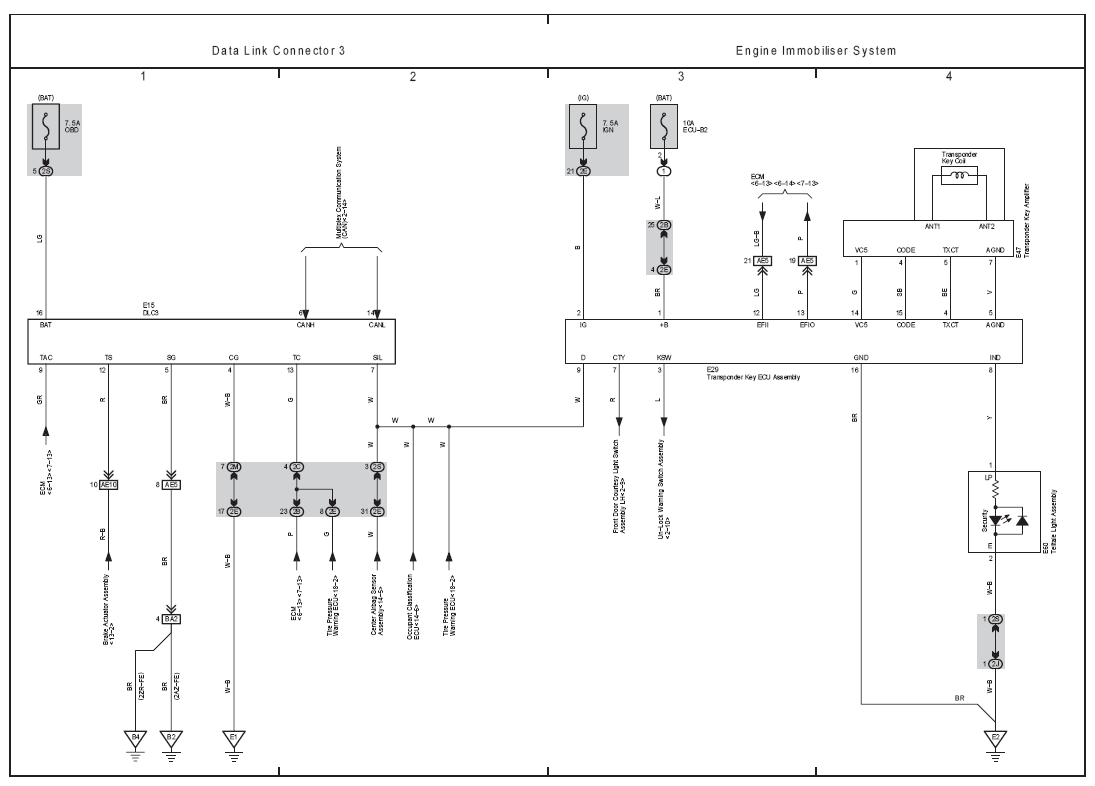

Fig 1: Data Link Connector 3 And Engine Immobiliser System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
