Position of Parts in Engine Compartment: 2ZR-FE

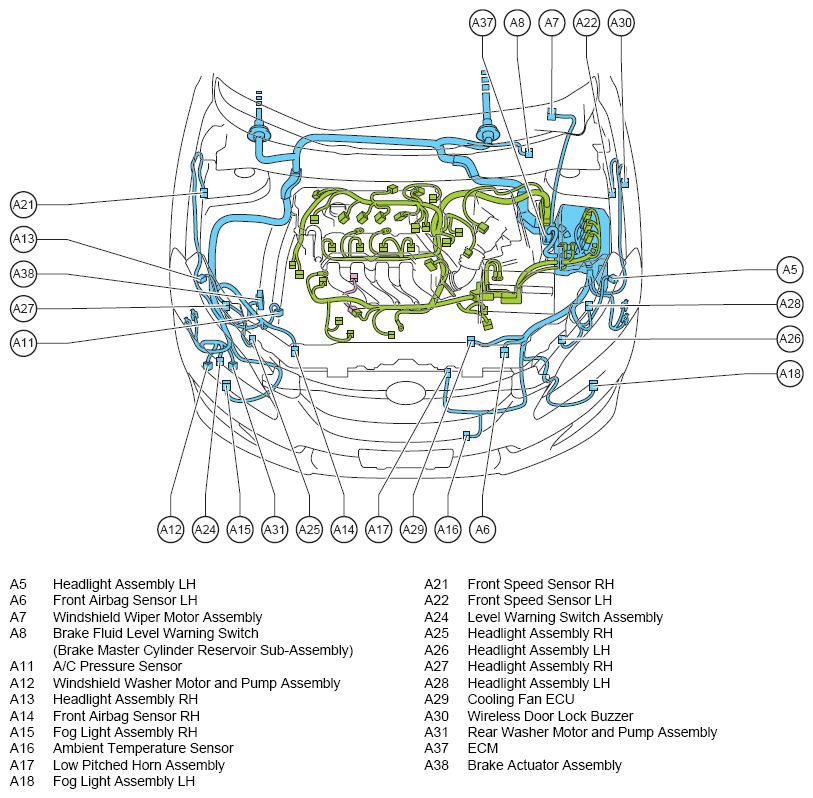

Fig 1: Engine Compartment Parts (2ZR-FE; 1 Of 2)
G07114185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

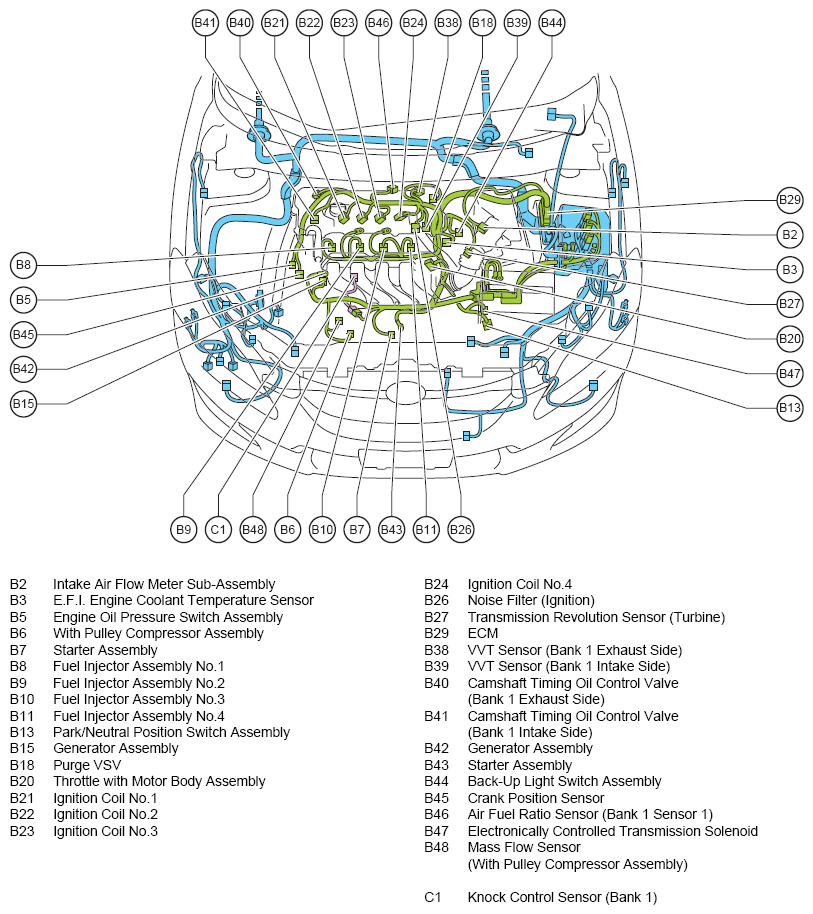

Fig 2: Engine Compartment Parts (2ZR-FE; 2 Of 2)
G07114186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
