Position of Parts in Engine Compartment: 2AZ-FE

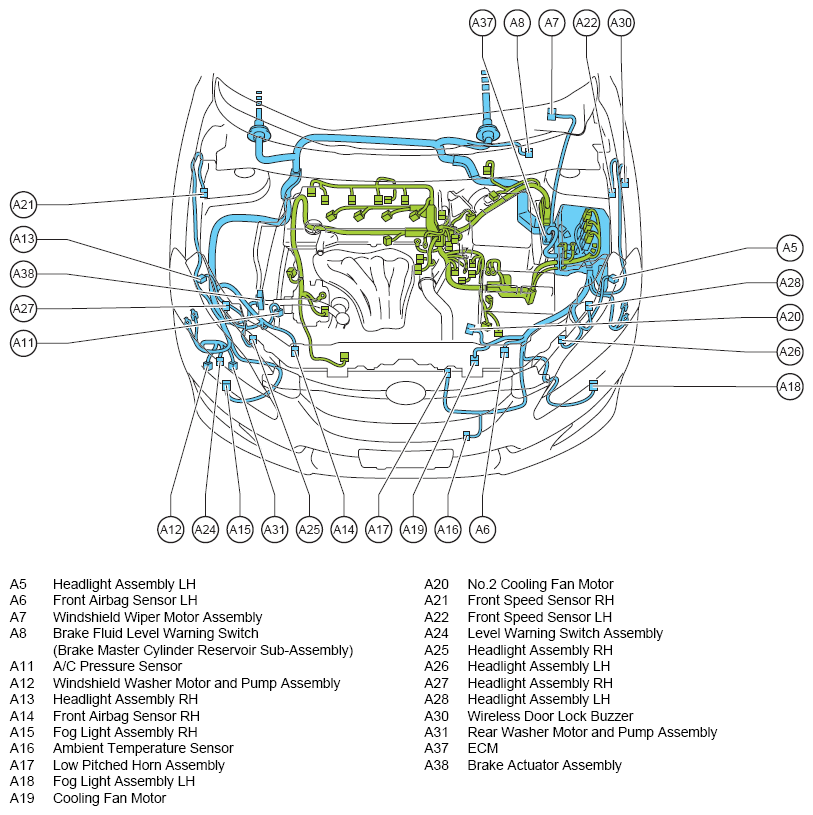

Fig 1: Engine Compartment Parts (2AZ-FE; 1 Of 2)
G07114183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

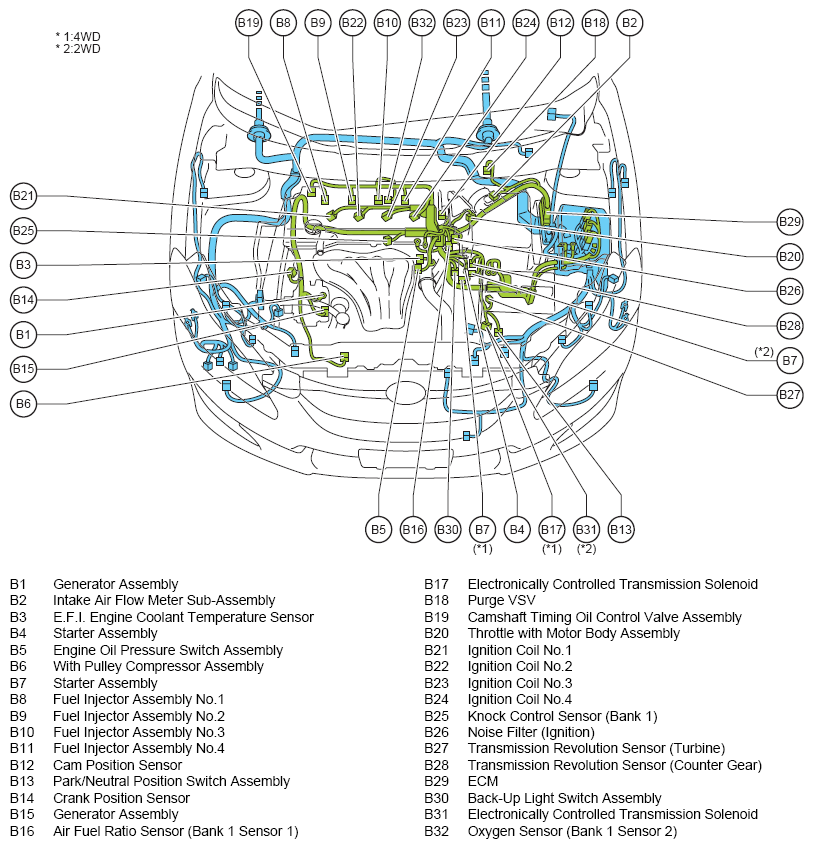

Fig 2: Engine Compartment Parts (2AZ-FE; 2 Of 2)
G07114184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
