Seat Belt Warning; Power Outlet (115V)

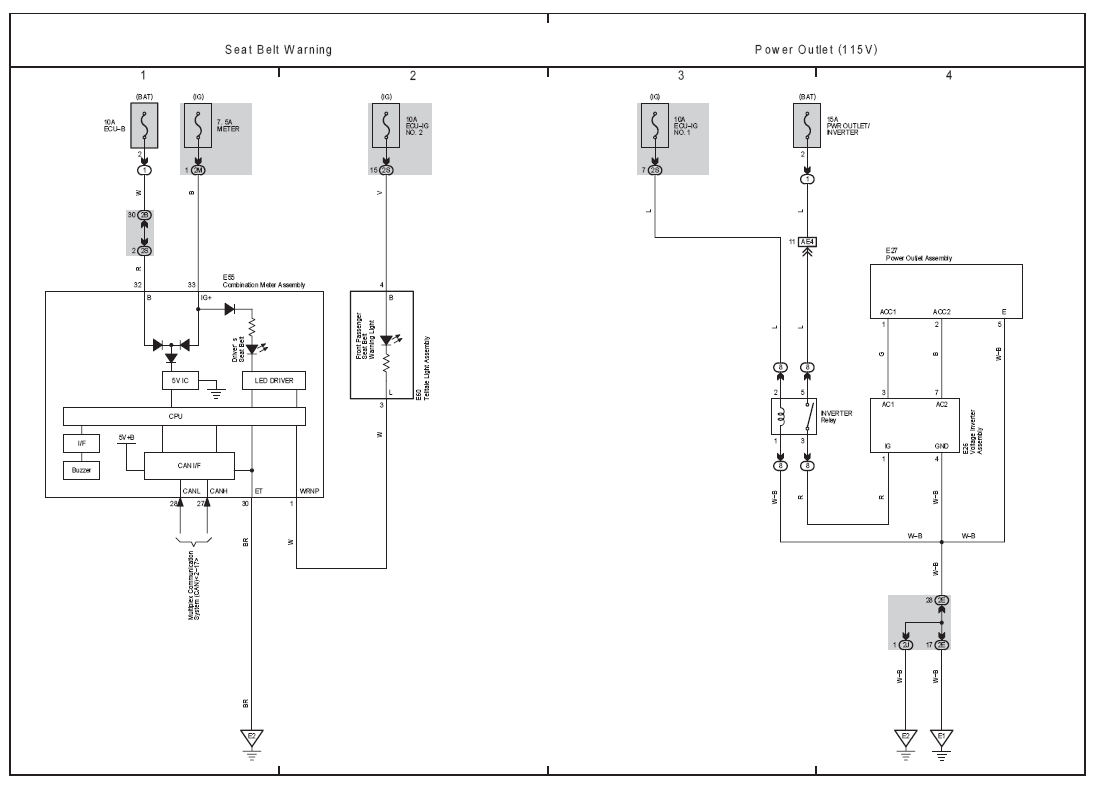

Fig 1: Seat Belt Warning And Power Outlet (115V) Electrical Wiring Diagram

G07114423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
