Illumination; Light Reminder; Taillight

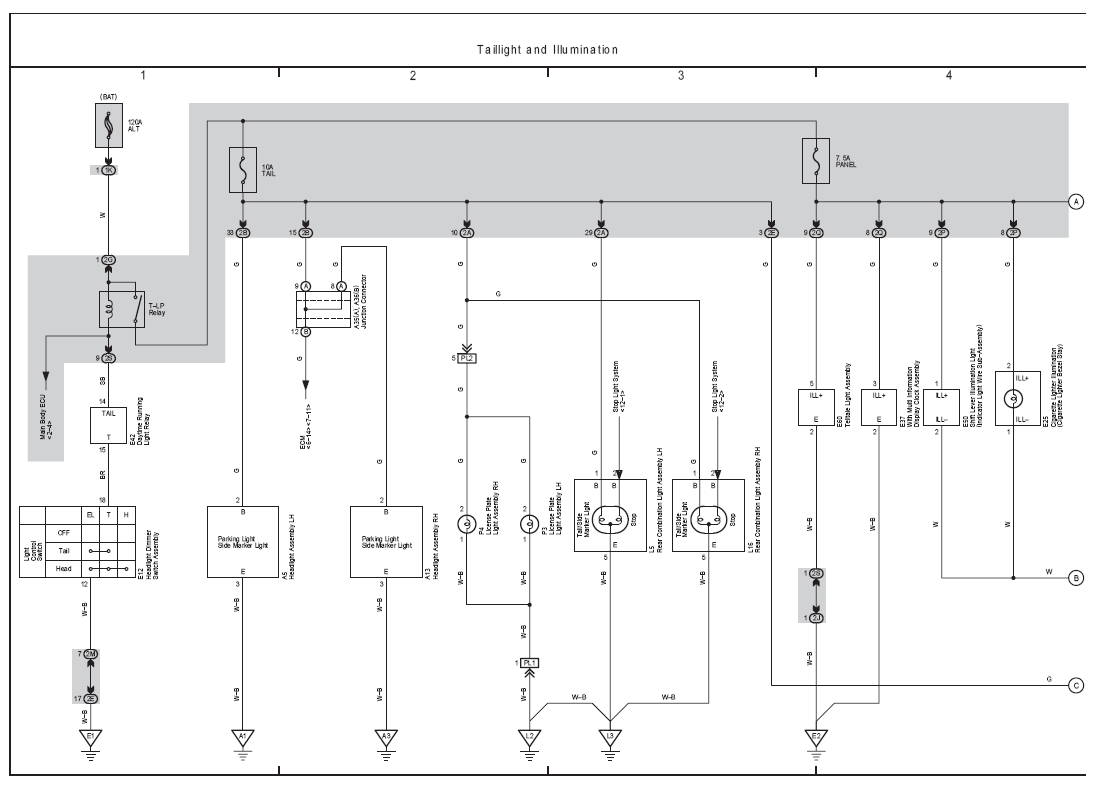

Fig 1: Taillight And Illumination Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

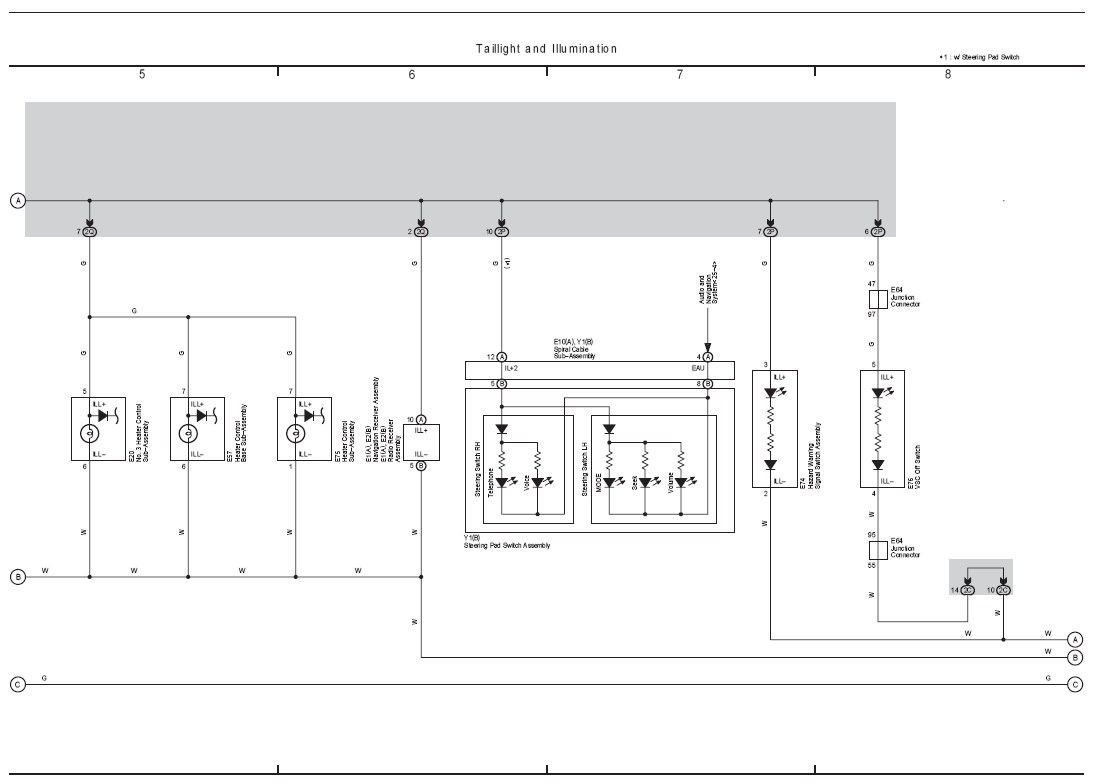

Fig 2: Taillight And Illumination Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

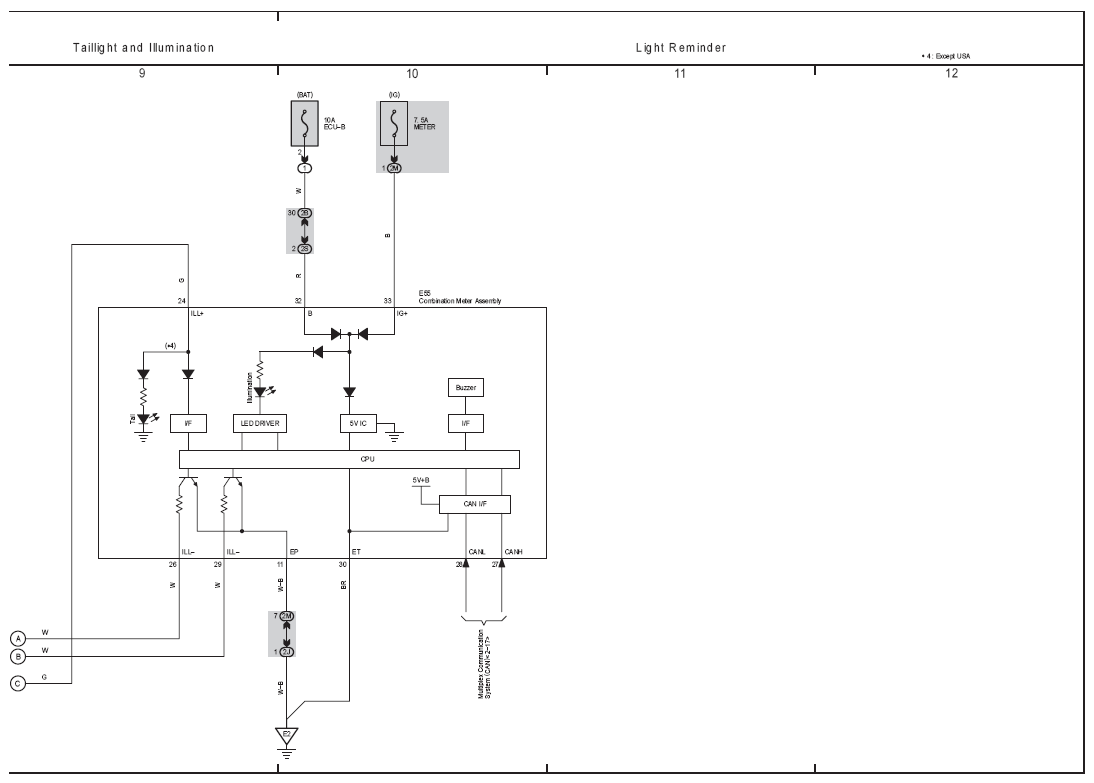

Fig 3: Taillight And Illumination With Light Reminder Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
