Cruise Control (2ZR-FE); Electronically Controlled Transmission and A/T Indicator (2ZR-FE); Engine Control (2ZR-FE)

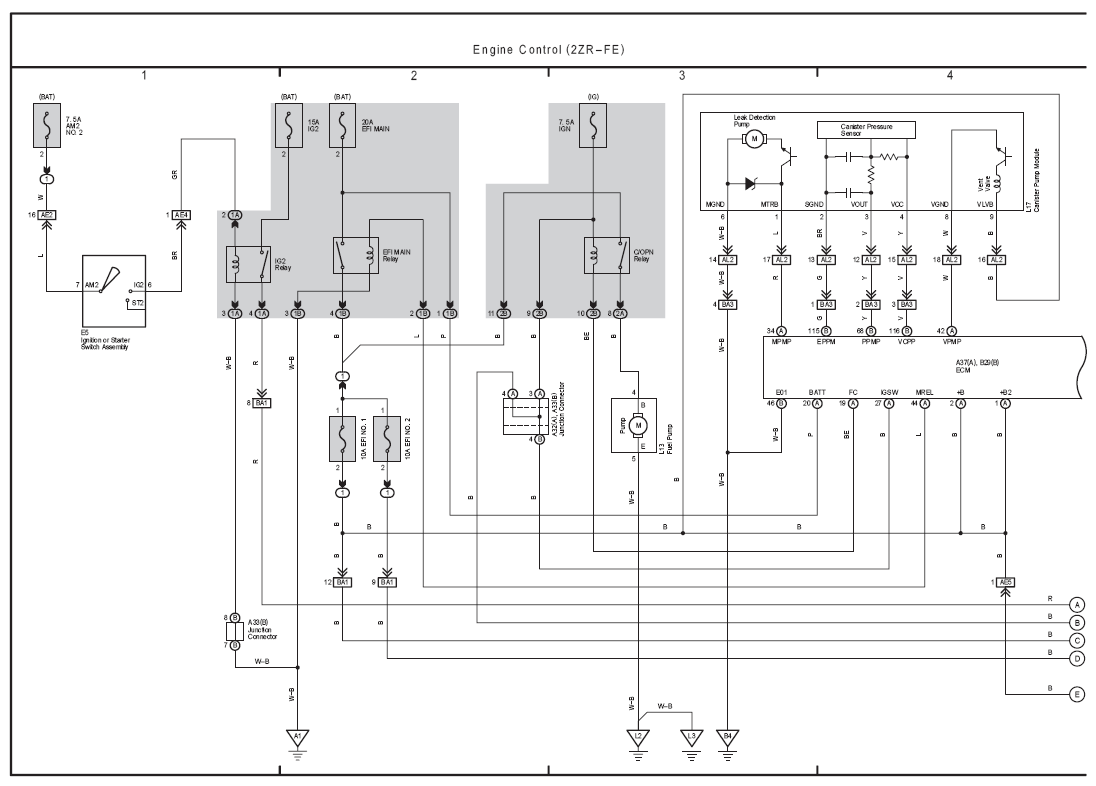

Fig 1: Engine Control (2ZR-FE) Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

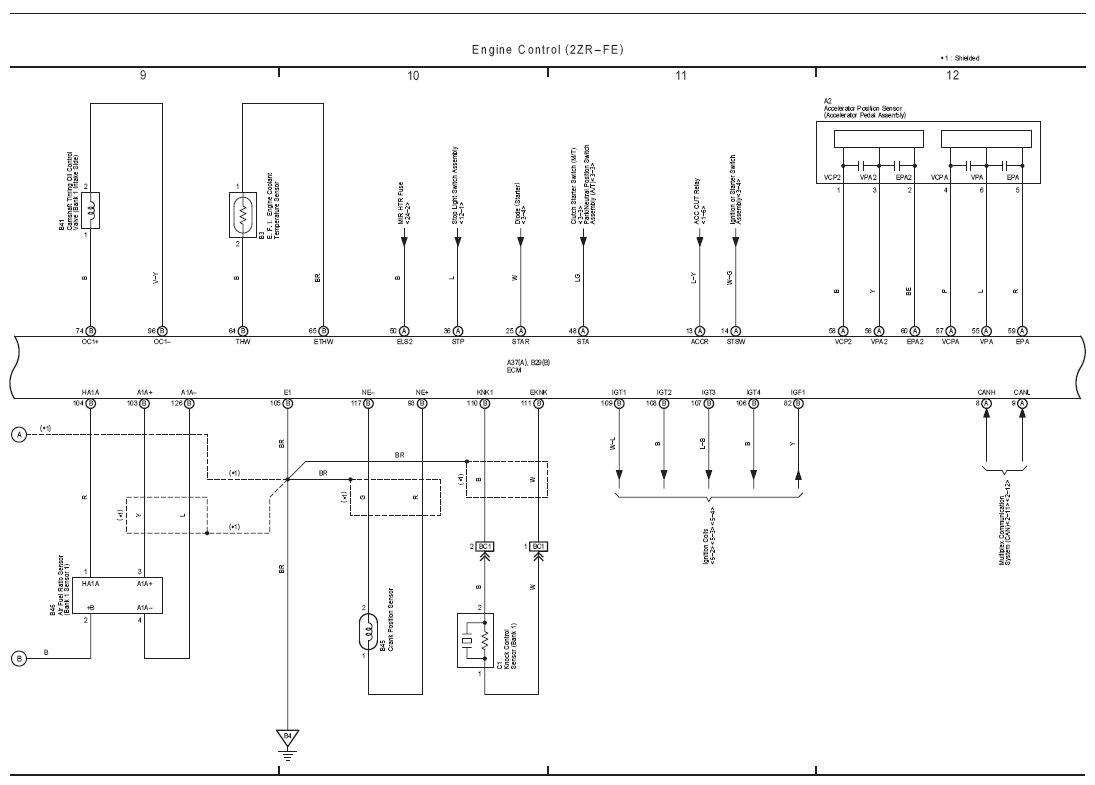

Fig 2: Engine Control (2ZR-FE) Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

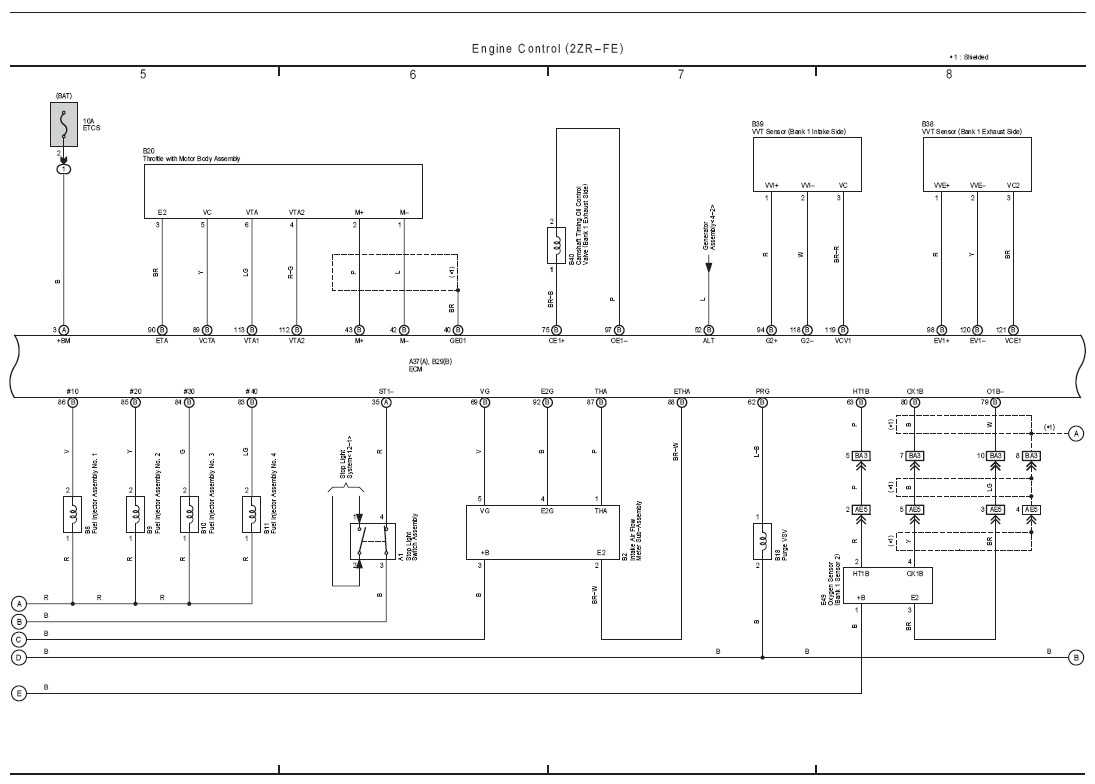

Fig 3: Engine Control (2ZR-FE) Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

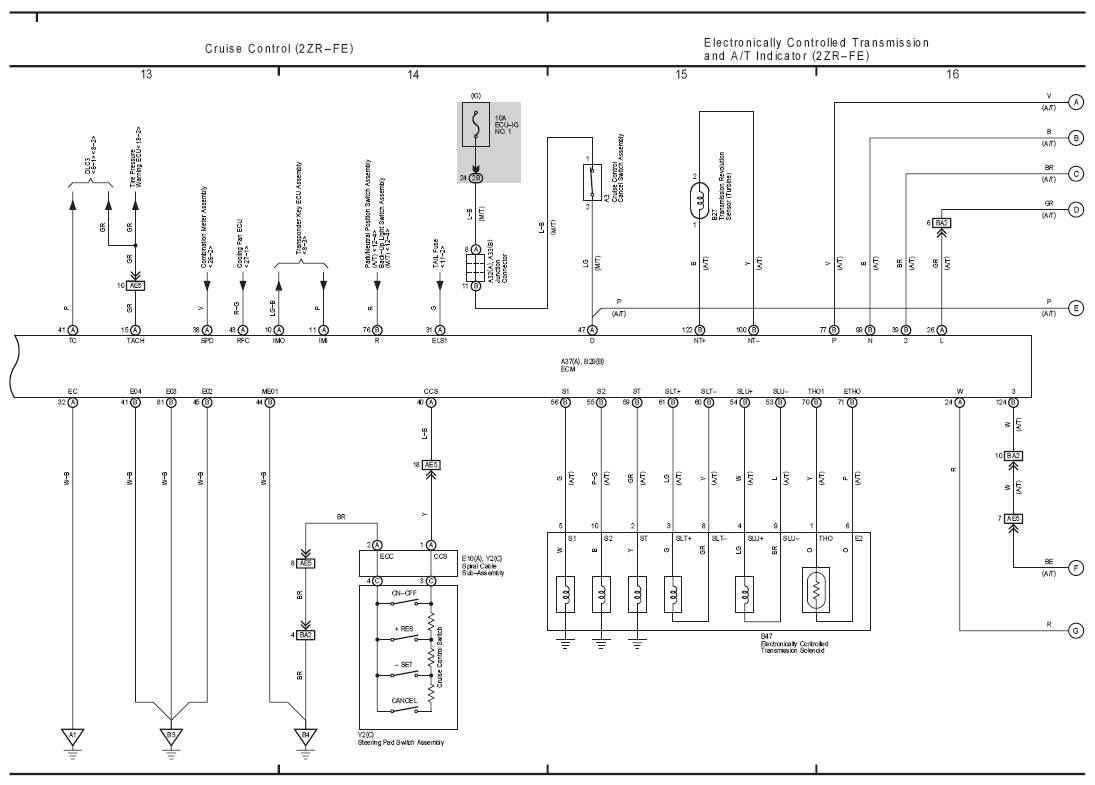

Fig 4: Cruise Control (2ZR-FE) And Electronically Controlled Transmission And A/T Indicator (2ZR-FE) Electrical Wiring Diagram

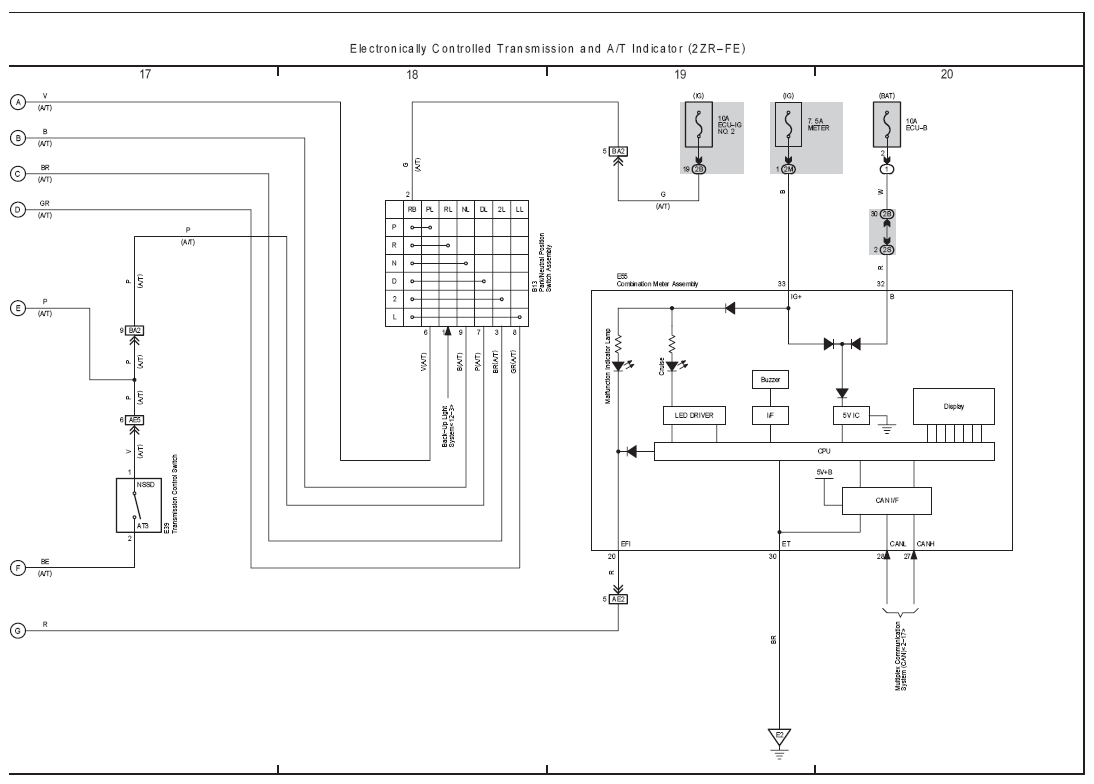

Fig 5: Electronically Controlled Transmission And A/T Indicator (2ZR-FE) Electrical Wiring Diagram
