Cooling Fan (2AZ-FE); Cooling Fan (2ZR-FE)
Cooling Fan (2AZ-FE); Cooling Fan (2ZR-FE)

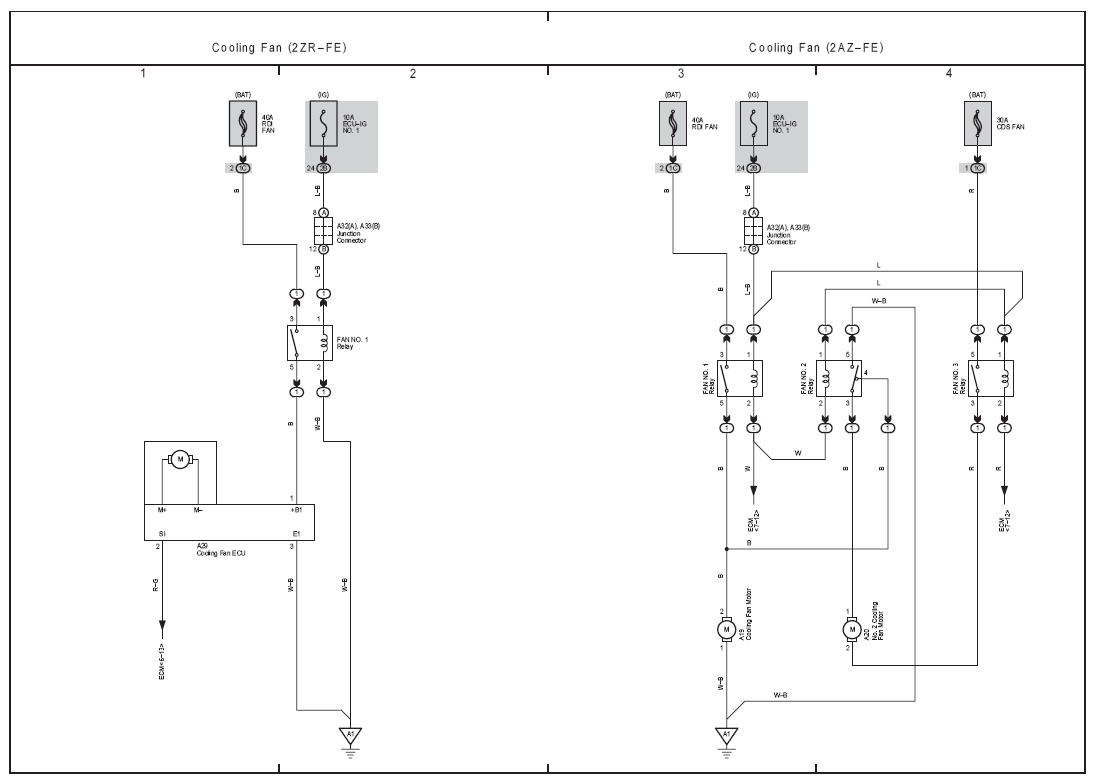

Fig 1: Cooling Fan (2ZR-FE) And Cooling Fan (2AZ-FE) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
