Cigarette Lighter; Rear Window Defogger; Power Outlet (12V); Mirror Heater

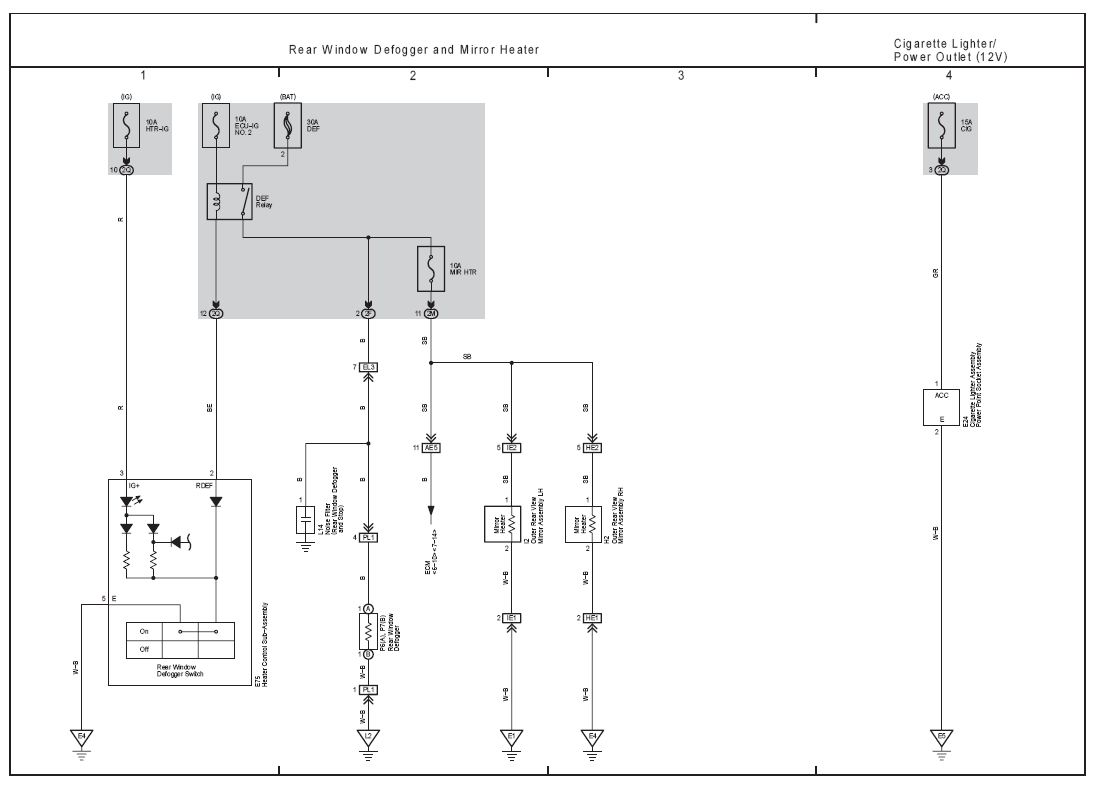

Fig 1: Rear Window Defogger And Mirror Heater With Cigarette Lighter/Power Outlet (12V) Electrical Wiring Diagram
G07114424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
