Automatic Glare-Resistant EC Mirror with Compass; Sliding Roof

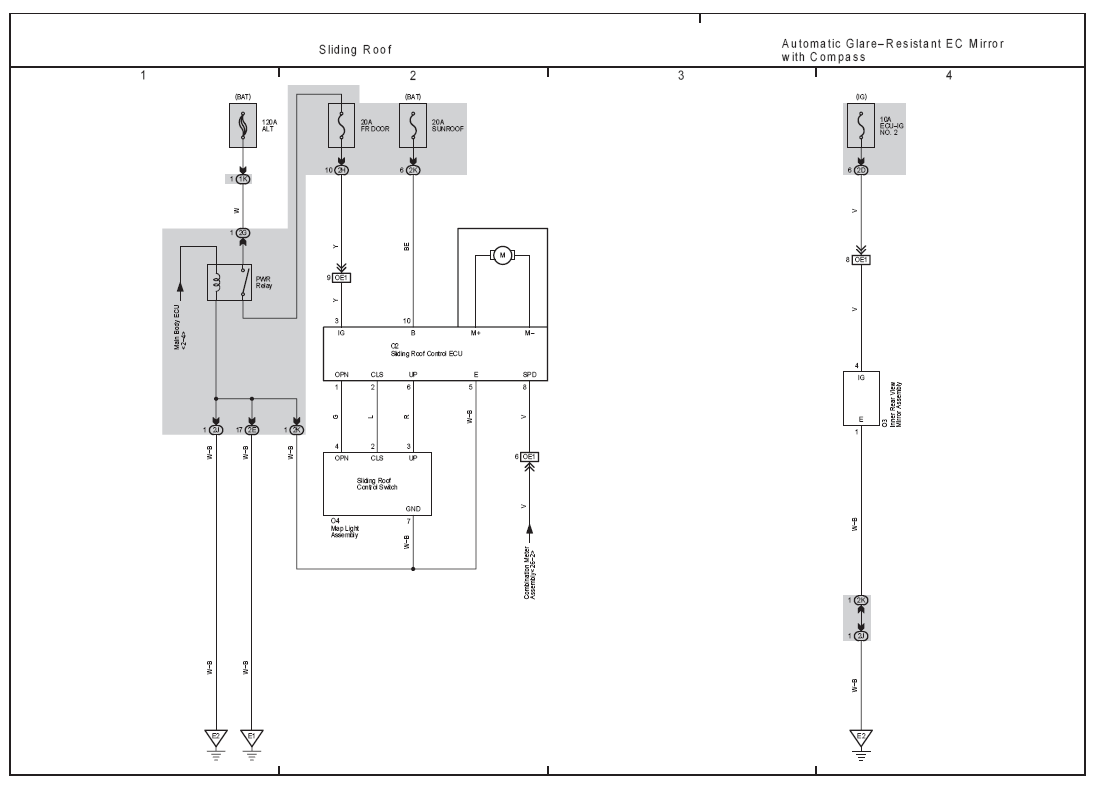

Fig 1: Sliding Roof With Automatic Glare-Resistant EC Mirror And Compass Electrical Wiring Diagram
G07114419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
