OEM Electrical Wiring Harness Routing
>>
Electrical Wiring Routing
>>
: Location of Ground Points
: Location of Ground Points

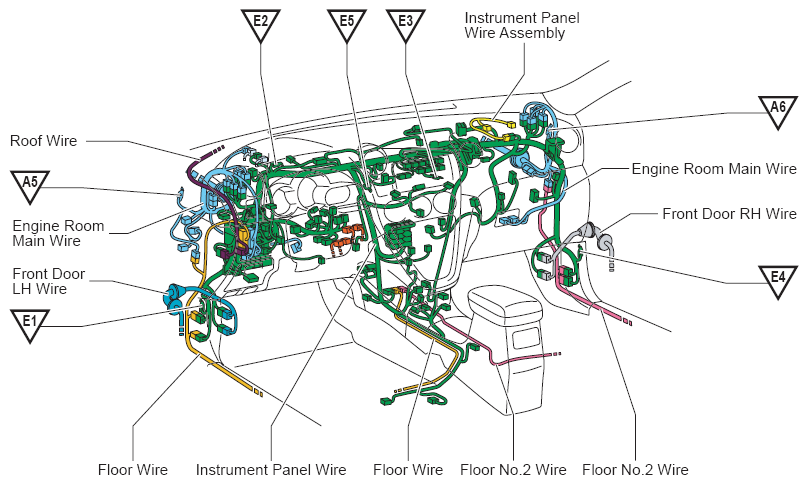

Fig 1: Locating Ground Points
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
