: Location of Connector Joining Wire Harness and Wire Harness

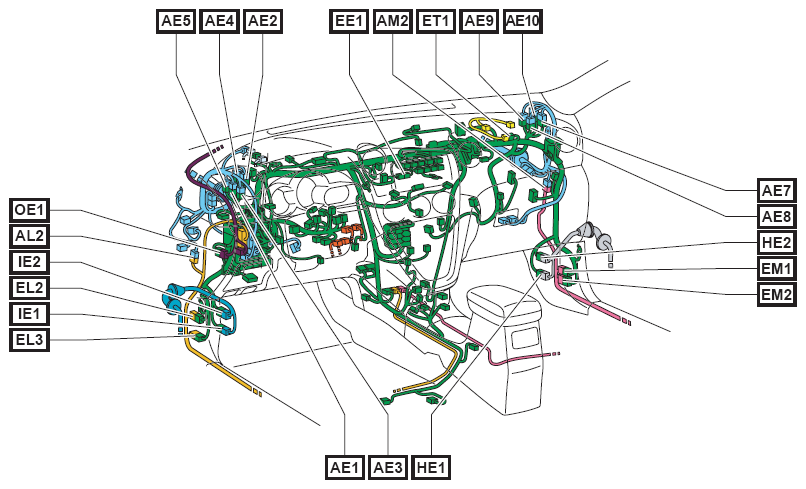

Fig 1: Locating Wiring Harness
G07114196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

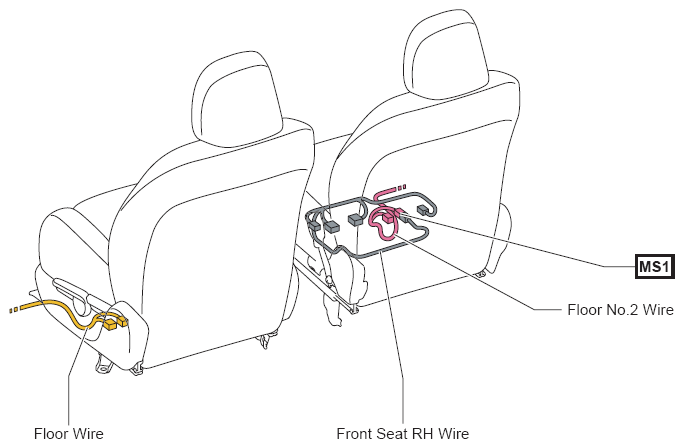

Fig 1: Locating Seat Wiring Harness
G07114199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
