: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: Overview

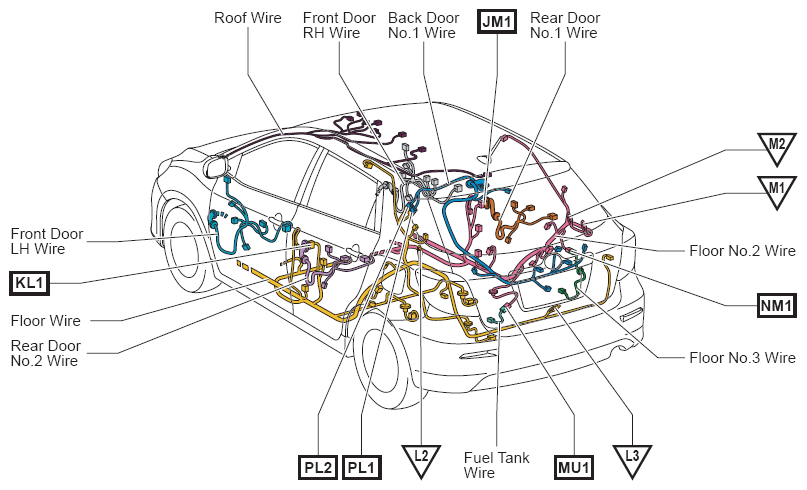

Fig 1: Locating Wiring Harness And Ground Points

G07114198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
