: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: 2ZR-FE

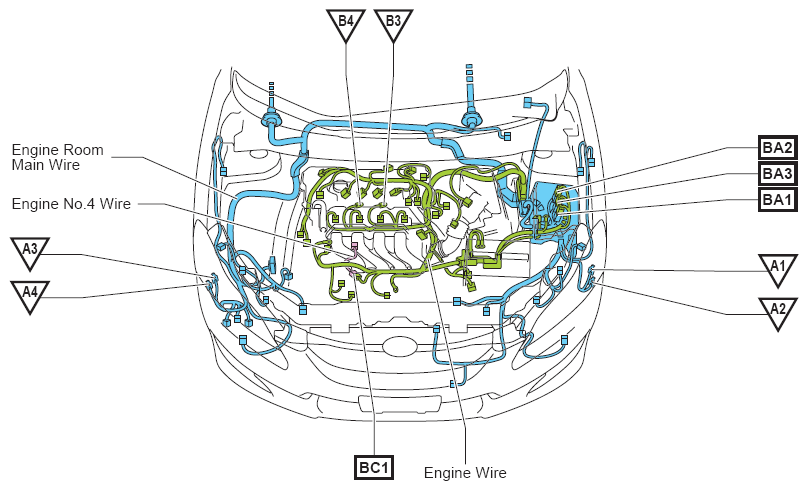

Fig 1: Locating Wiring Harness And Ground Points (2ZR-FE)
G07114195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
