Glossary Of Terms And Symbols

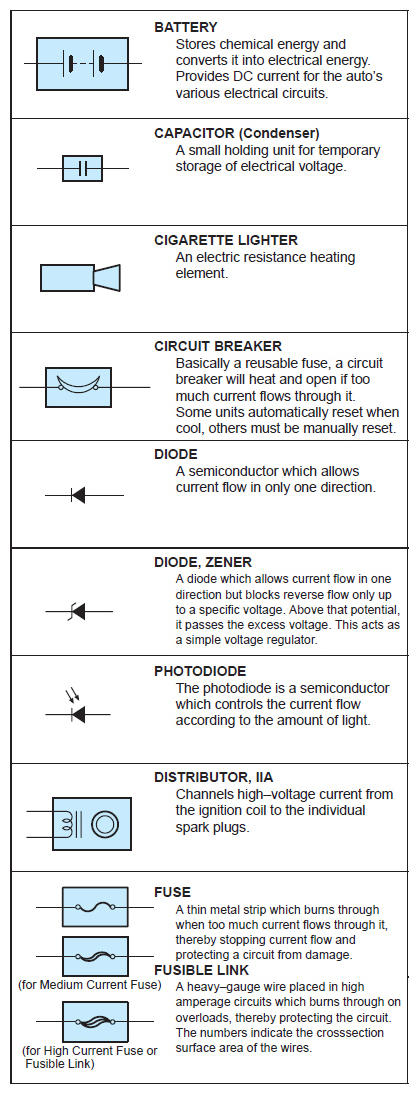

Fig 1: Glossary Of Terms And Symbols (1 Of 4)
G07111281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

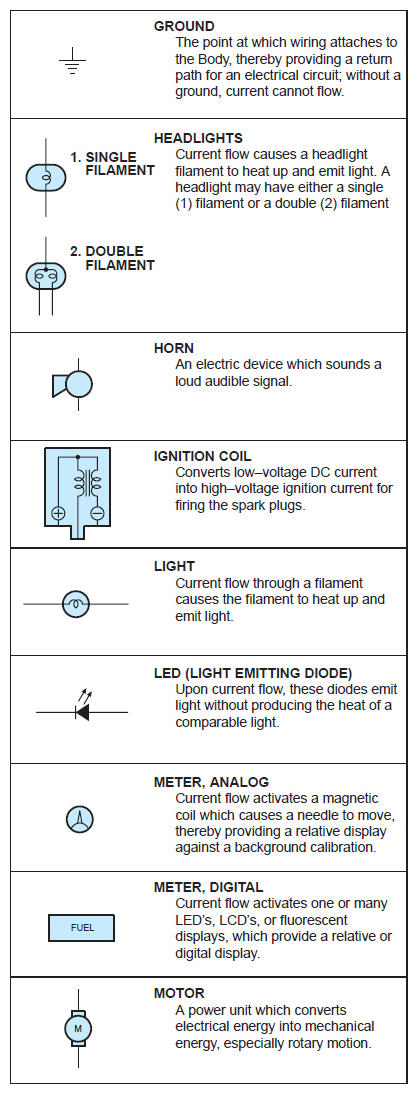

Fig 2: Glossary Of Terms And Symbols (2 Of 4)
G07111282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

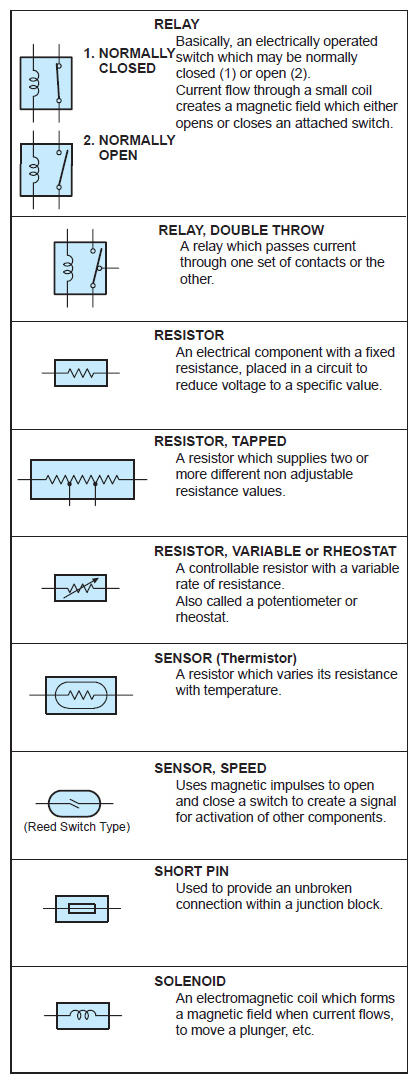

Fig 3: Glossary Of Terms And Symbols (3 Of 4)
G07111283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

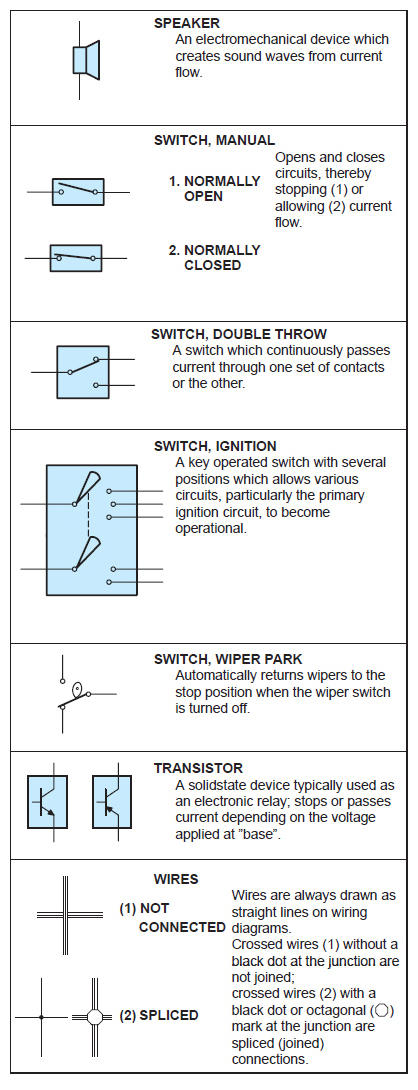

Fig 4: Glossary Of Terms And Symbols (4 Of 4)
G07111284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
