Brake Warning Light Remains ON: Wiring Diagram

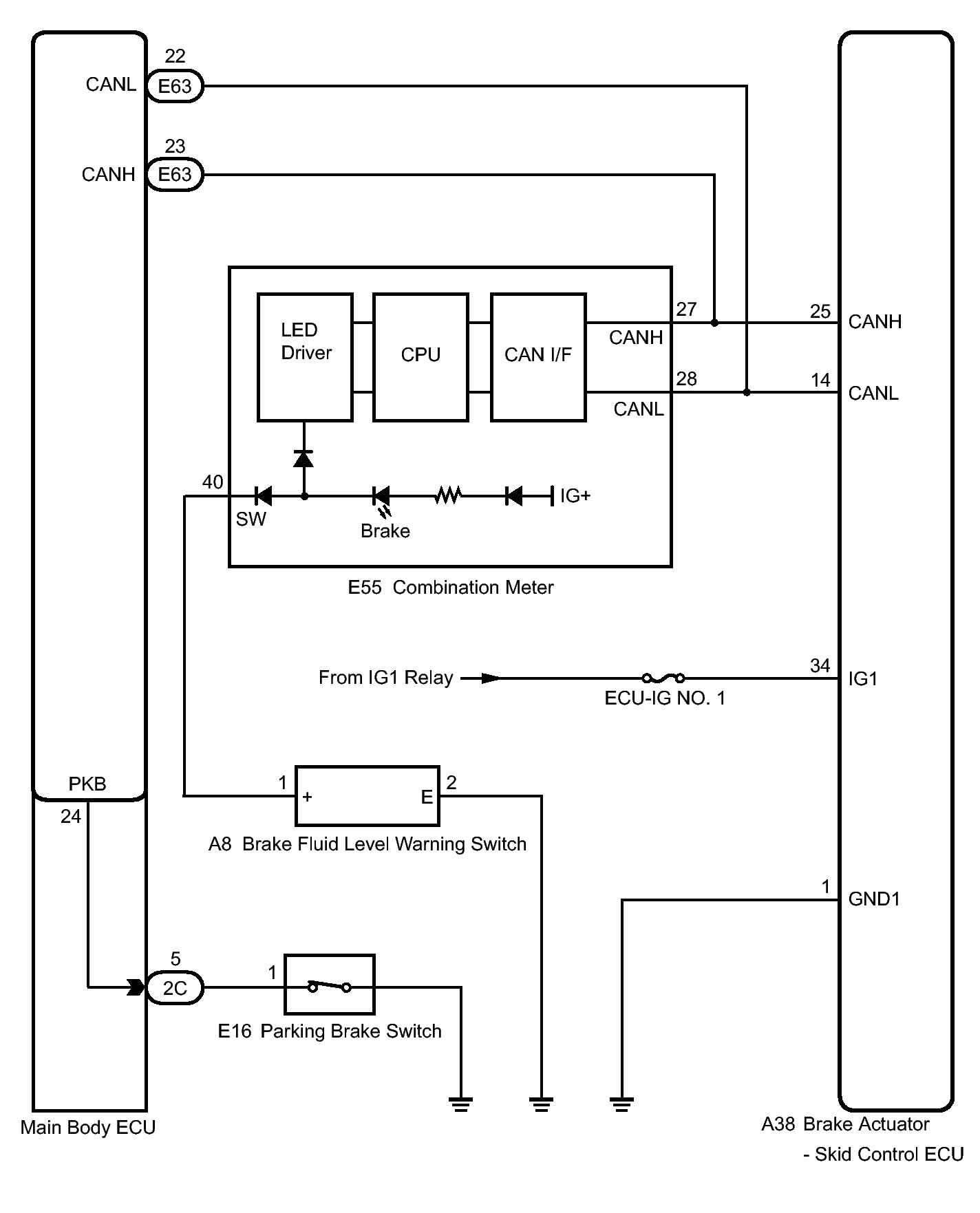

Fig 1: Brake Warning Light Circuit - Wiring Diagram

GTY225182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
