Brake Pedal: Components: Illustration

Fig 1: Identifying Brake Pedal Replacement Components (1 Of 2)
GTY290312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

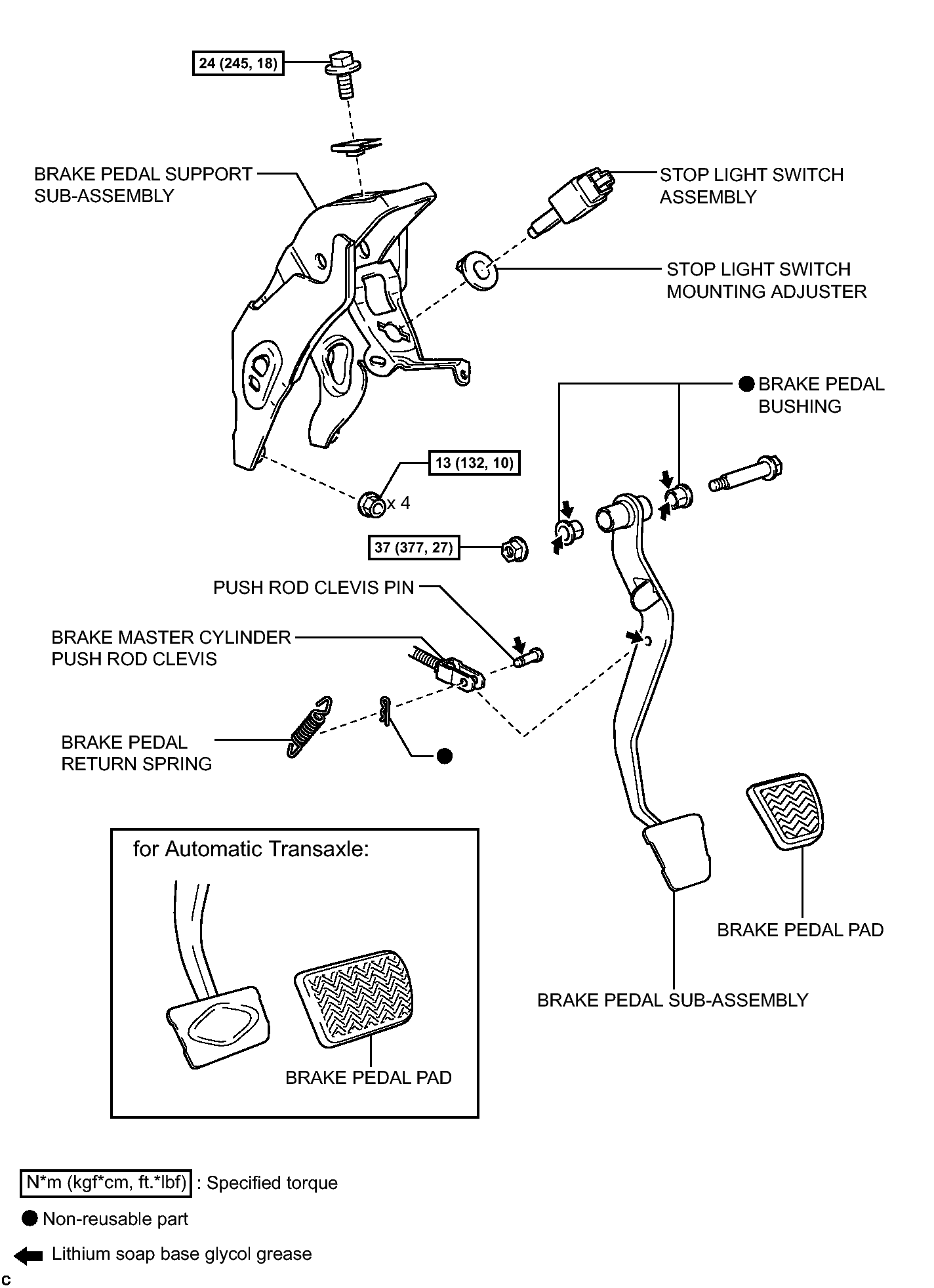

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
GTY244567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
