Rear Door: Components: Illustration

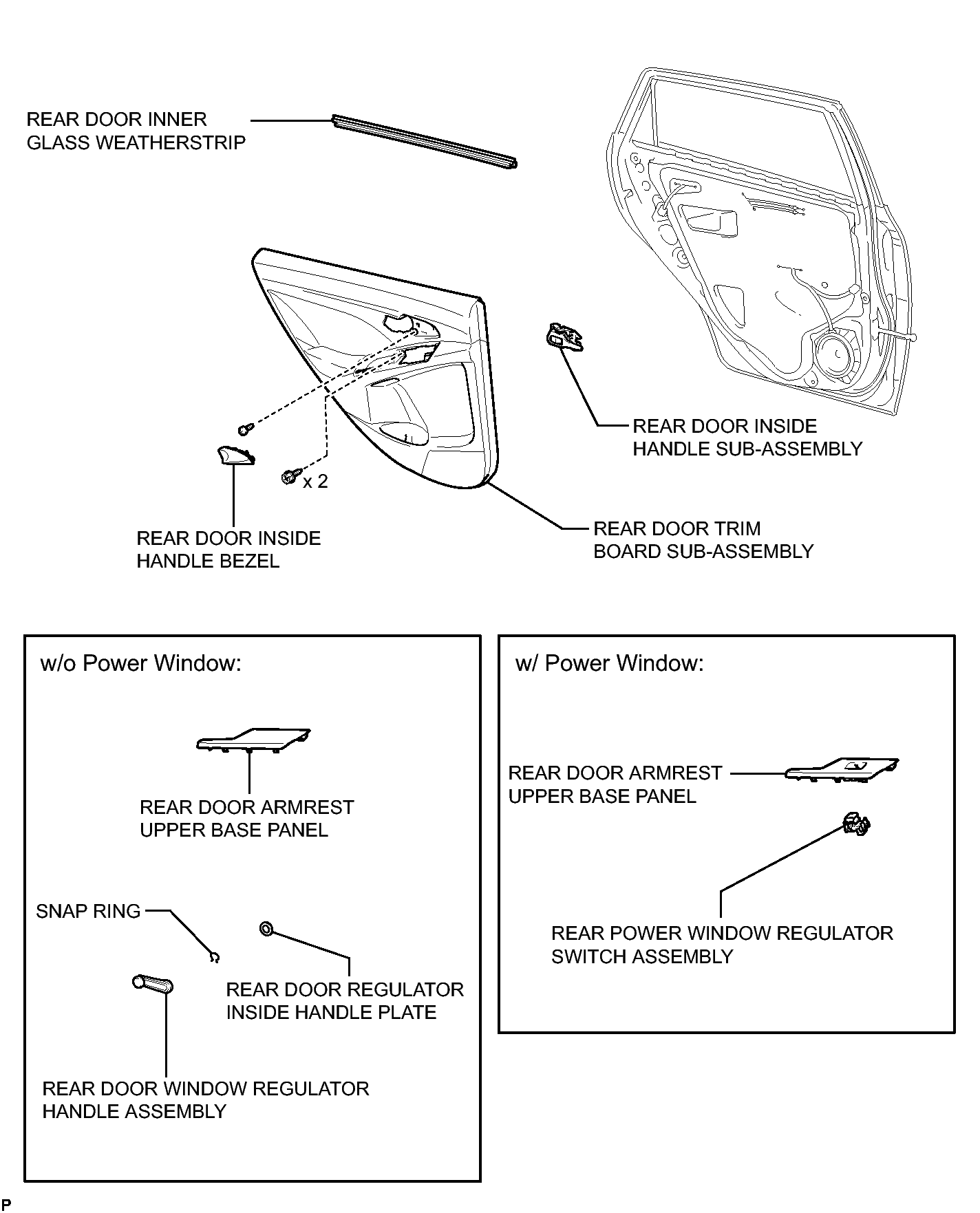

Fig 1: Identifying Rear Door Replacement Components (1 Of 4)
GTY212080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

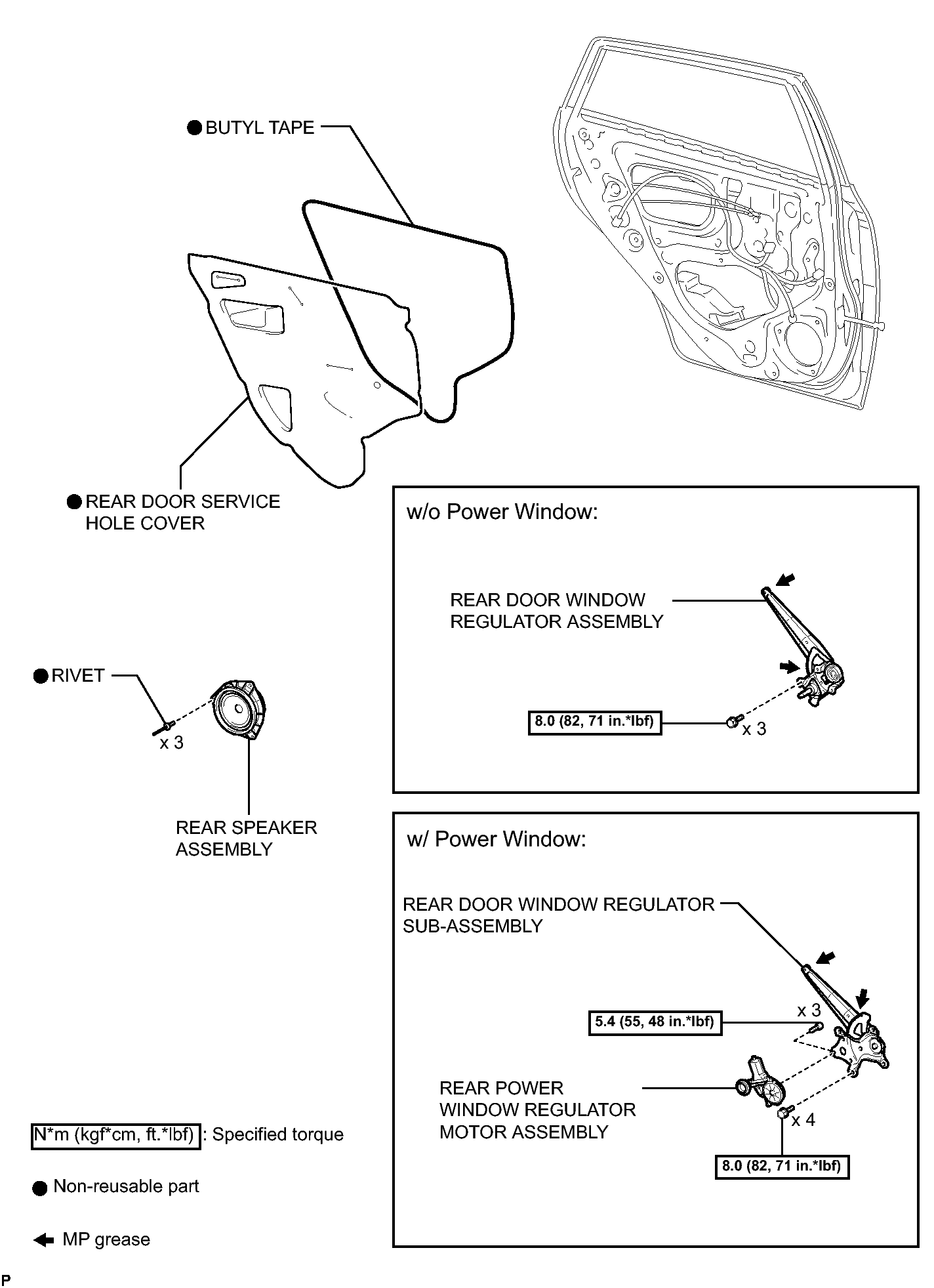

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 4)
GTY242319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

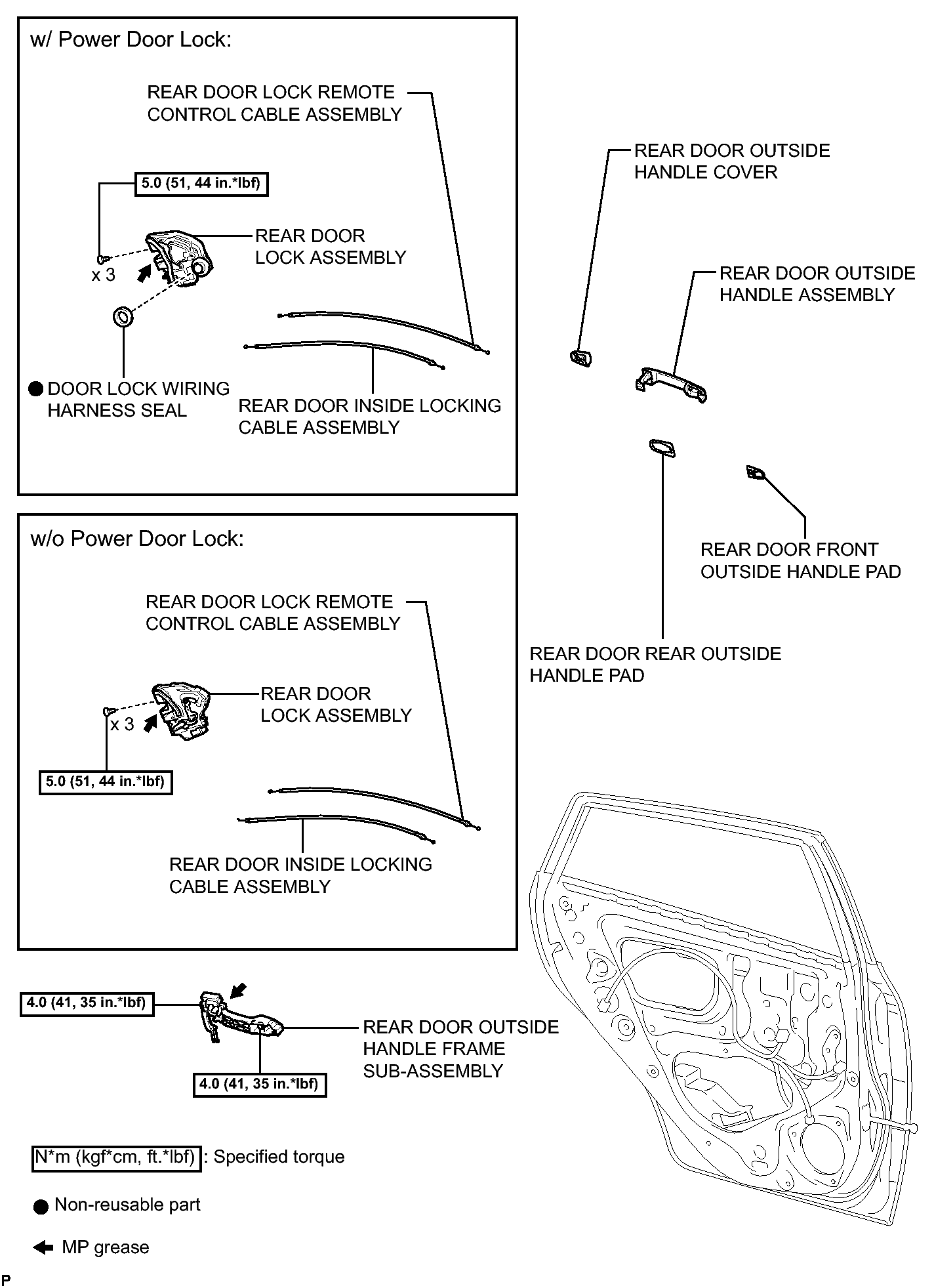

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 4)
GTY242320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (4 Of 4)
GTY242321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
