FRONT SEAT ASSEMBLY (w/ Seatback Board): Components: Illustration

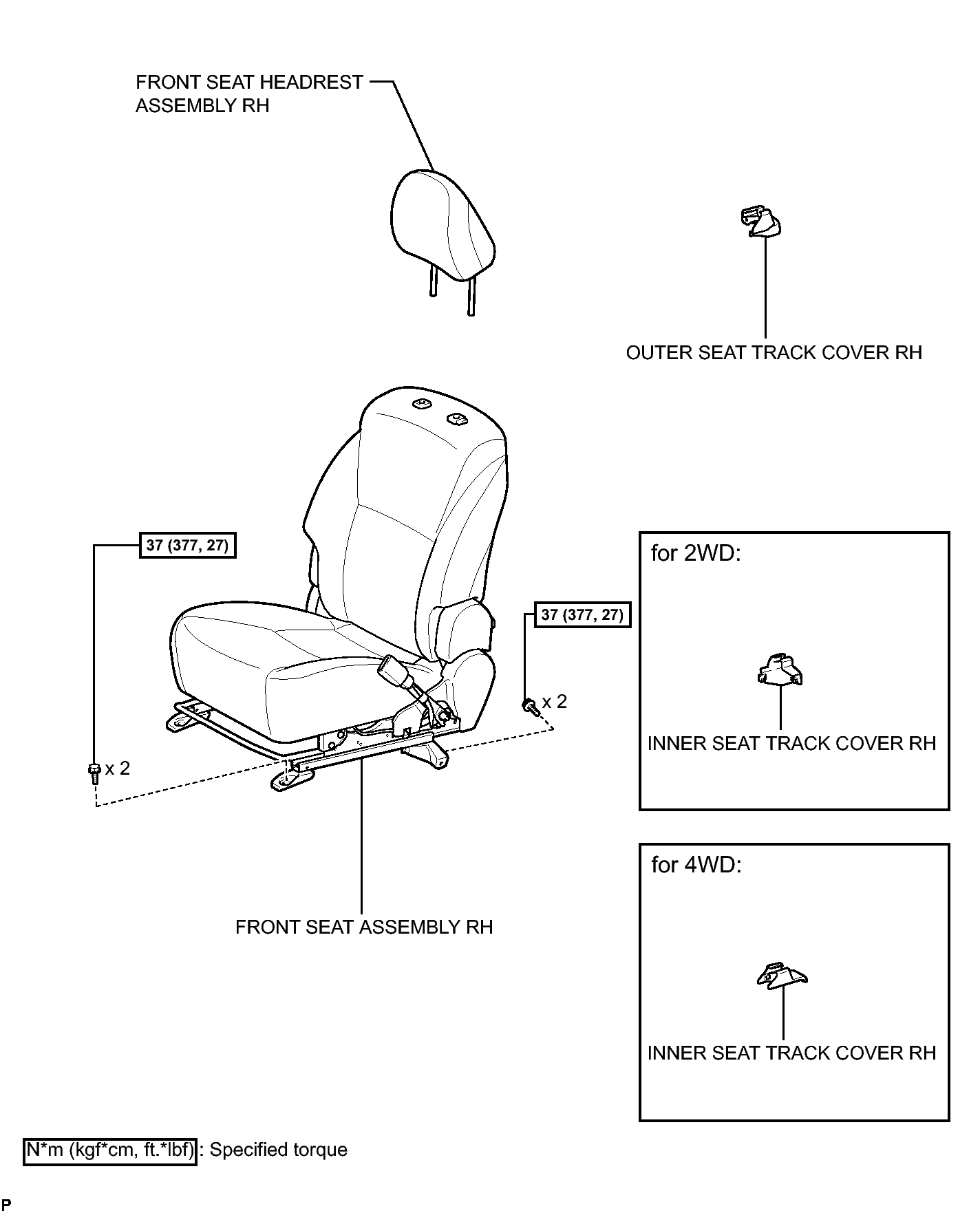

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/ Seatback Board) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

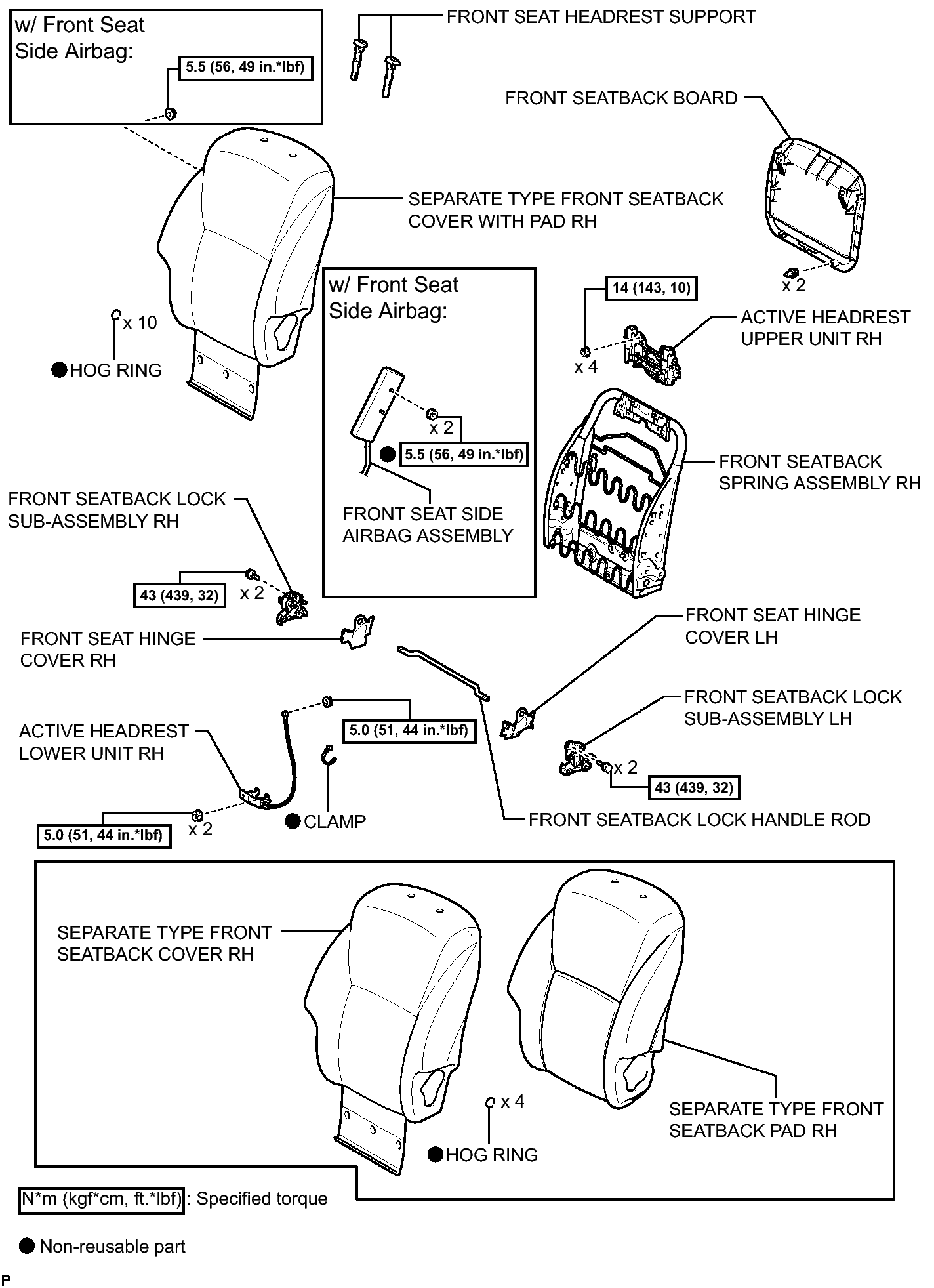

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/ Seatback Board) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

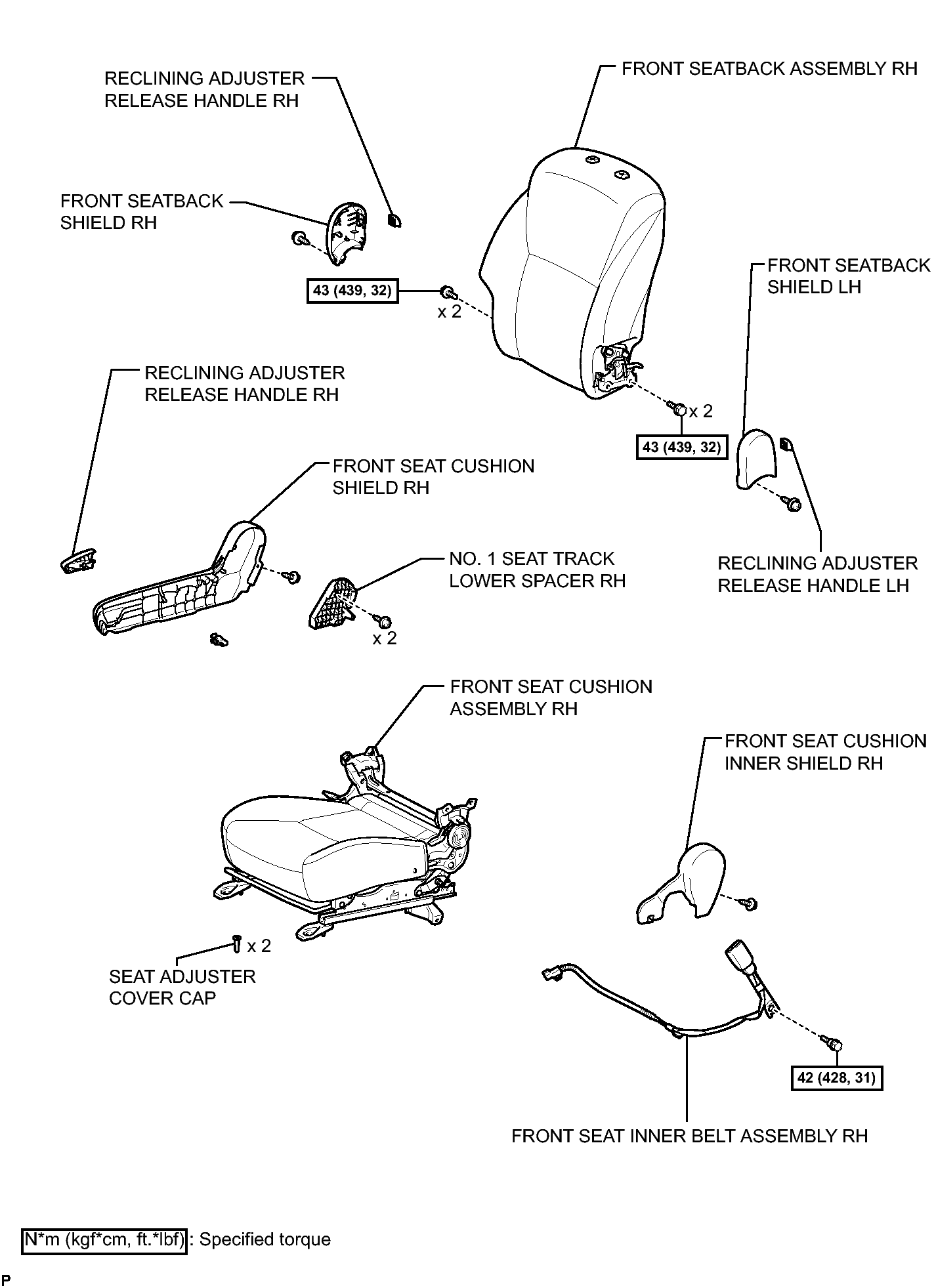

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/ Seatback Board) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

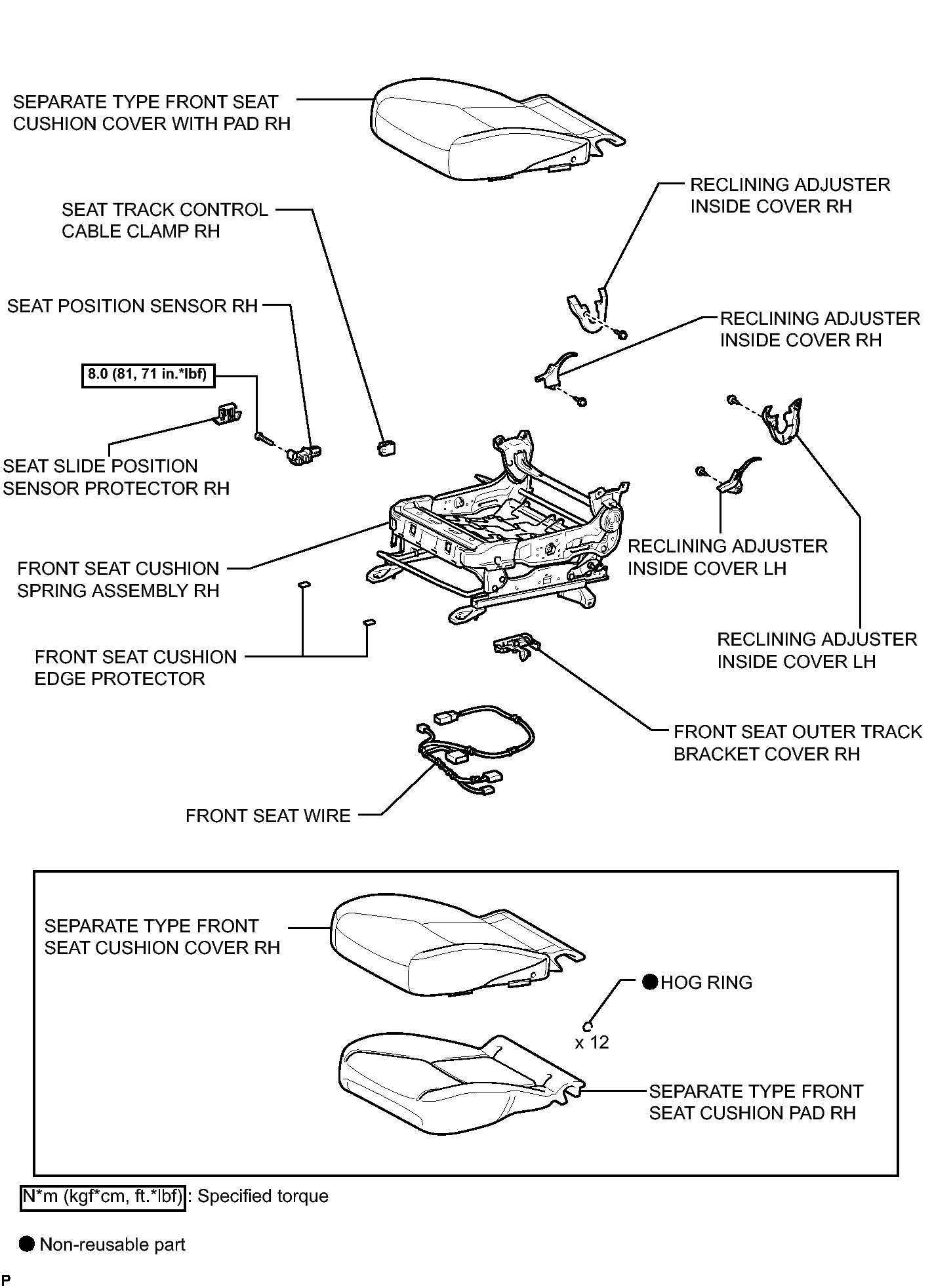

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/ Seatback Board) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
