Parts Location: Illustration

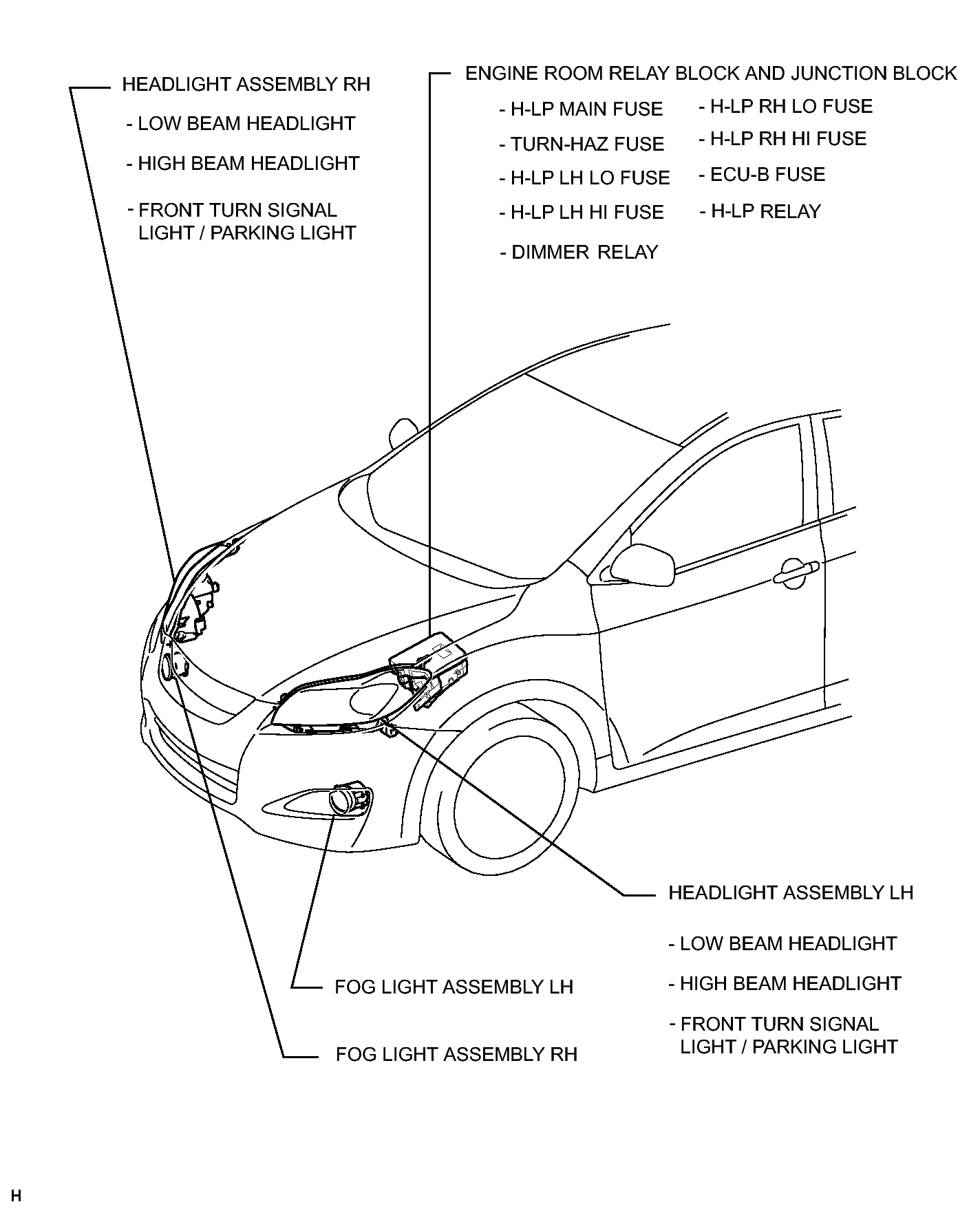

Fig 1: Lighting System Components Location - EXT (1 Of 3)
GTY247395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

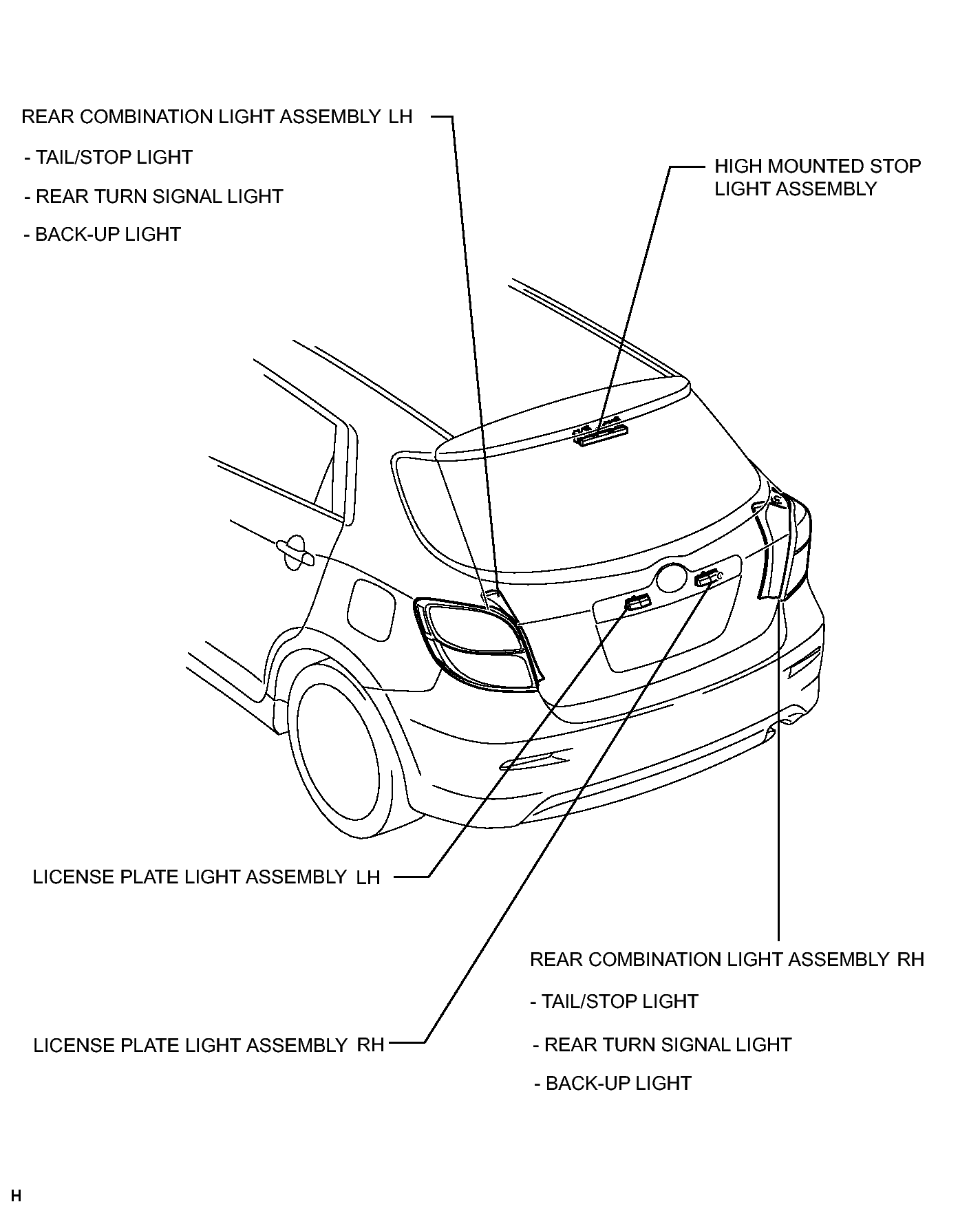

Fig 1: Lighting System Components Location - EXT (2 Of 3)
GTY247396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

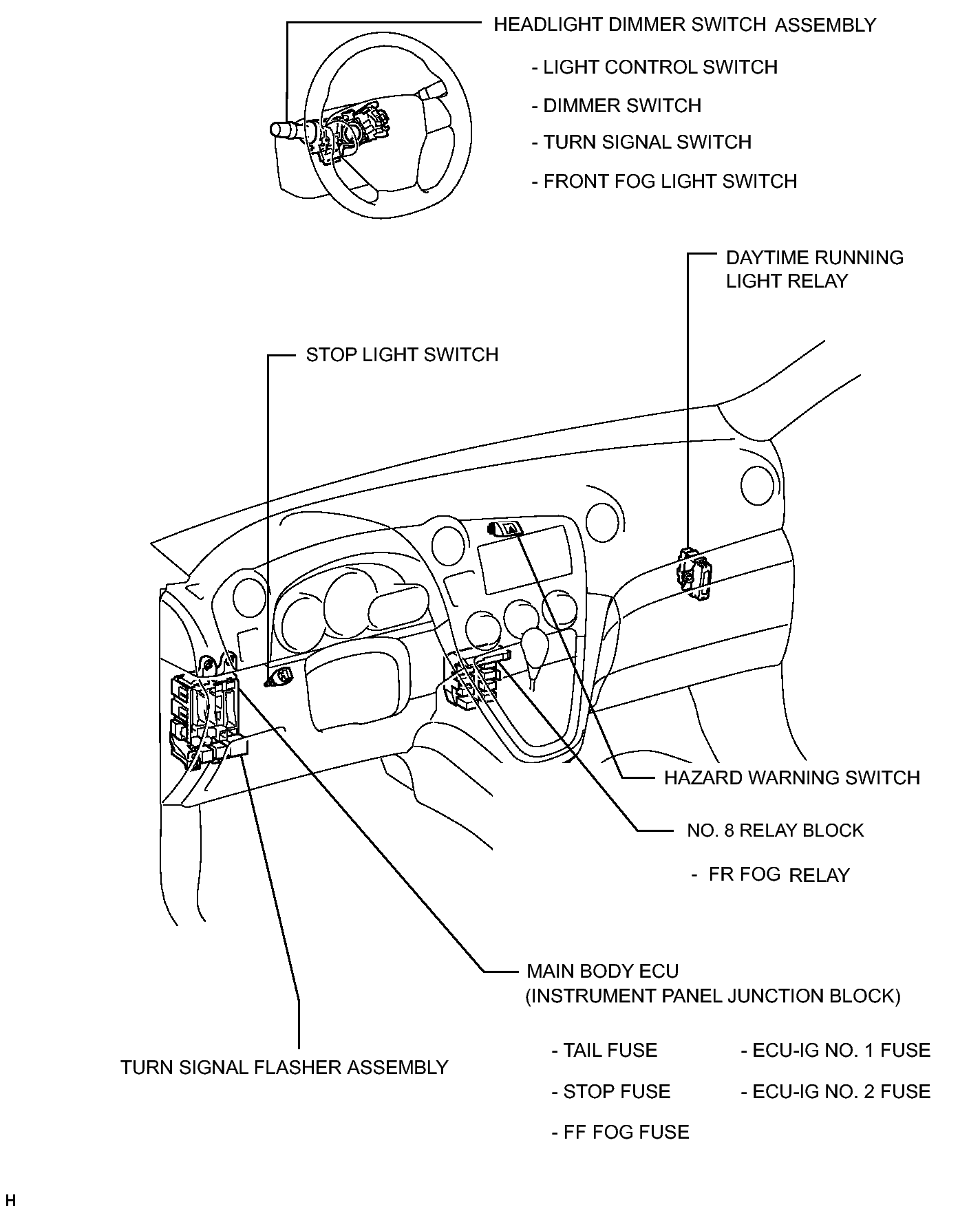

Fig 1: Lighting System Components Location - EXT (3 Of 3)
GTY292034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
