Installation

WIPER / WASHER: WASHER MOTOR (for Front Side): INSTALLATION

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Install the windshield washer motor and pump assembly.





(b) Connect the connector.

2. FILL WASHER JAR WITH WASHER FLUID

(a) Connect the washer hose to the windshield washer motor and pump assembly, and fill the washer jar with washer fluid.

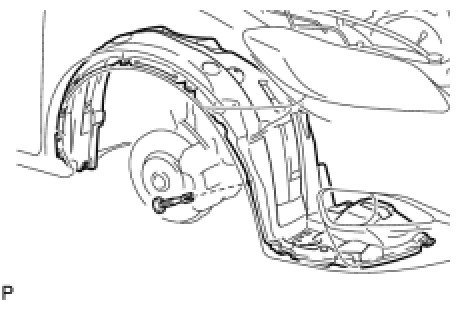

3. INSTALL FRONT FENDER LINER RH

(a) Install the front fender liner RH with 3 new grommets and the 4 screws.





(b) Install the 8 clips.

(c) Install the pin hold clip.





4. INSTALL FRONT WHEEL RH Installation
