Transmission Speed Sensor: Testing and Inspection

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: SPEED SENSOR: INSPECTION

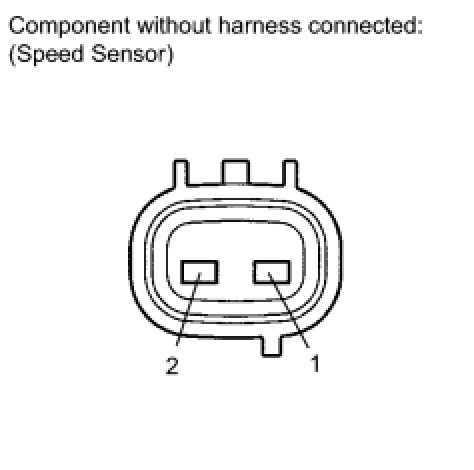

1. INSPECT SPEED SENSOR NT

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance value is not as specified, replace the speed sensor.

2. INSPECT SPEED SENSOR NC

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance value is not as specified, replace the speed sensor.
