Installation

WIPER / WASHER: WASHER LEVEL WARNING SWITCH: INSTALLATION

1. INSTALL LEVEL WARNING SWITCH ASSEMBLY

(a) Install the level warning switch assembly.

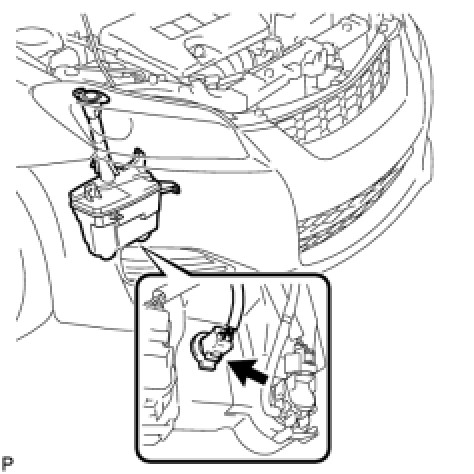

(b) Connect the connector.

2. FILL WASHER JAR WITH WASHER FLUID

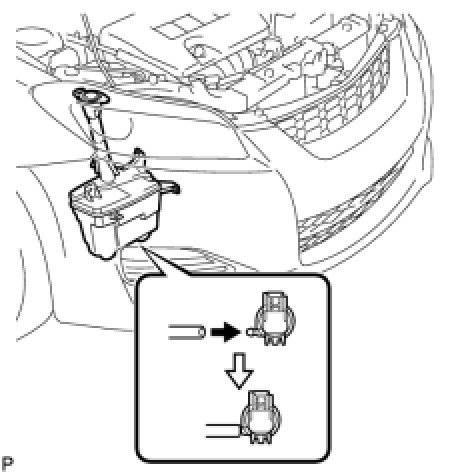

(a) Connect the washer hose to the windshield washer motor and pump assembly, and fill the washer jar with washer fluid.





3. INSTALL FRONT FENDER LINER RH Installation

4. INSTALL FRONT WHEEL RH Installation
