Power Mirror Switch: Testing and Inspection

MIRROR (EXT): OUTER MIRROR SWITCH: INSPECTION

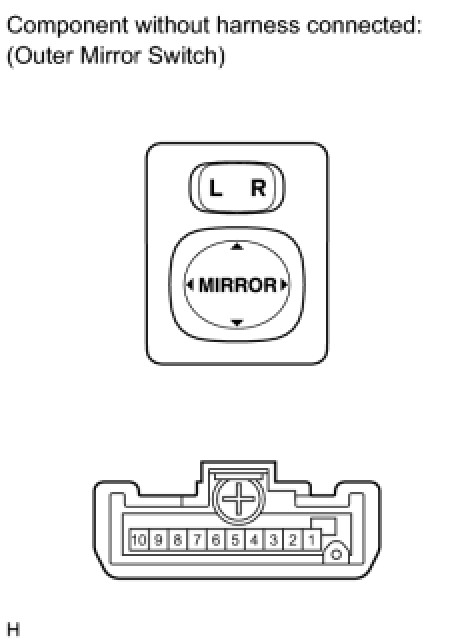

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY





(a) Inspect the L position of the left/right adjustment switch: Measure the resistance according to the value(s) in the table below.

Standard resistance (for left side):





If the result is not as specified, replace the switch assembly.

(b) Inspect the R position of the left/right adjustment switch: Measure the resistance according to the value(s) in the table below.

Standard resistance (for right side):





If the result is not as specified, replace the switch assembly.
