Installation

DOOR LOCK: DOOR CONTROL SWITCH: INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)

(a) Install the power window regulator master switch assembly with the 3 screws.





2. INSTALL DOOR CONTROL SWITCH ASSEMBLY (for Front Passenger Side)

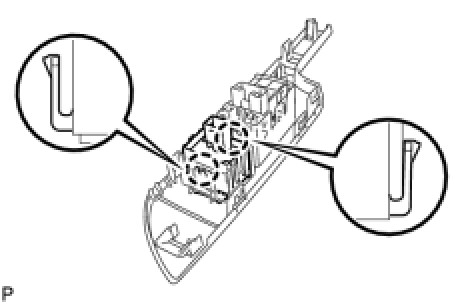

(a) Engage the 2 claws and install the door control switch assembly.





3. INSTALL FRONT ARMREST UPPER BASE PANEL Reassembly
