Disposal

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING VALVE: DISPOSAL

HINT
The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.

1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

(a) Using the tip of a screwdriver, pry off the back cover.

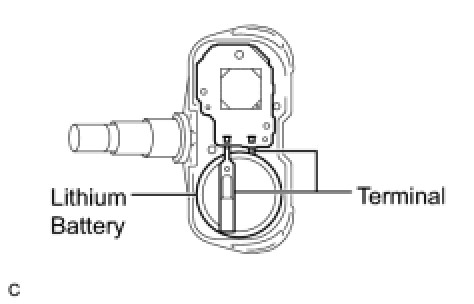

(b) Cut the 2 terminals that connect the battery to the base board to remove the battery.





HINT
The battery and base board are covered with silicone.
