Installation





LIGHTING (EXT): HAZARD WARNING SWITCH: INSTALLATION

1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

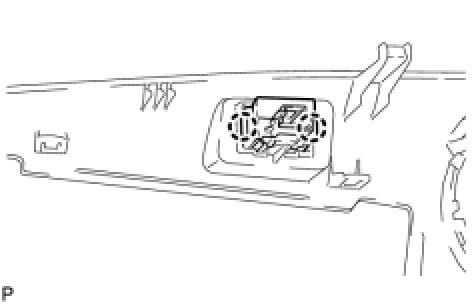

(a) Engage the 2 claws and install the hazard warning signal switch assembly.





2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
