Front Door Courtesy Switch

LIGHTING (INT): FRONT DOOR COURTESY SWITCH: INSPECTION

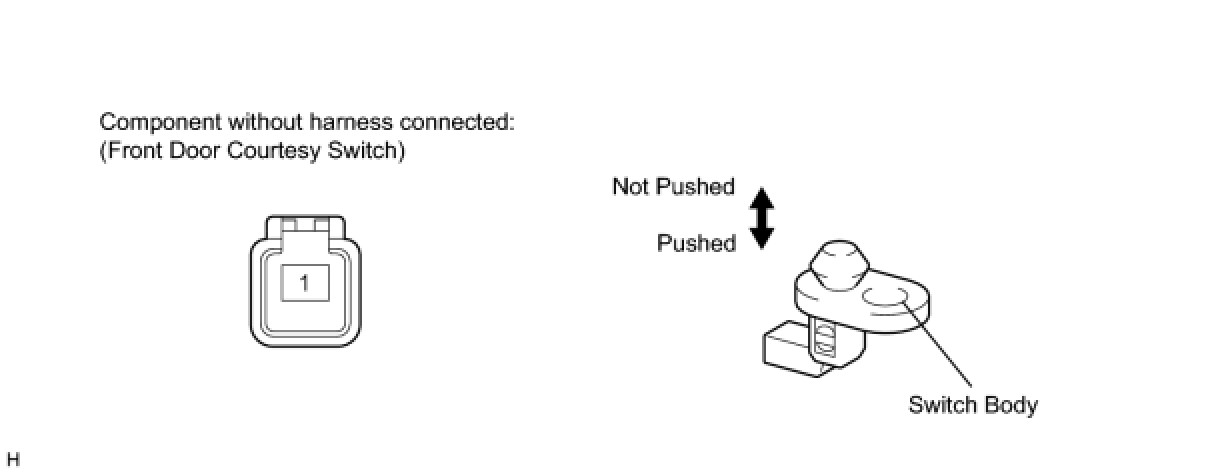

1. INSPECT FRONT DOOR COURTESY SWITCH

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the switch.
