Brake Light Switch: Testing and Inspection

LIGHTING (EXT): STOP LIGHT SWITCH: INSPECTION

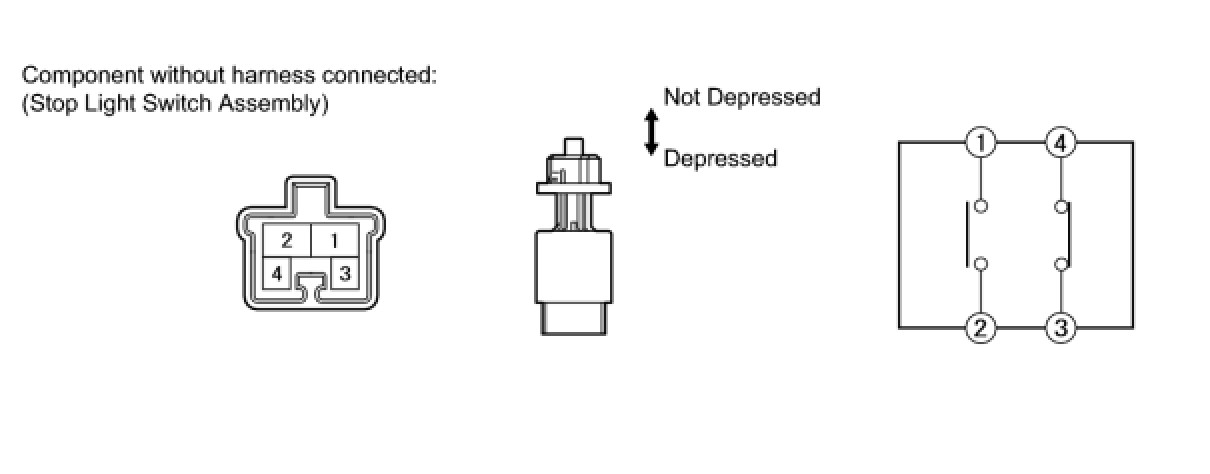

1. INSPECT STOP LIGHT SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the stop light switch assembly.
