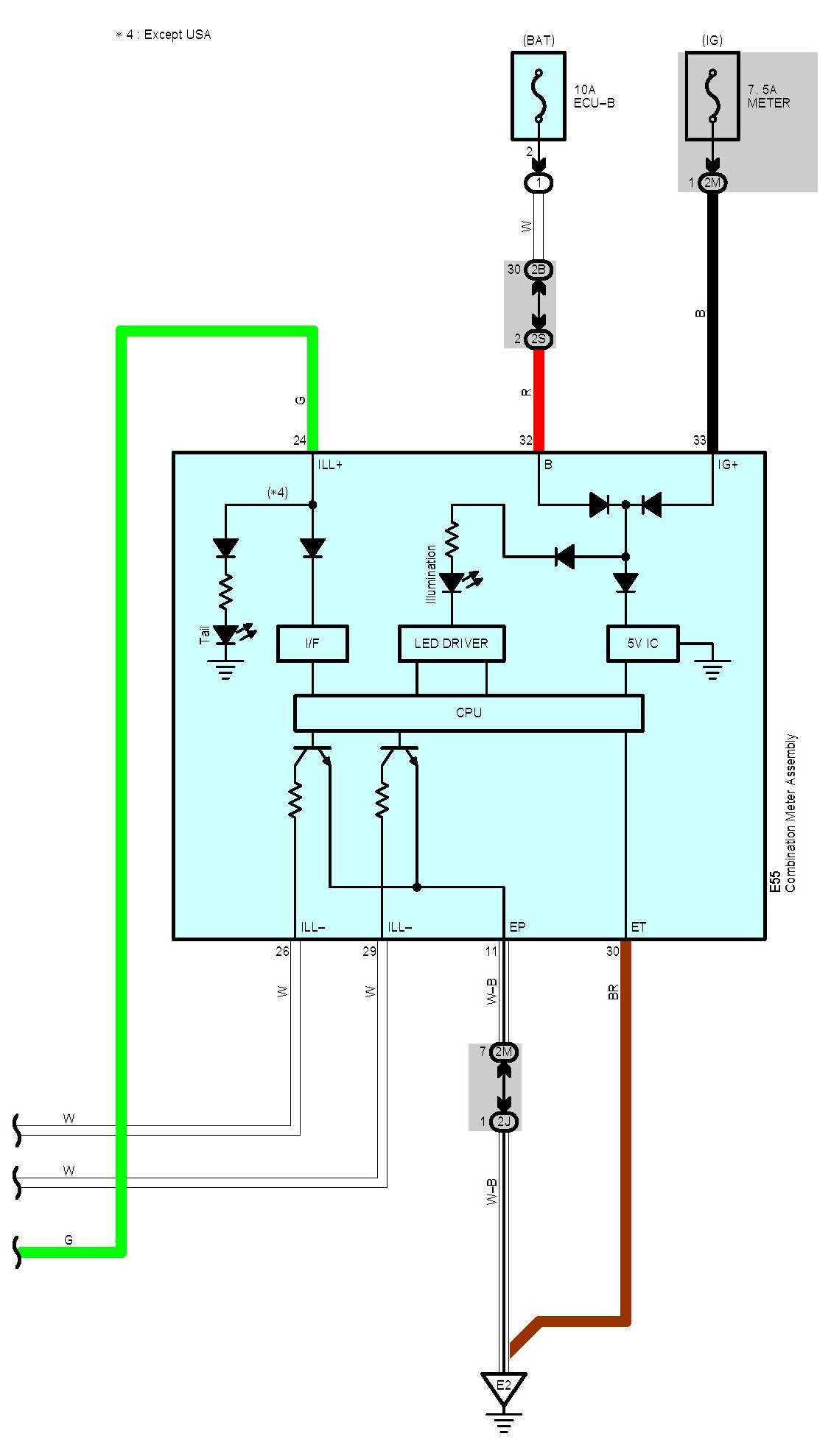

Instrument Cluster / Carrier

Taillight and Illumination Part 1:

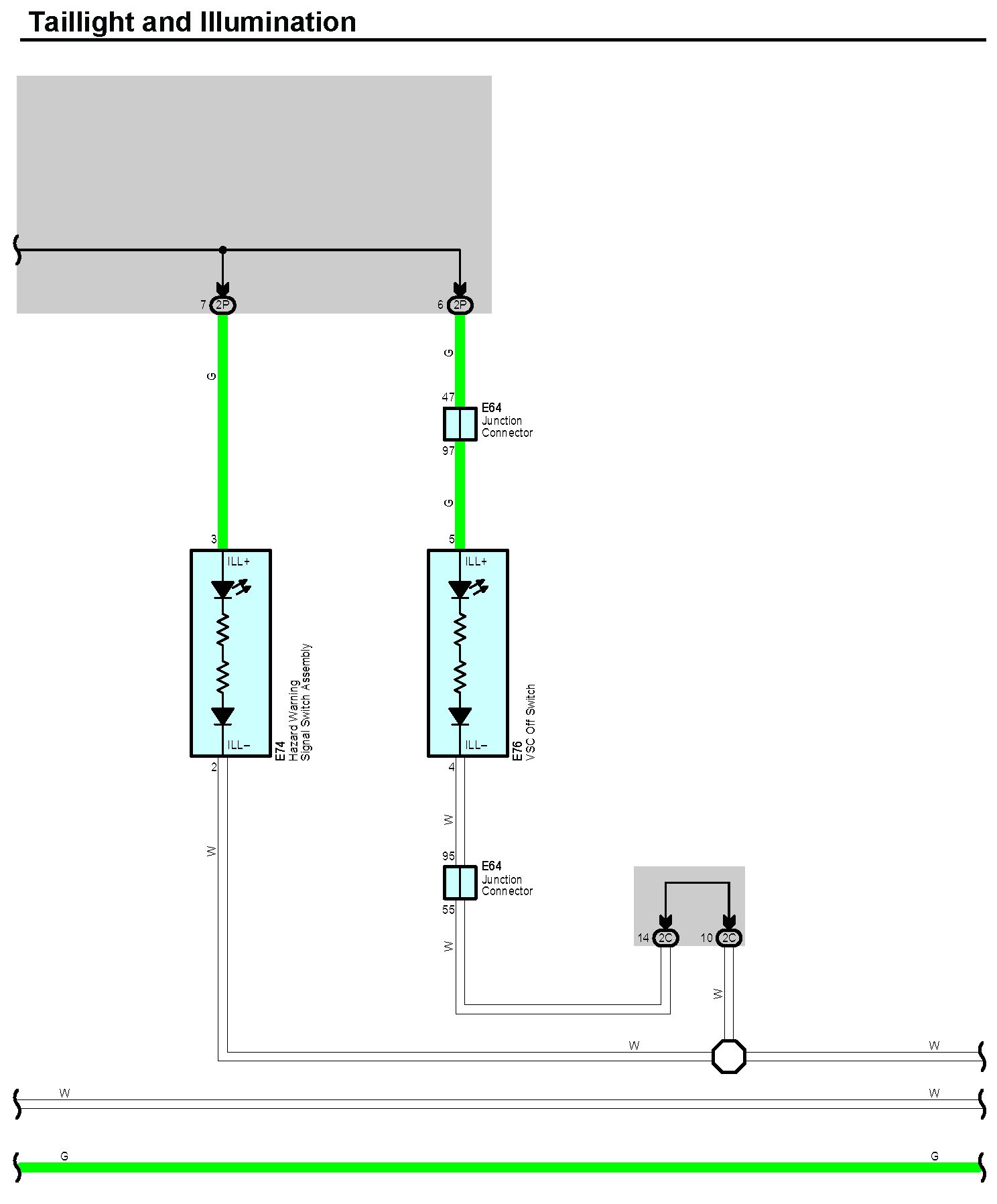

Taillight and Illumination Part 2:

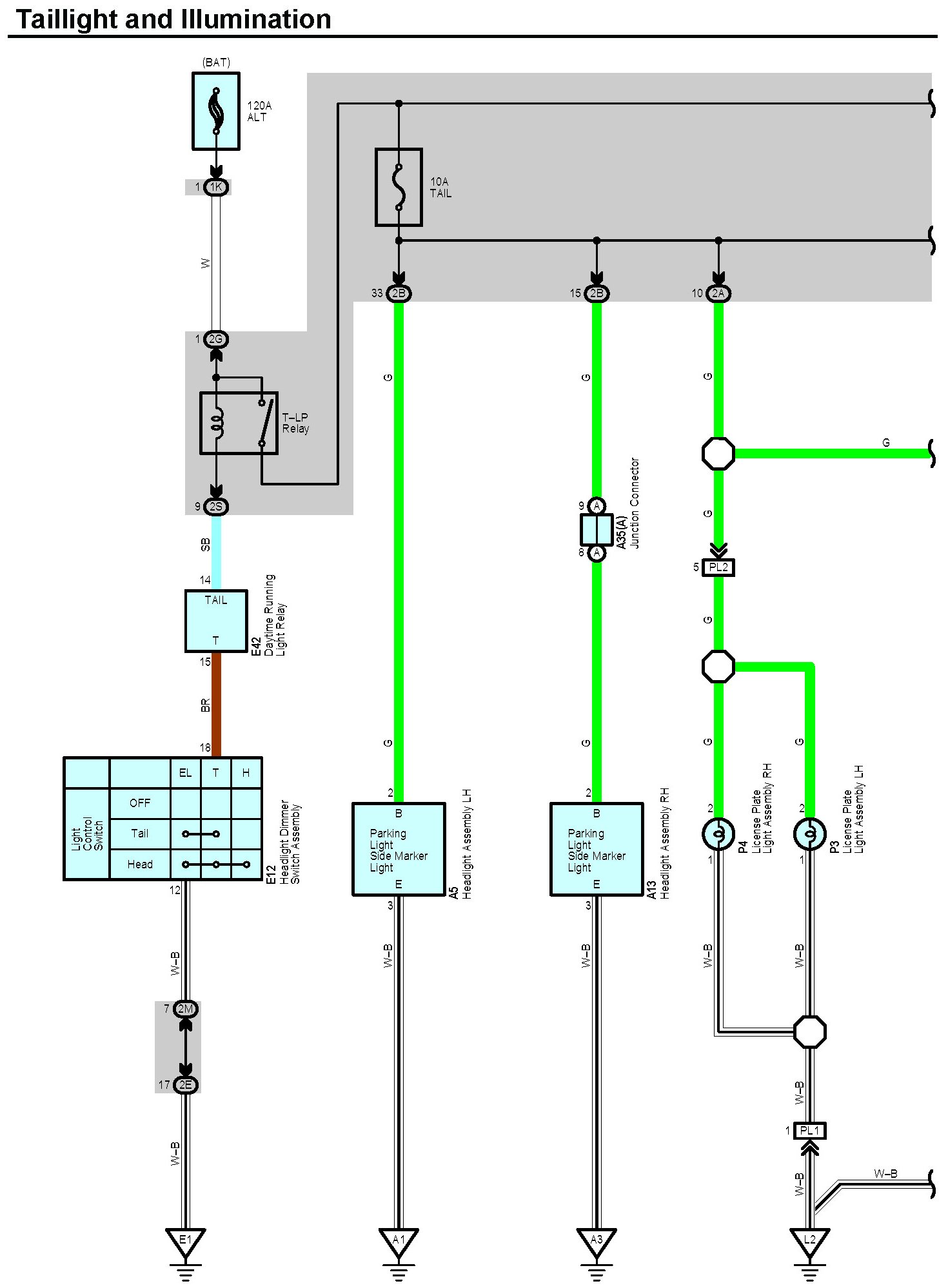

Taillight and Illumination Part 3:

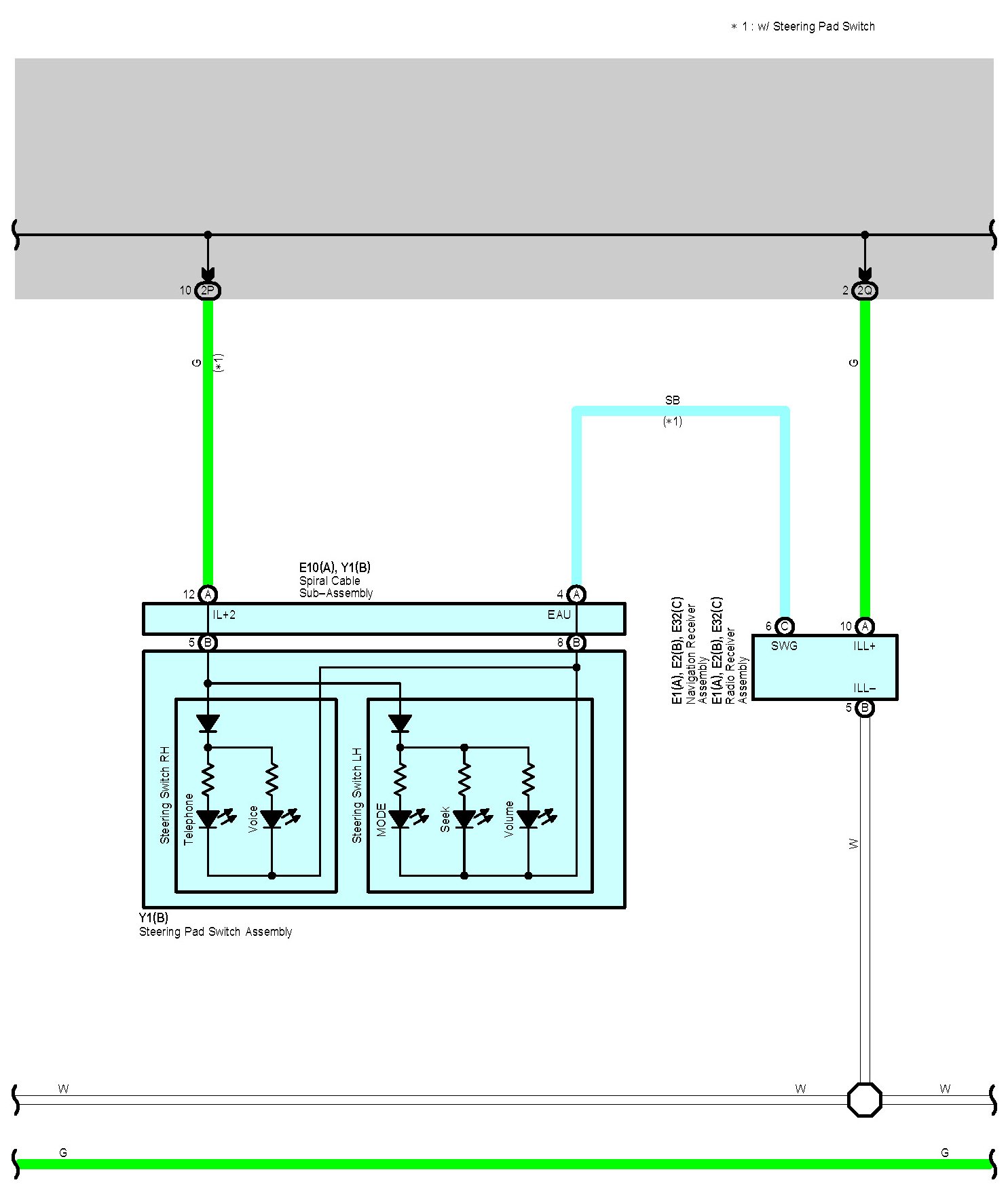

Taillight and Illumination Part 4:

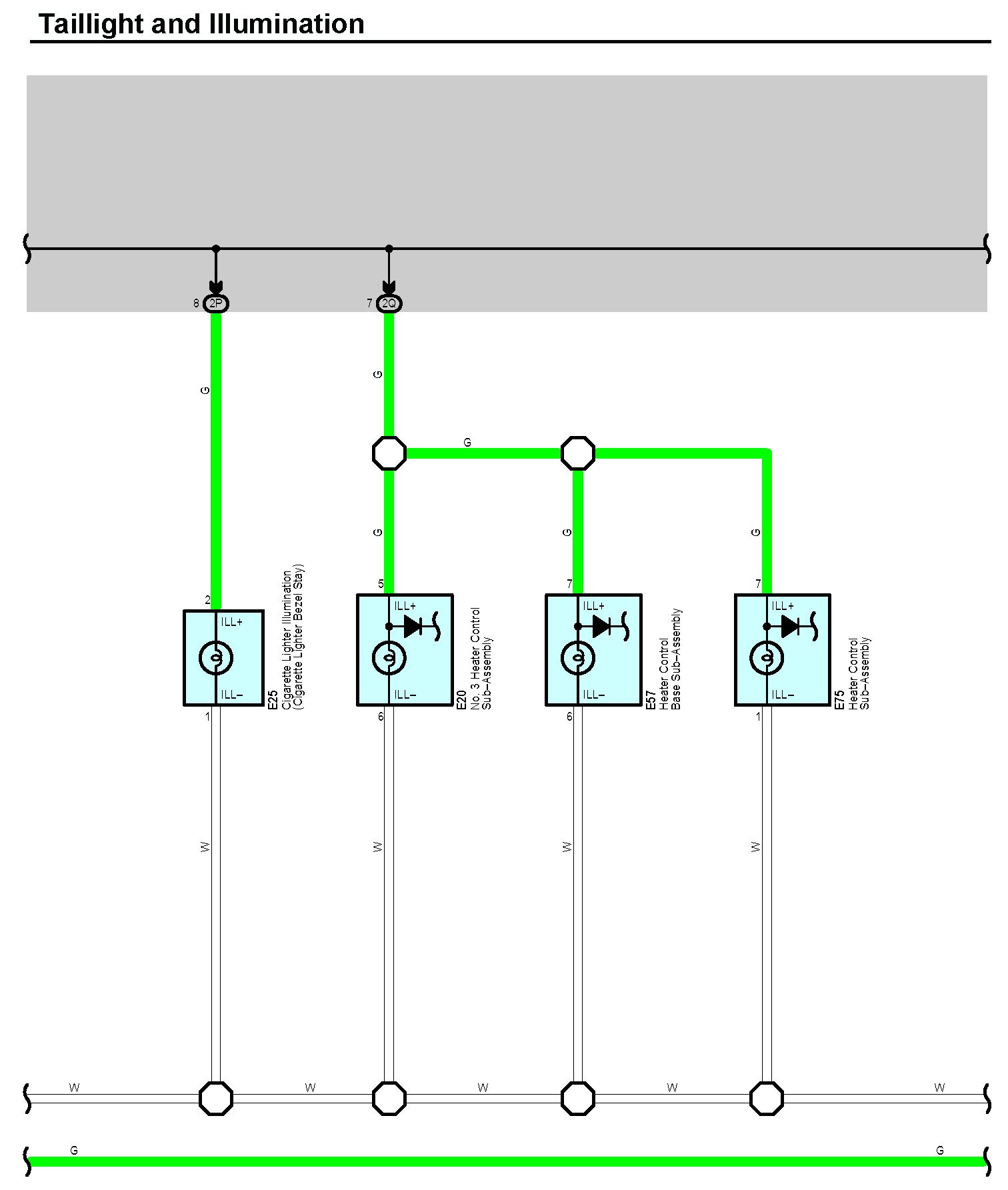

Taillight and Illumination Part 5:

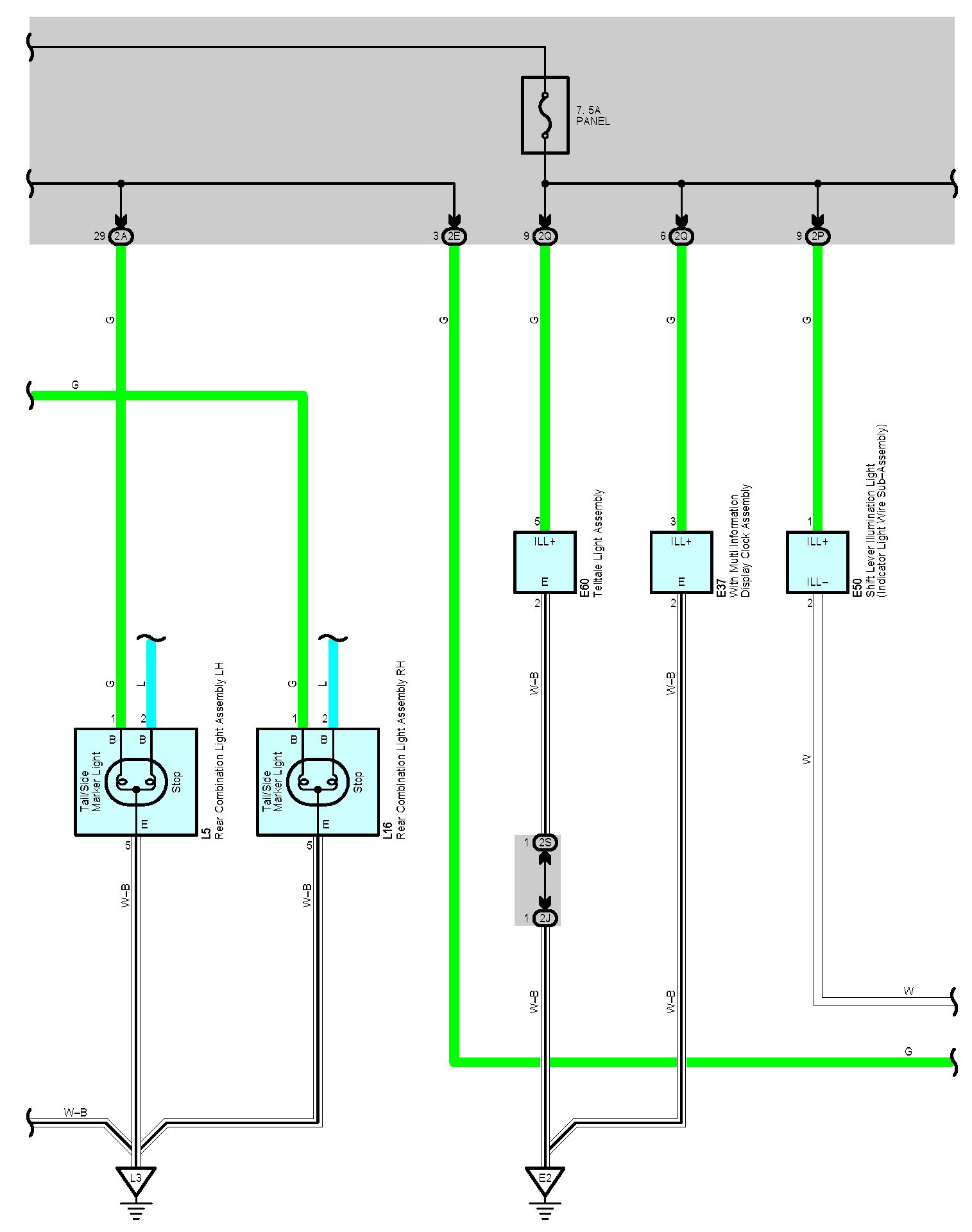

Taillight and Illumination Part 6:

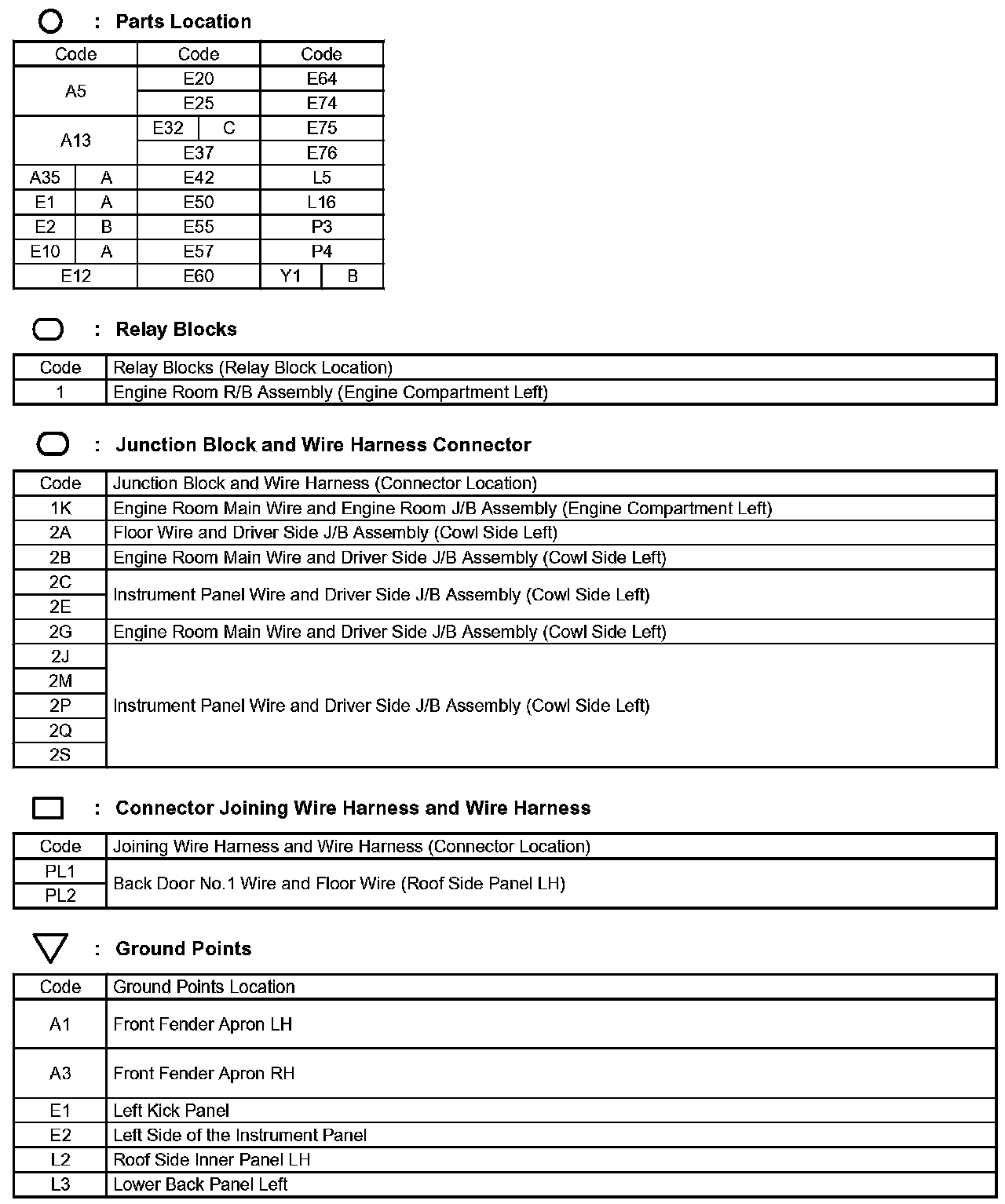

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
